DALI SUB E-12 F Black Satin | Active Subwoofer

52971
CHF849.00 Tax included
Supplier stock – typically 4 to 7 days

DALI SUB E-12 F active subwoofer, 12-inch aluminium driver and 220 W of amplification. Two satin finishes.

Color : White
Quantity
Supplier stock – typically 4 to 7 days

DALI SUB E-12 F subwoofer in satin black with the grille fitted

Twelve-Inch Woofer

The SUB E-12 F carries a 12-inch long-throw driver with an aluminium cone. The larger diameter moves more air for the same excursion, which keeps the driver further from its limits at a given level. Response reaches down to 28 Hz at plus or minus 3 dB.

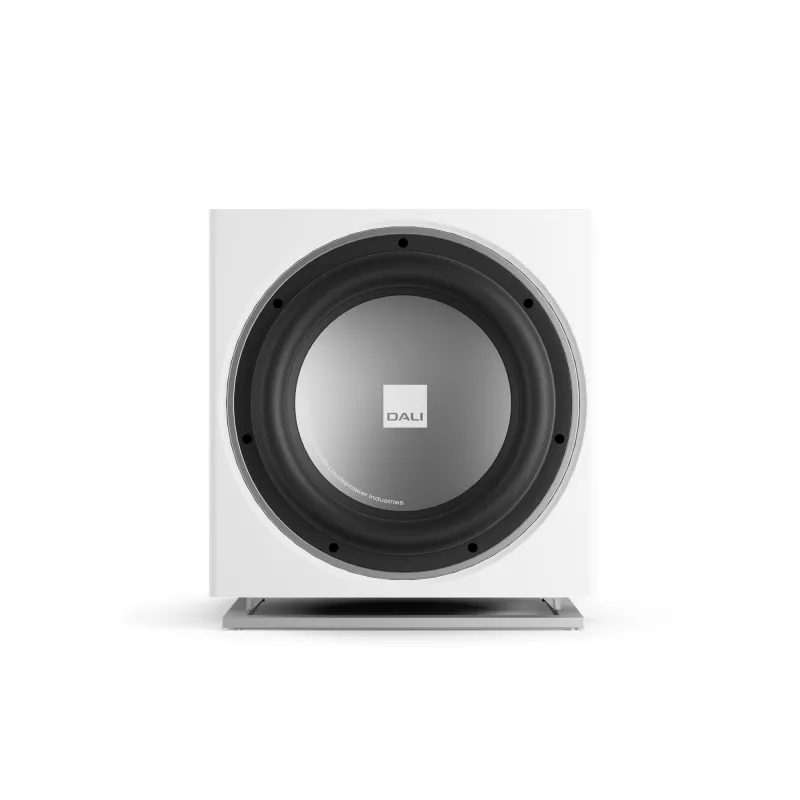

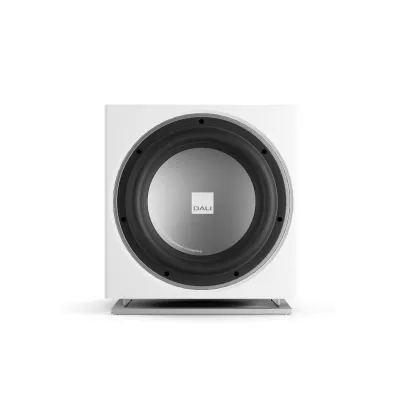

The cabinet seen from the front with the grille removed

112 dB at One Metre

The built-in amplifier gives 170 W RMS continuous and 220 W maximum. Maximum output reaches 112 dB at one metre, one decibel more than the SUB E-9 F for nine hertz more extension. This is the choice for a room above thirty square metres.

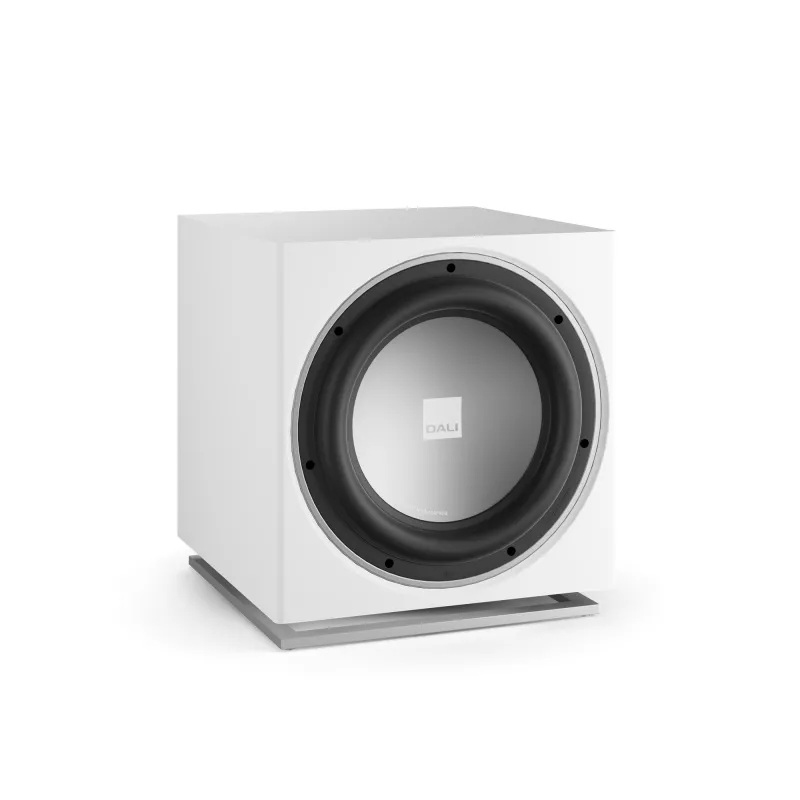

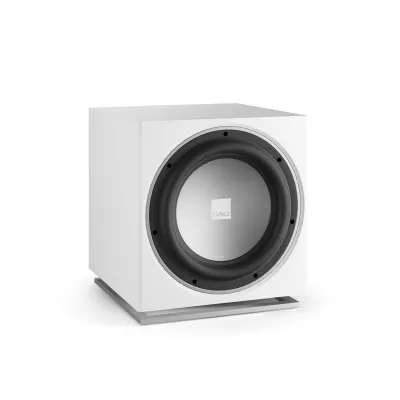

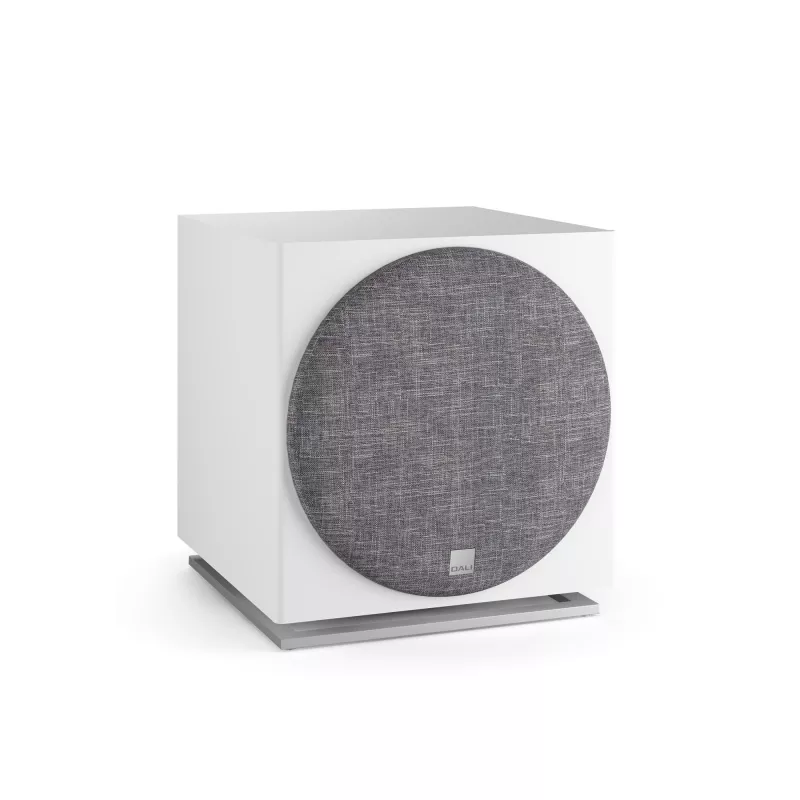

Satin white finish, three-quarter view

Controls

The low-pass filter covers 40 to 120 Hz. The RCA inputs take filtered stereo or mono LFE, at a 25 kilohm input impedance. Maximum power consumption is 250 W.

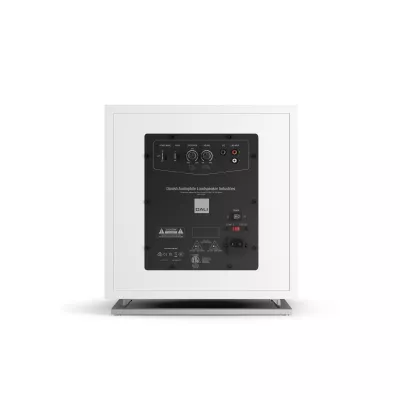

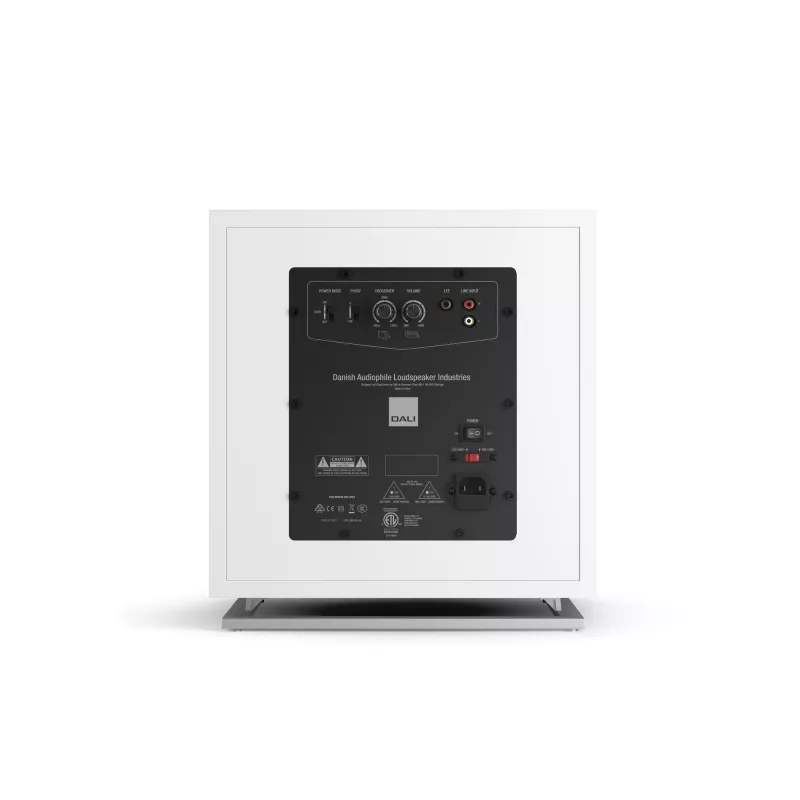

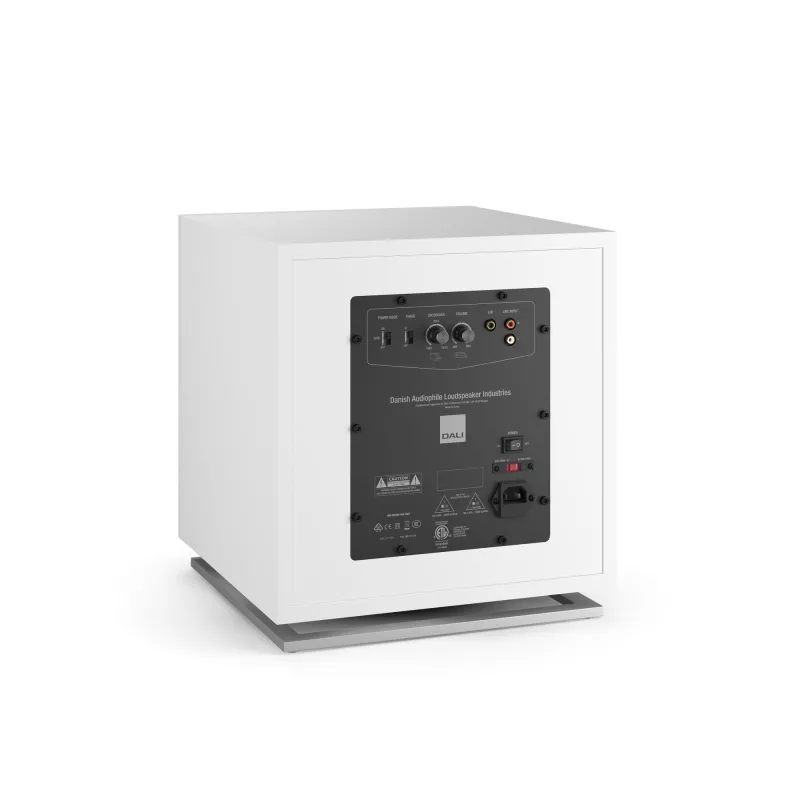

Rear view of the control panel

Cabinet

370 x 340 x 380 mm for 15.3 kg: the cabinet stays movable while keeping enough mass not to vibrate. Two satin finishes, black and white, with a magnetic grille.

52971

Data sheet

Product Type
Subwoofer
Brand
DALI
Output power
220 W
Connections
Low-pass filtered stereo RCA, mono LFE
Power consumption
250 W
Woofer
1 x 12-inch long-throw
Frequency response
28 Hz - 190 Hz (±3 dB)
Maximum SPL
112 dB
Power handling
170 W
Width
34.0 cm
Depth
38.0 cm
Height
37.0 cm
Unit weight
15.3 kg

Specific References

EAN13
5703120112183
