DALI SUB E-9 F Black Satin | Active Subwoofer

52967
CHF649.00 Tax included
24‑hour delivery

DALI SUB E-9 F active subwoofer, 9-inch aluminium driver and 220 W of amplification. Two satin finishes.

Color : Black
Quantity
In stock

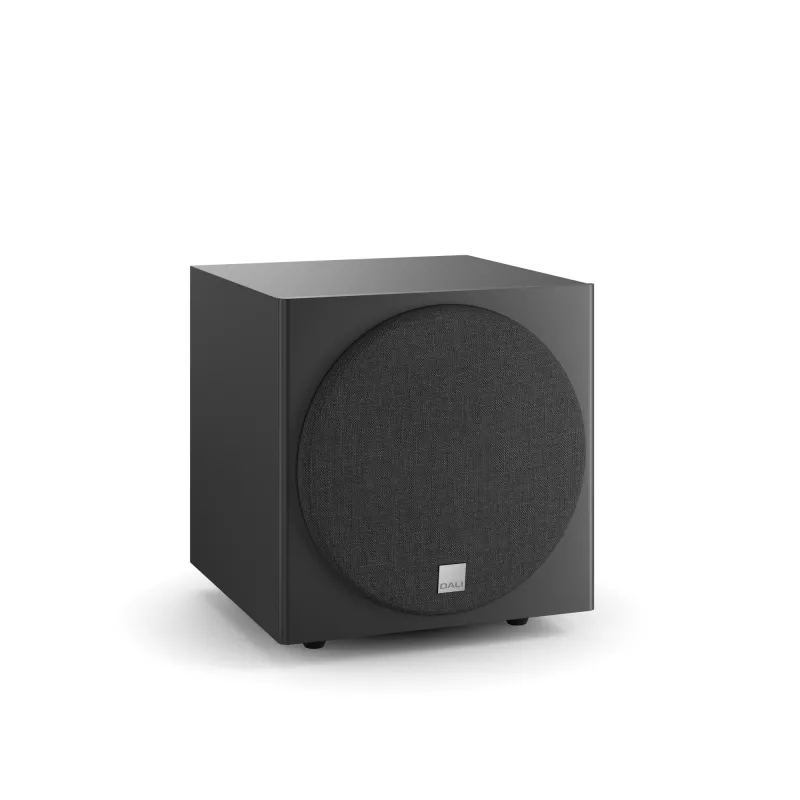

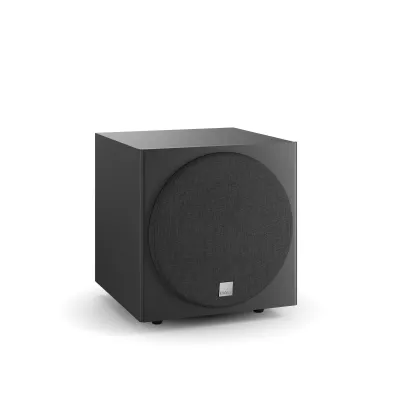

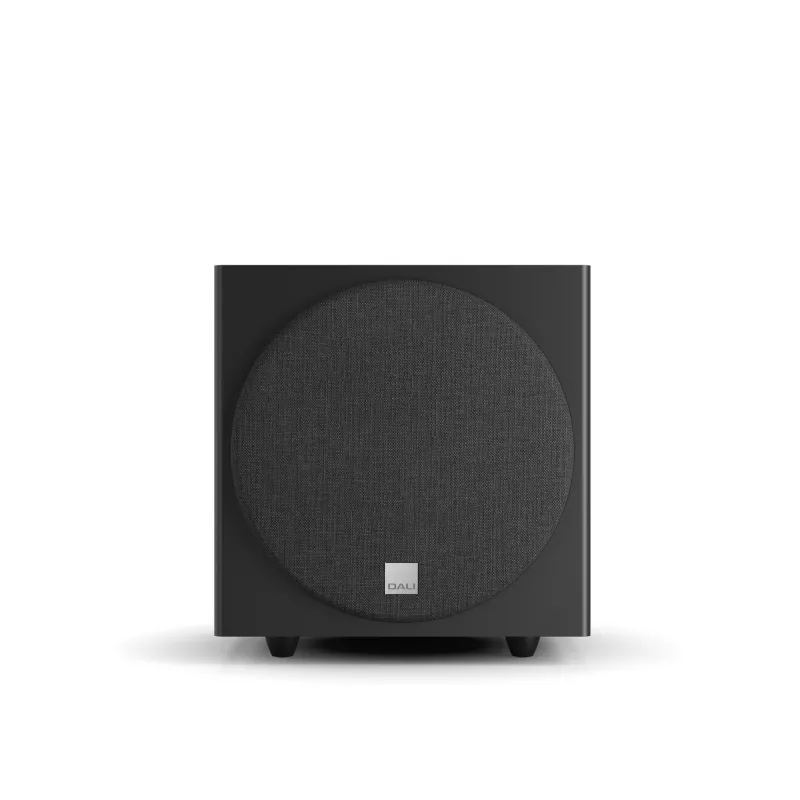

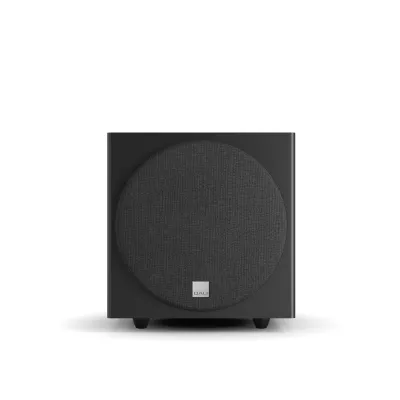

DALI SUB E-9 F subwoofer in satin black with the grille fitted

Nine-Inch Woofer

The SUB E-9 F is built around a 9-inch long-throw driver with an aluminium cone. The stiffness of aluminium limits cone flex at large excursions, where a paper cone starts to bend. Response reaches down to 37 Hz at plus or minus 3 dB.

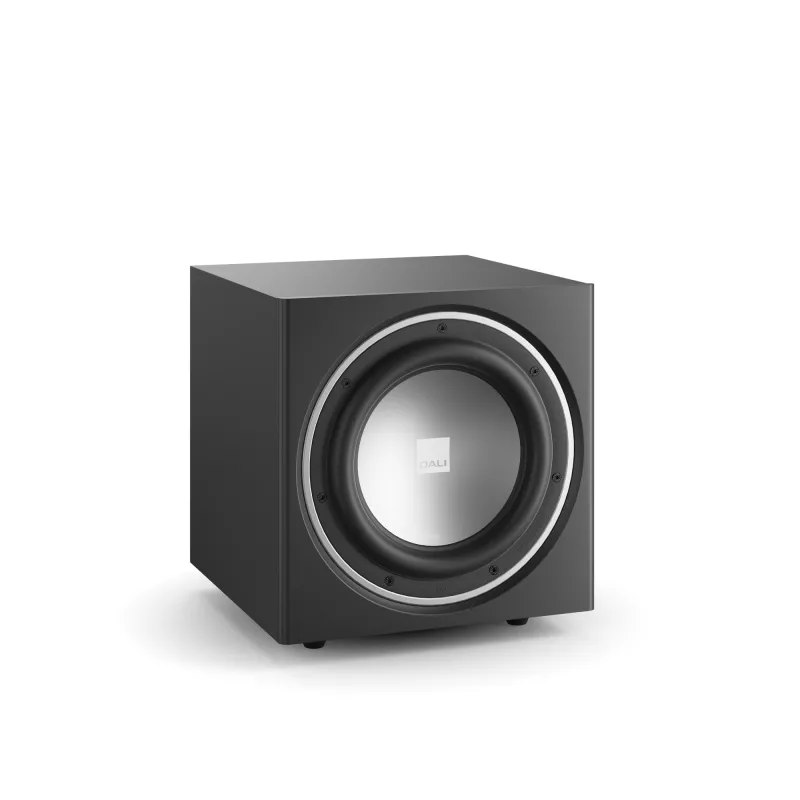

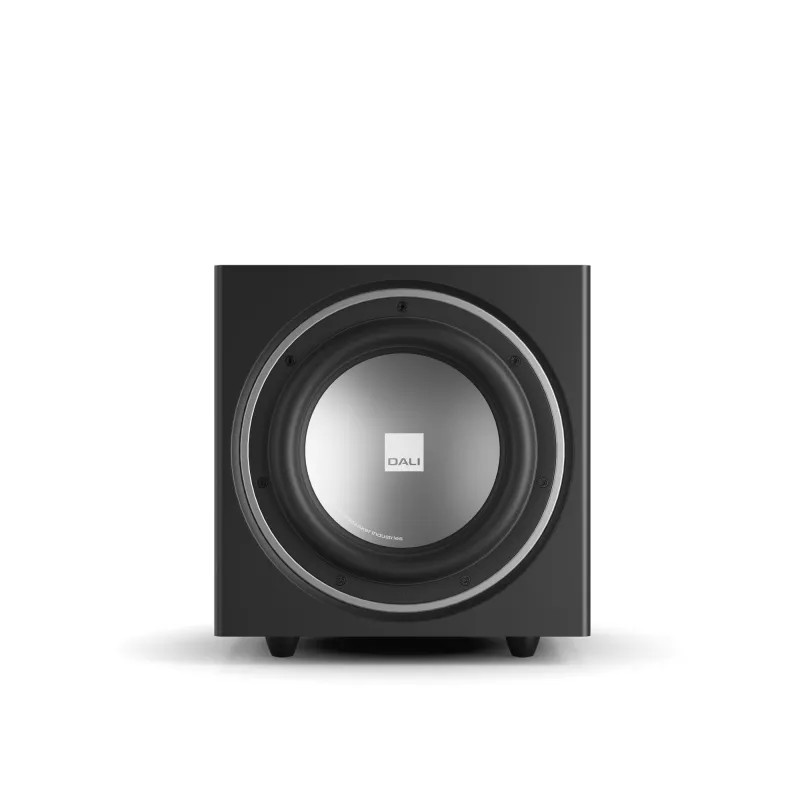

The cabinet seen from the front with the grille removed

220 Watts

The built-in amplifier delivers 170 W RMS continuous and 220 W maximum, for 111 dB at one metre. That is the level needed to support a pair of bookshelf speakers in a living room without pushing the cabinet to its limits.

Satin white finish, three-quarter view

Crossover and Inputs

The low-pass filter adjusts from 40 to 120 Hz, covering the usual handover points. Inputs are RCA, filtered stereo or mono LFE, with a 25 kilohm input impedance. It connects to a home cinema receiver or a stereo integrated without an adapter.

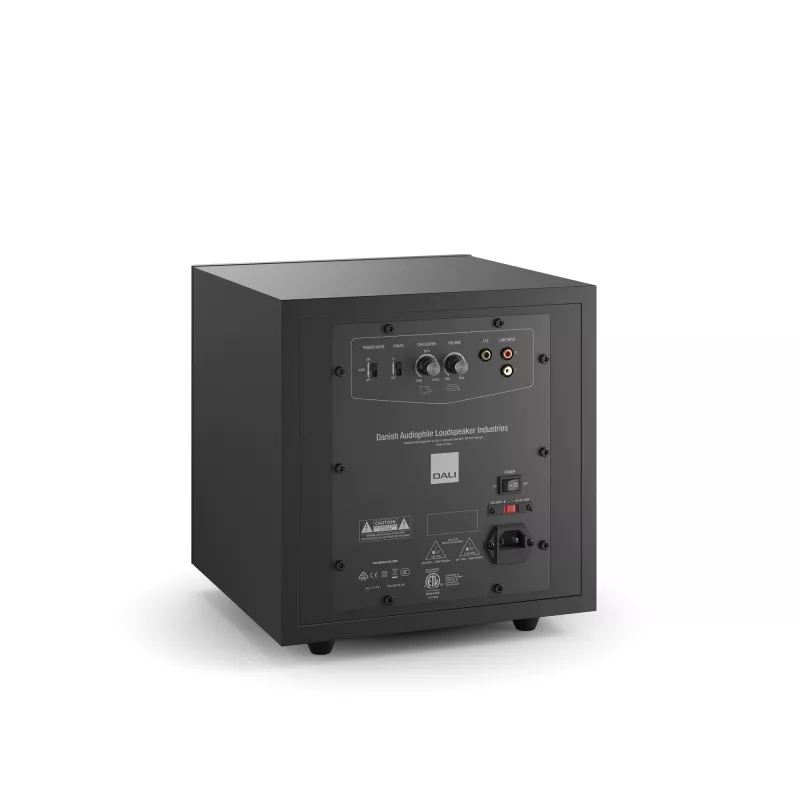

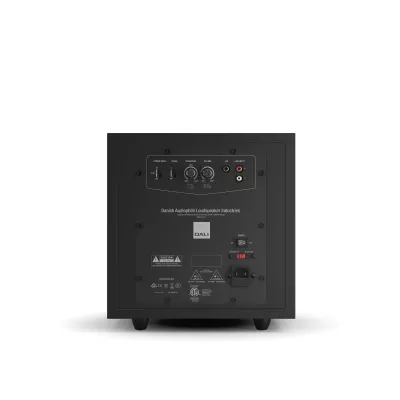

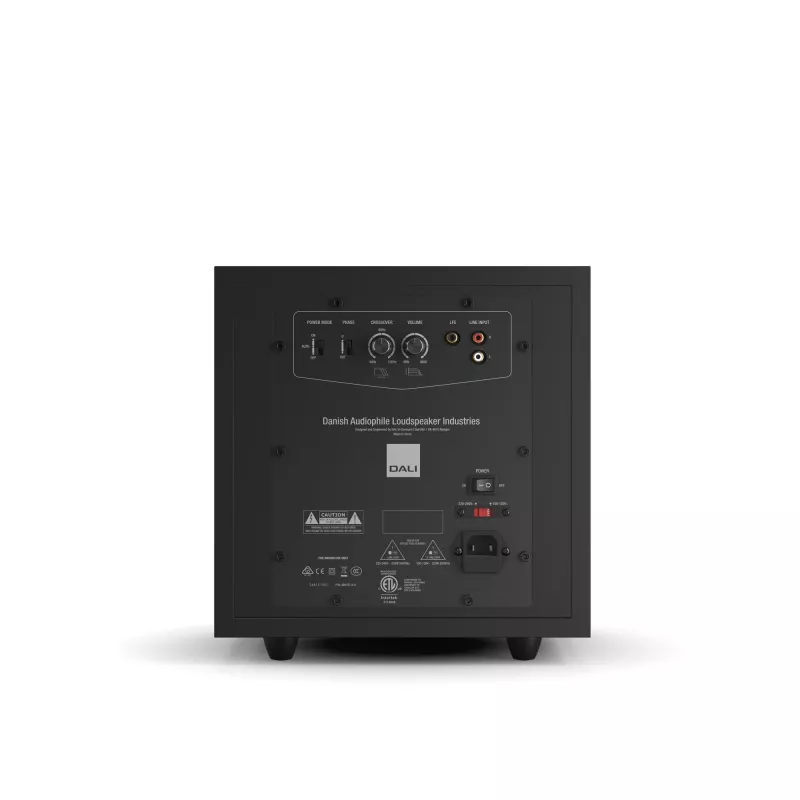

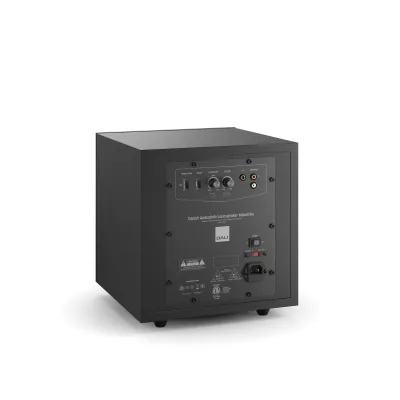

Rear view of the control panel

Compact Format

The cabinet measures 307 x 287 x 310 mm and weighs 11.8 kg: it slides against a wall or into a corner without taking a piece of furniture's space. Two satin finishes are offered, black and white, with a magnetic grille.

52967

Data sheet

Product Type
Subwoofer
Brand
DALI
Output power
220 W
Connections
Low-pass filtered stereo RCA, mono LFE
Power consumption
250 W
Woofer
1 x 9-inch long-throw
Frequency response
37 Hz - 200 Hz (±3 dB)
Maximum SPL
111 dB
Power handling
170 W
Width
28.7 cm
Depth
31.0 cm
Height
30.7 cm
Unit weight
11.8 kg

Specific References

EAN13
5703120112169
