Ruark Audio RS1 | Active 100 W Class D subwoofer

Name: Ruark Audio RS1 | Active 100 W Class D subwoofer
Brand: Ruark audio
Price: 399.00 CHF
Availability: BackOrder

Reference 71366

CHF399.00 Tax included

Supplier stock – typically 4 to 7 days

Ruark Audio RS1, active subwoofer compatible with the R3S, MR1 and R410. 100 W Class D amplifier, 165 mm driver, passive radiator and adjustable crossover frequency from 50 to 180 Hz.

Color : Walnut

Walnut
Black

Quantity

Add to wishlist

Usual supplier delivery time of 4 to 7 days

Description
Product Details

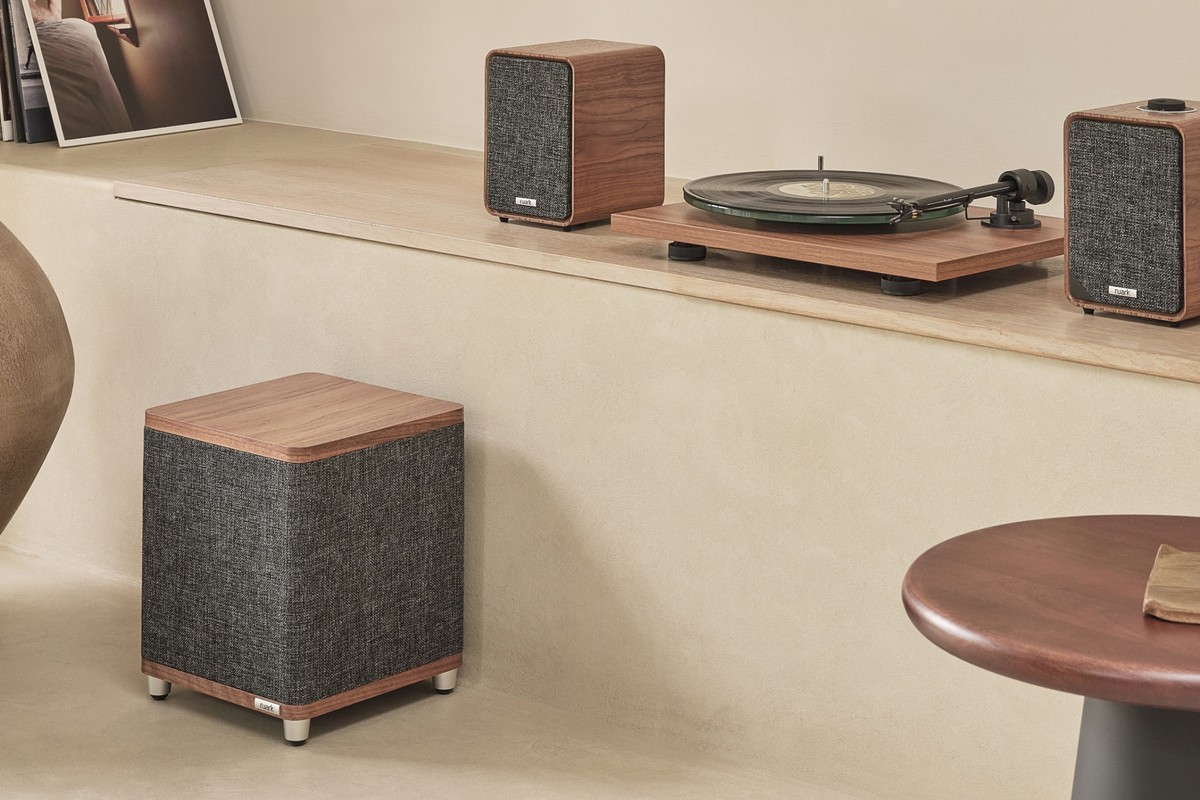

The RS1 subwoofer in walnut standing on the floor beneath a console, with two MR1 speakers and a turntable above

100 W Class D amplifier

A 100 W rated Class D amplifier powers the RS1. Standby and wake-up are automatic, with 0.5 W in standby and 7 W in typical use. The cabinet measures 270 × 250 × 250 mm (H × W × D) and weighs 6.7 kg. The RS1 also includes a soft clip protection filter.

Exploded view of the cabinet showing the driver and feet

Passive radiator cabinet

The 9.5-litre cabinet houses a 165 mm passive radiator in addition to the bass driver. It is tuned to 45 Hz. Ruark quotes a typical in-room response of 35 to 180 Hz.

Long-throw bass driver

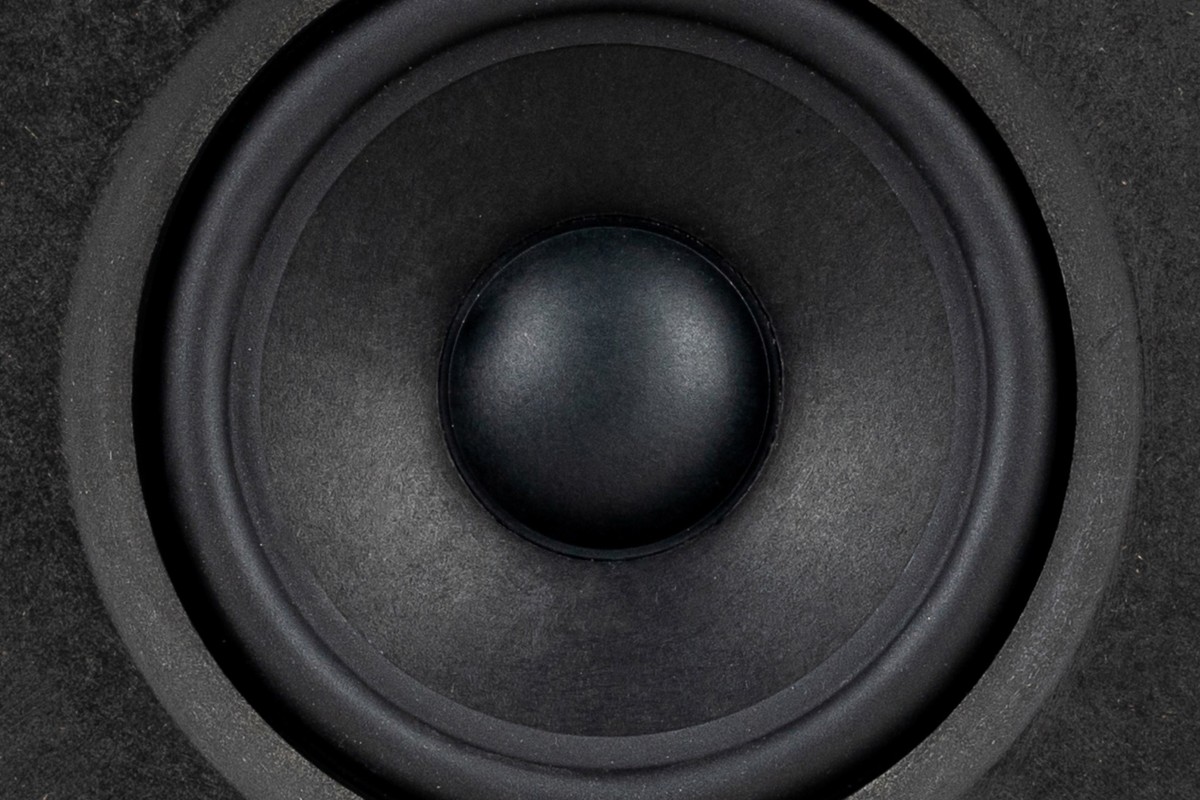

The bass driver measures 165 mm (6.5 inches). It is a Ruark long-throw design with a large excursion.

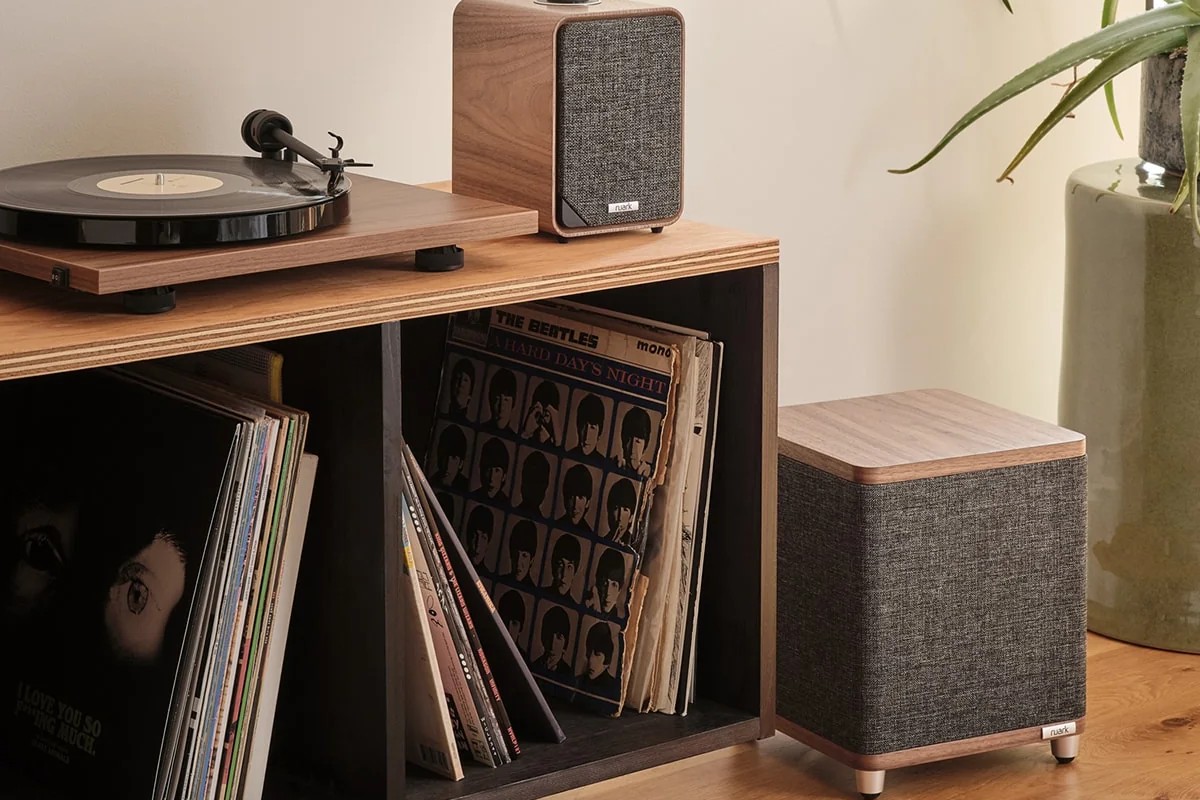

The walnut subwoofer at the foot of a record cabinet, with an MR1 speaker and a turntable above

Adjustable crossover filter

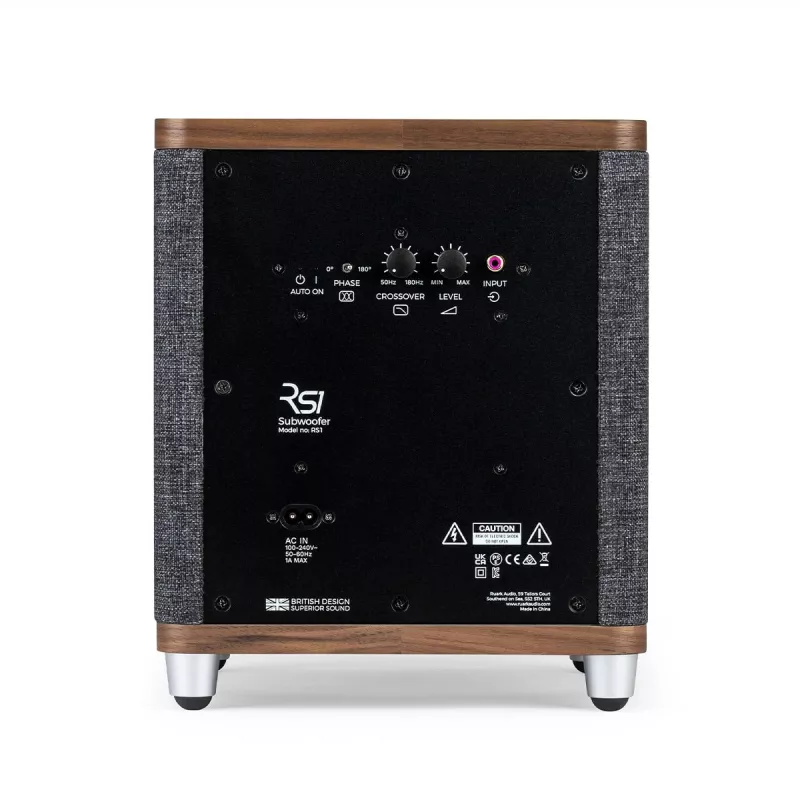

The crossover frequency is adjustable from 50 to 180 Hz. A switch inverts the phase by 180 degrees, and a level control adjusts the bass. The input is a mono RCA (2.3 Vrms maximum), and a 3 m RCA cable is included in the box. Ruark lists the R3S, MR1 and R410 as compatible speakers.

Walnut = Rich Walnut; Black = Satin Charcoal

Reference 71366

Data sheet

Product Type: Subwoofer
Features: Auto standby and wake-up; 180 degree phase switch; Adjustable crossover (50-180Hz); Adjustable level control; Soft clip protection filter
Brand: Ruark Audio
Analog inputs: Mono RCA input (max 2.3 Vrms)
Color: Charcoal Satin
Rich walnut
Technology: Tuned passive radiator
Amplification technology: 100W nominal Class D
Power consumption: 0.5W standby 7W typical
Woofer: 165mm/6.5" Ruark long-throw subwoofer; 165mm/6.5" Ruark passive radiator
Frequency response: 35Hz - 180Hz
Connector: IEC C8 cloverleaf AC socket
Width: 25.0 cm
Depth: 25.0 cm
Height: 27.0 cm
Unit weight: 6.7 kg
