REL S/550, a compact powered subwoofer from the Serie S range, with a 550 W Linear Class D amplifier, a 10-inch active driver and a 12-inch down-firing passive radiator. It brings fast, precise bass to stereo and home cinema systems in medium-sized rooms.

Color : Black

White
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

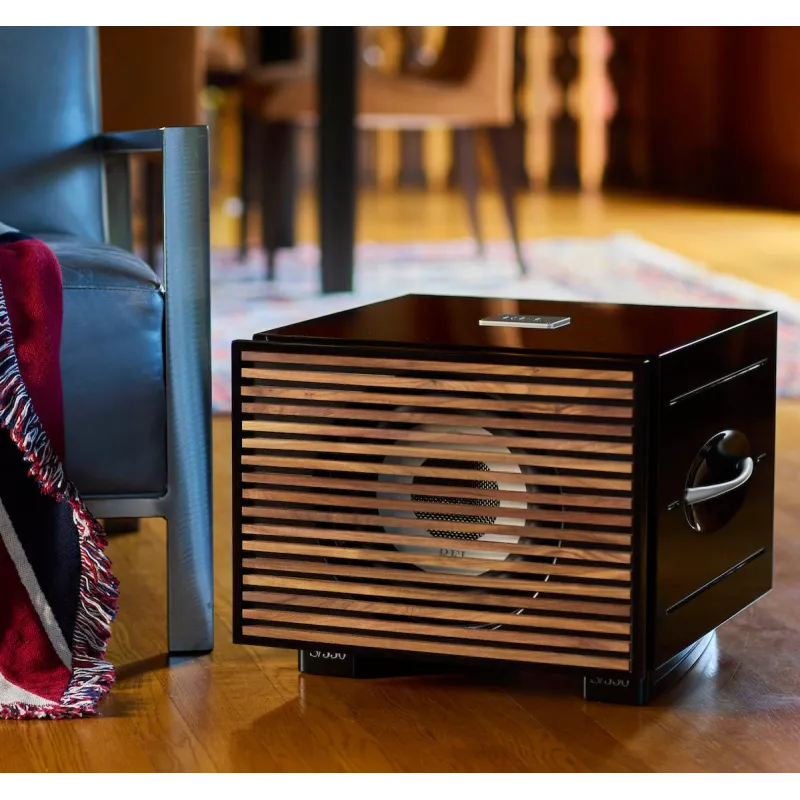

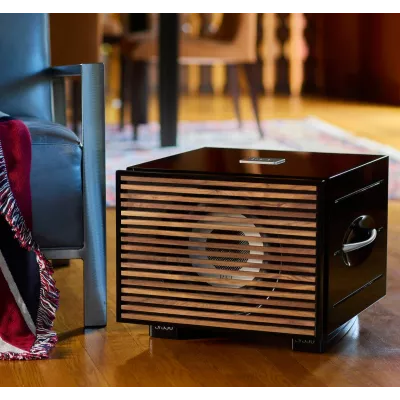

Gloss black subwoofer with a wooden slat grille on the parquet floor of a living room

Serie S in compact form

The S/550 brings the speed and authority of REL's Serie S to the most compact cabinet in the range: 44.5 cm wide, 37.2 cm high and 50 cm deep, for 31 kg. Its 550 W Linear Class D amplifier draws only 13 W at idle. The successor to the S/510, it is designed for medium-sized rooms. It is sold individually.

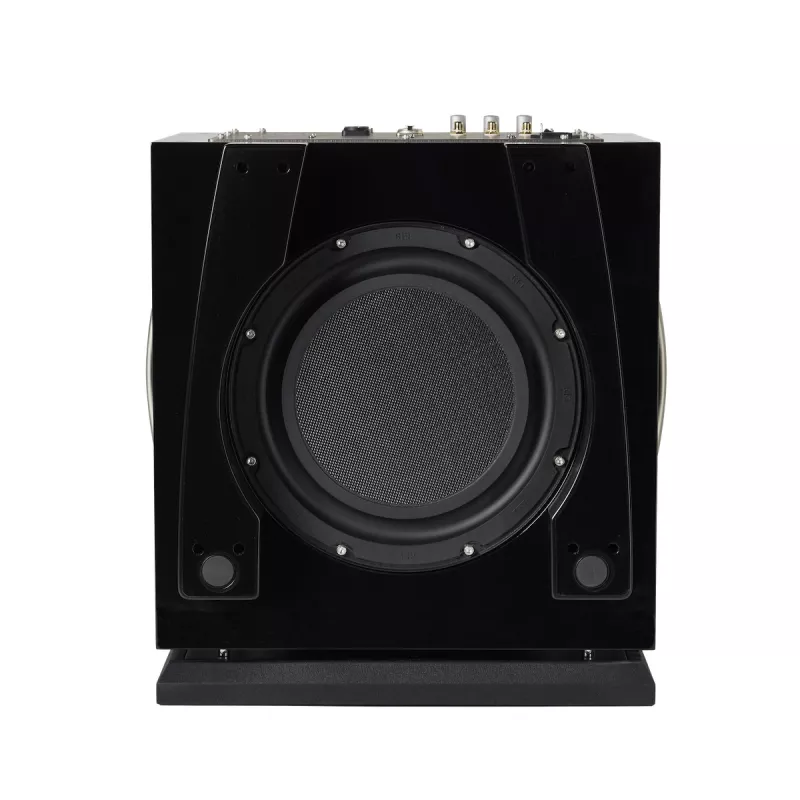

Underside of the subwoofer with its down-firing passive radiator

Carbon fibre and 12-inch passive

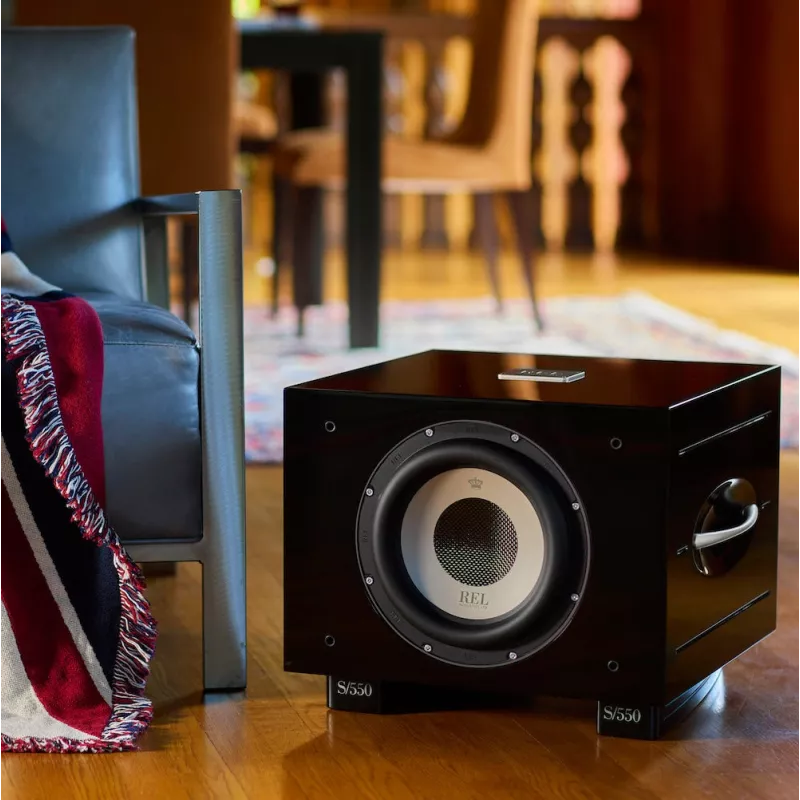

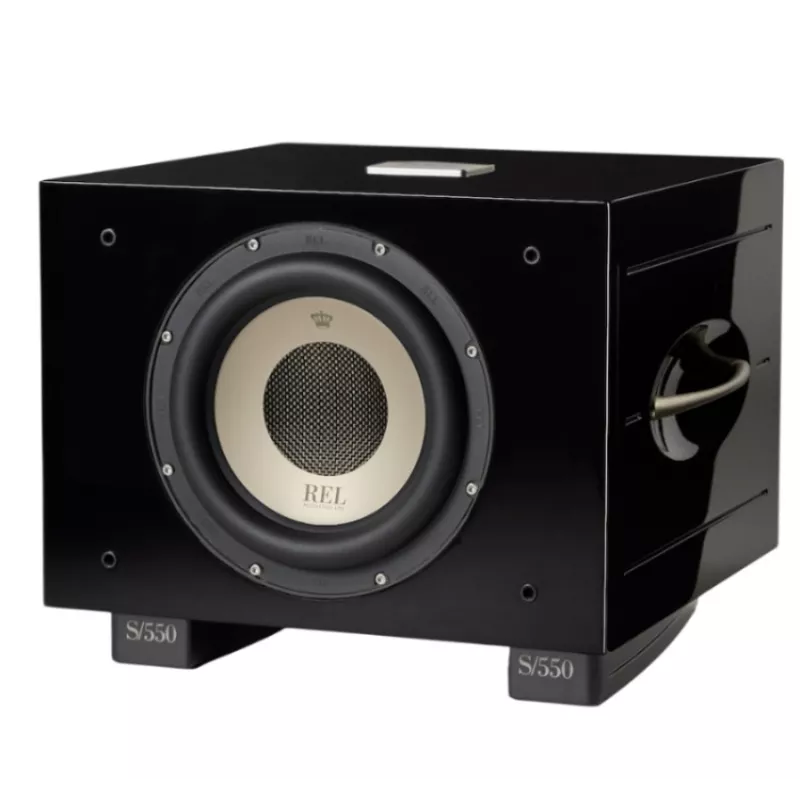

The 10-inch (250 mm) CarbonAlloy active driver radiates forwards: REL replaced the centre third of its cone with carbon fibre, four times stiffer than the aluminium it replaces. Underneath, a 12-inch (305 mm) passive radiator fires towards the floor. Its stroke has been extended to keep up with the driver and amplifier, which takes the bass deeper.

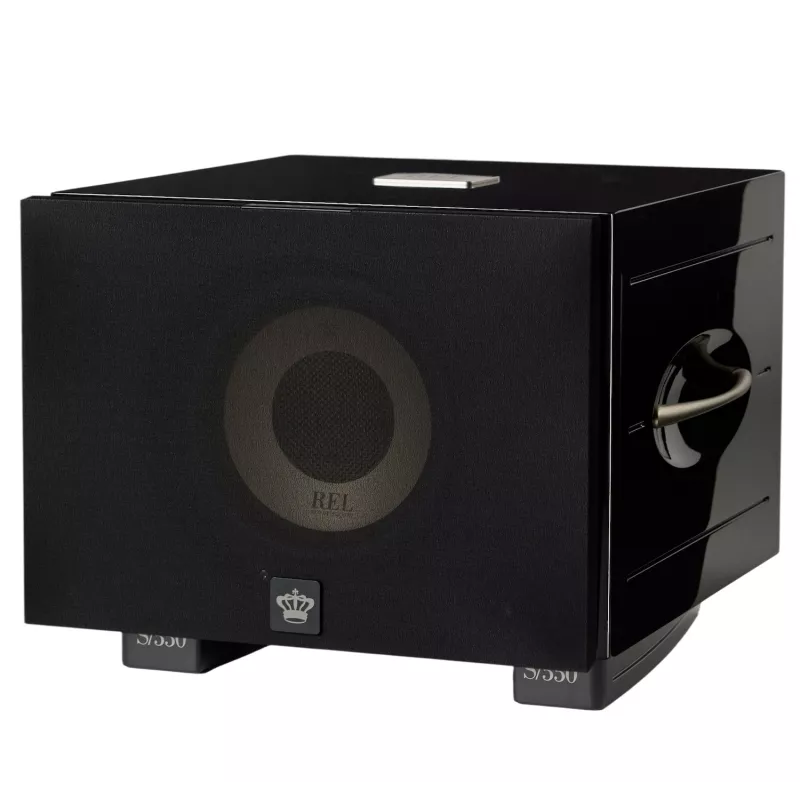

REL S/550 in gloss black with its cloth grille, three-quarter view

Cloth grille and lacquers

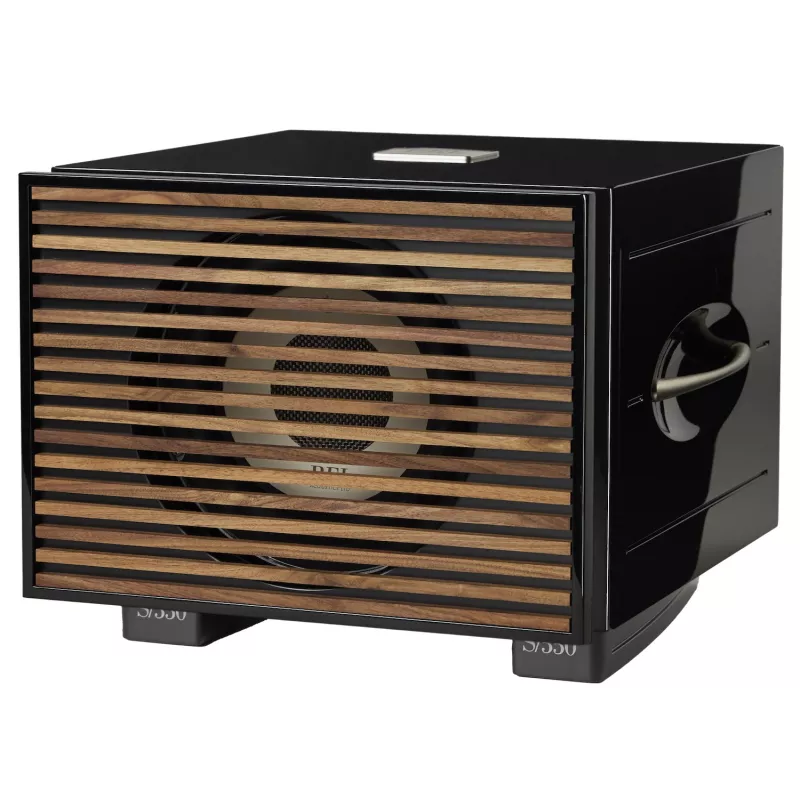

The S/550 comes with a cloth grille held by hidden magnets. A Premium Wood grille with wooden slats is available as an option and sold separately. The cabinet comes in Piano Black or Gloss White lacquer.

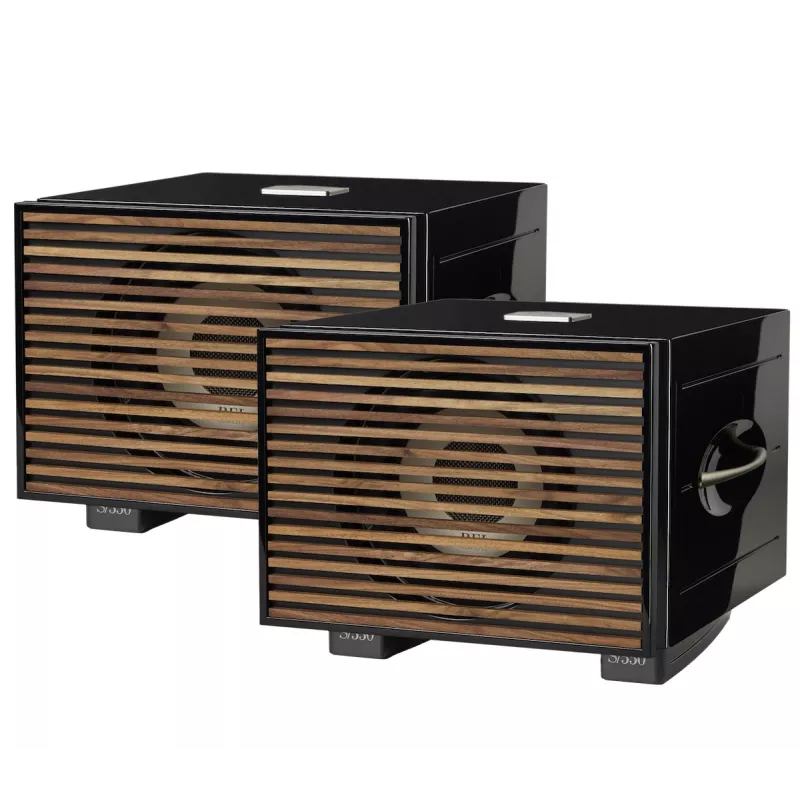

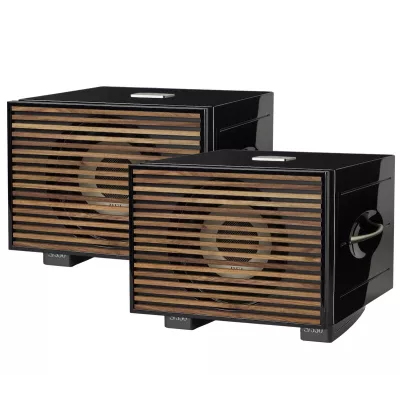

Two black subwoofers fitted with wooden grilles, three-quarter view

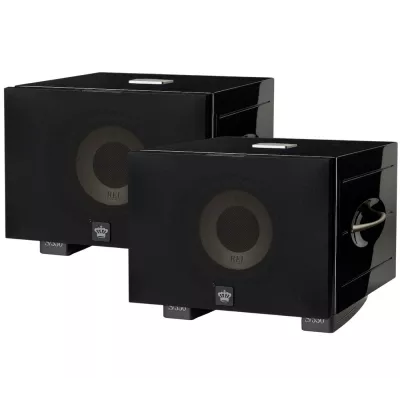

Stereo pair and Line Array

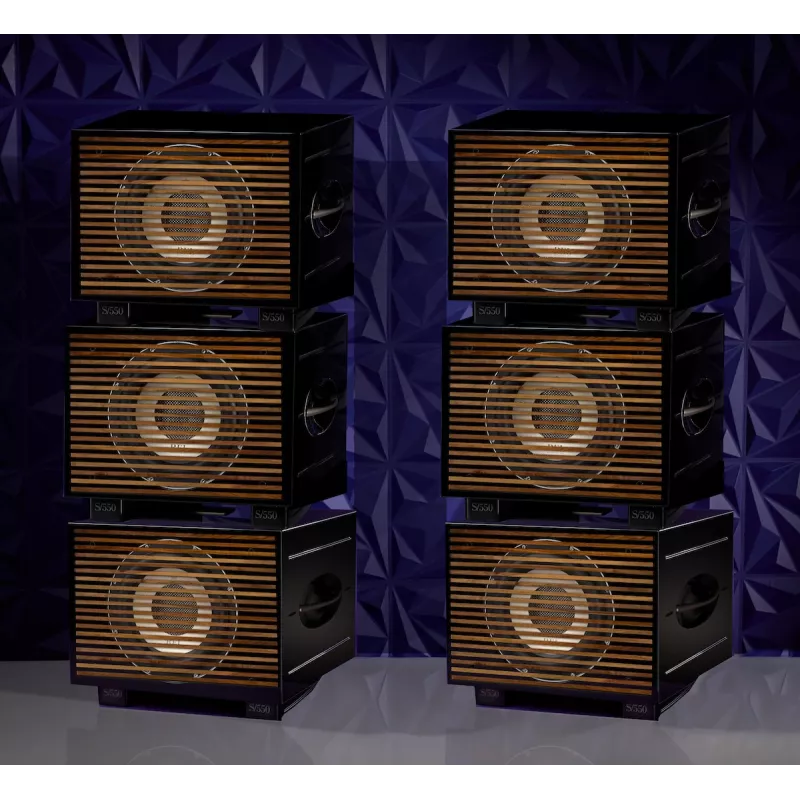

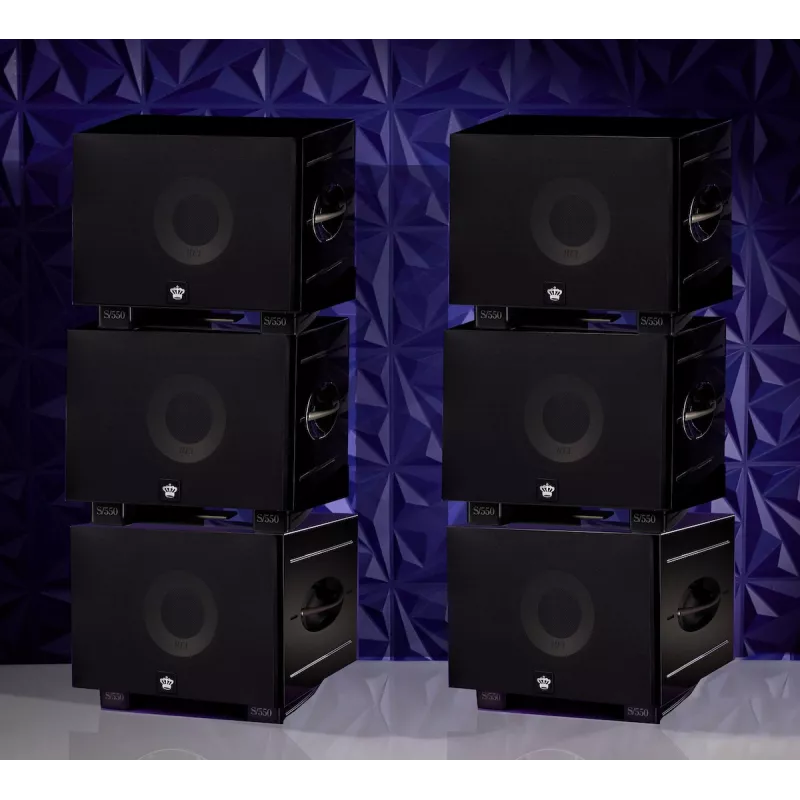

The rear panel groups the Speakon high level input, the low level and .1/LFE RCA inputs, an XLR LFE input and the matching outputs to link several subwoofers. Two S/550 as a stereo pair widen the soundstage, and six in a Line Array, three per side, form REL's most ambitious setup. The Airship Direct port takes an optional wireless receiver.

Black = Piano Black; White = Gloss White

Reference 73809

Data sheet

Product Type: Active subwoofer
Features: 8-coat lacquer
Can be used as a stereo pair or in a Line Array (3 per side)
Cloth grille included, optional Premium Wood grille, magnetic mounting
DC fault protection
Fully electronic SET-SAFE protection
Hi/Low Level and .1/LFE level controls, 20 - 120 Hz crossover, 0/180° phase
Mains input 220-240 V (110-120 V for certain markets)
Output short-circuit protection
Semi-delay fuse 8 A at 220 V, 15 A at 120 V
Standby or always-on mode
Supplied: mains lead, 10 m Neutrik Speakon cable, cloth grille, Line Array mounting hardware, manual
Brand: REL Acoustics
Audio outputs: High Level (Speakon), .1/LFE RCA, LFE XLR, low level RCA
Analog inputs: High Level (Speakon), stereo low level RCA, .1/LFE RCA, LFE XLR
Wireless connectivity: Airship Direct port for optional wireless receiver
Output power: 550 W
Color: Gloss black, gloss white
Technology: Active sealed enclosure
Series: Serie S
Amplification technology: Linear Class D: Class A/B power supply, Class D output stage
Power consumption: 13 W at idle
Woofer: Down-firing 305 mm (12 in) passive radiator, Carbon/Carbon flat cone, steel chassis
Front-firing 250 mm (10 in) long-throw active driver, CarbonAlloy cone, die-cast alloy chassis
Frequency response: -6 dB @ 19 Hz (lower limit)
Width: 44.5 cm
Depth: 50.0 cm
Height: 37.2 cm
Unit weight: 31.0 kg
