Monitor Audio Anthra W15, an active subwoofer in a sealed MDF cabinet with a 381 mm C-CAM driver and a 2500 W Class-D amplifier. The DSP is set up through MaestroUnite.

Color : Black

White
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

Satin white subwoofer, three-quarter view with grille

25 mm Braced MDF

The Anthra W15 is an active subwoofer in a sealed cabinet of braced 25 mm MDF, with a 36 mm front baffle. The cube measures 439 x 439 x 439 mm without feet and weighs 35.41 kg. Cloth grilles attach magnetically.

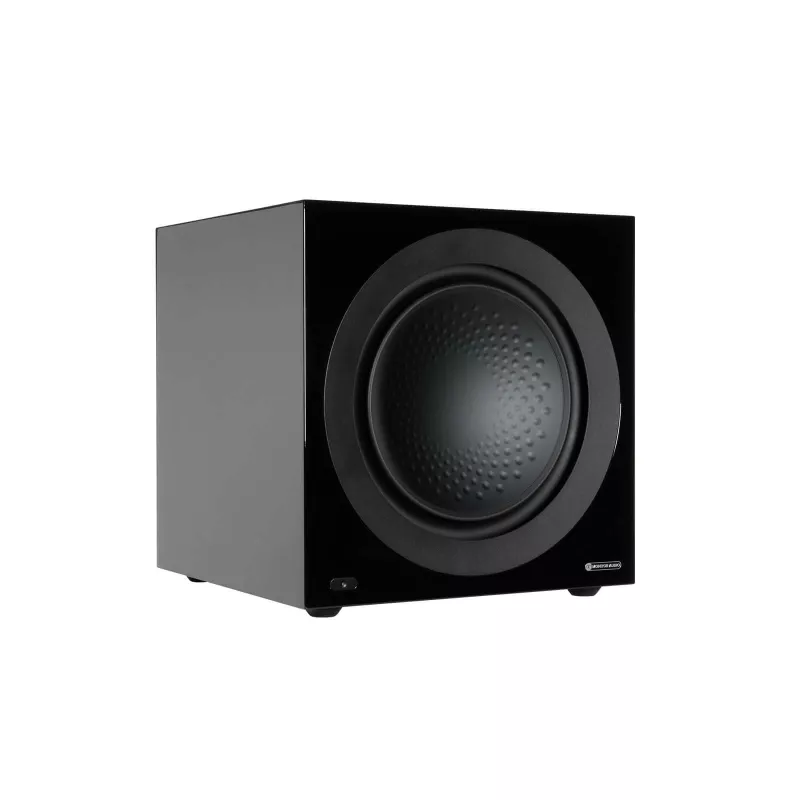

Gloss black subwoofer, three-quarter view, driver exposed

50 mm of Excursion

The 15-inch (381 mm) C-CAM driver combines triple suspension and Rigid Surface Technology II. Peak-to-peak excursion reaches 50 mm. At 240 V, a Class-D amplifier drives it with 2500 W RMS on an instantaneous signal and 1400 W with a sine wave held for 10 seconds. Response extends down to 16 Hz at -6 dB.

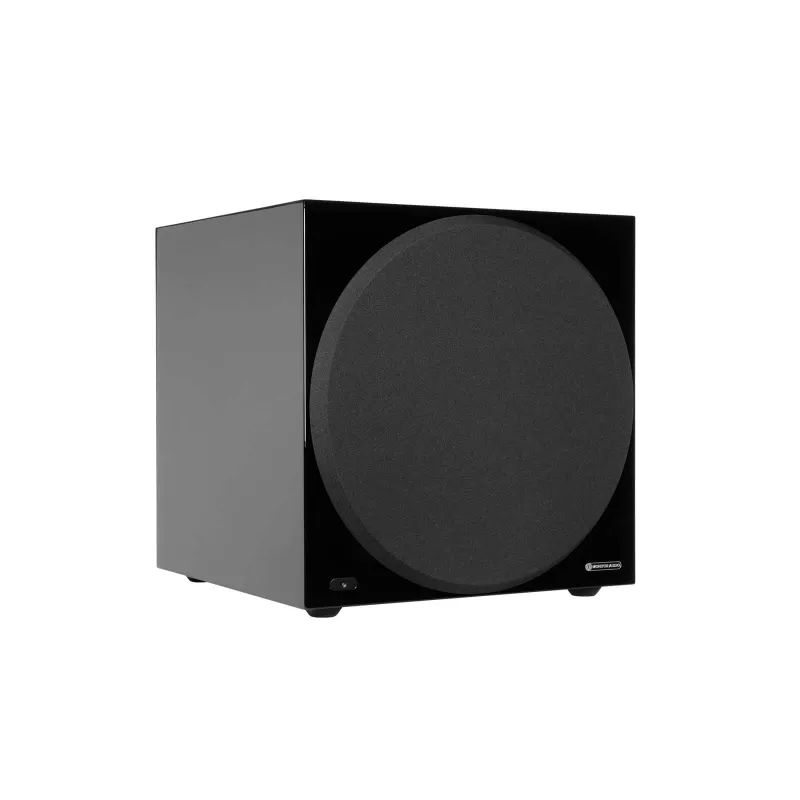

Gloss black subwoofer, three-quarter view with grille

DSP Set Through MaestroUnite

The 28-bit, 50 MIPS DSP is configured through MaestroUnite. The low-pass filter covers 20 to 200 Hz with a slope adjustable from -3 to -48 dB per octave, and phase adjusts from 0 to 360 degrees. Three predefined EQ curves sit alongside three custom curves of 8 bands each.

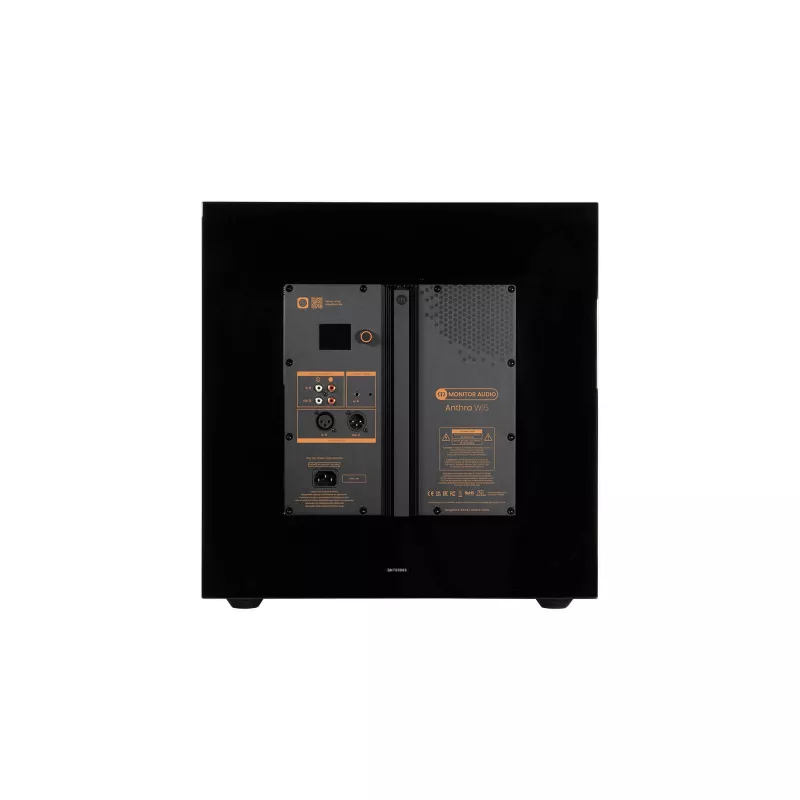

XLR and RCA Connections

Signal enters on stereo RCA or on balanced mono/LFE XLR, and leaves through unbuffered pass-through outputs in the same formats. The autoranging input accepts up to 10 Vrms. The mains input is universal, 85 to 265 VAC.

Black = High Gloss Black · White = Satin White

Reference 73703

Data sheet

Product Type: Subwoofer
Brand: Monitor Audio
Audio outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs / Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
Output power: Instantaneous: 2500 W / continuous short-term: 1400 W (240 VAC)
Connections: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) / Mono/LFE Balanced XLR
Amplification technology: High-Efficiency Class-D
Power consumption: 550 W
Woofer: 1 x 15" (381 mm) High Linear-Excursion Triple Suspension Driver
Frequency response: -6 dB @ 16 Hz (lower limit)
Width: 43.9 cm
Depth: 43.9 cm
Height: 43.9 cm
Unit weight: 35.4 kg
