Monitor Audio Vestra W15, a ported active subwoofer with a 381 mm C-CAM driver and a 500 W Class-D amplifier. In-room response reaches down to 17 Hz at -6 dB.

Color : Black

White
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

381 mm C-CAM Driver

The Vestra W15 is built around a 15-inch (381 mm) C-CAM driver with high linear excursion and triple suspension, in a ported cabinet. With all accessories fitted, it measures 540 x 526 x 556 mm and weighs 30.3 kg. In-room response reaches down to 17 Hz at -6 dB.

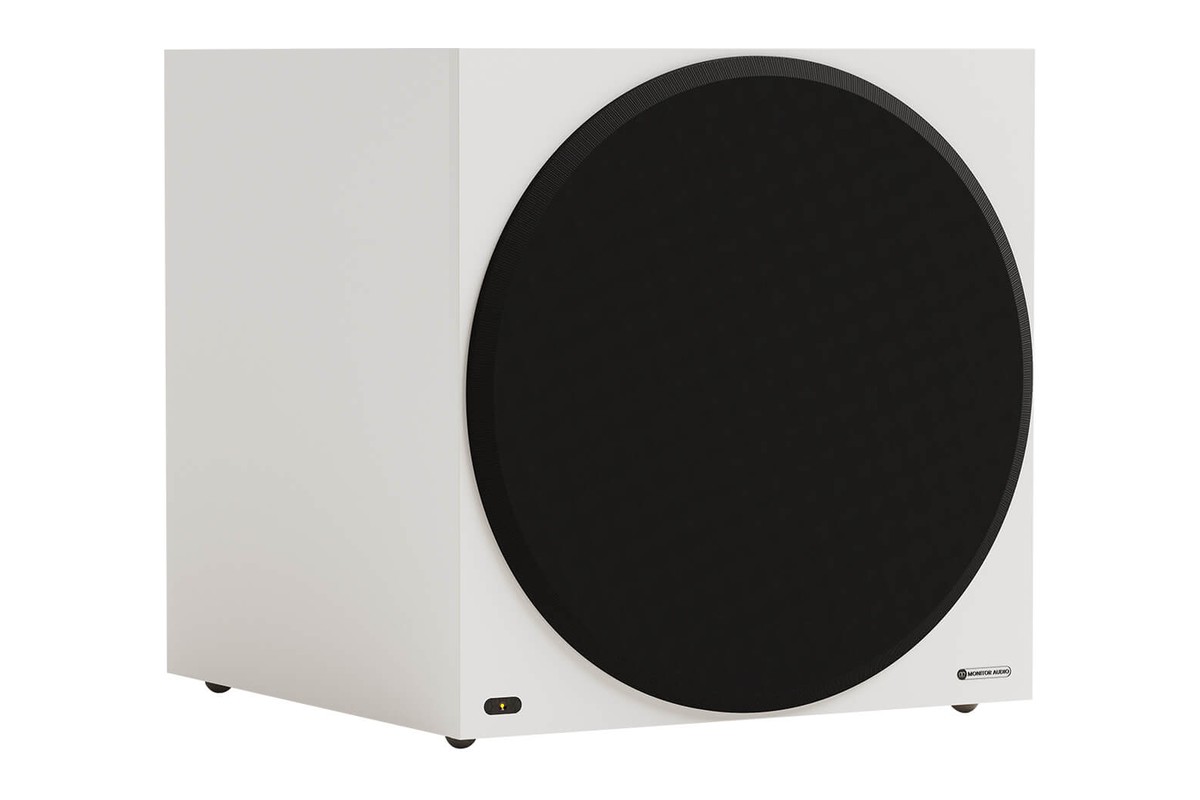

Matte white subwoofer, three-quarter view with grille

500 W Class-D Amplifier

The Class-D amplifier delivers 500 W RMS of instantaneous output. Usable peak SPL reaches 117 dB to CTA 2010-B, measured in half-space. At one-eighth of maximum output, power consumption stays at 120 W.

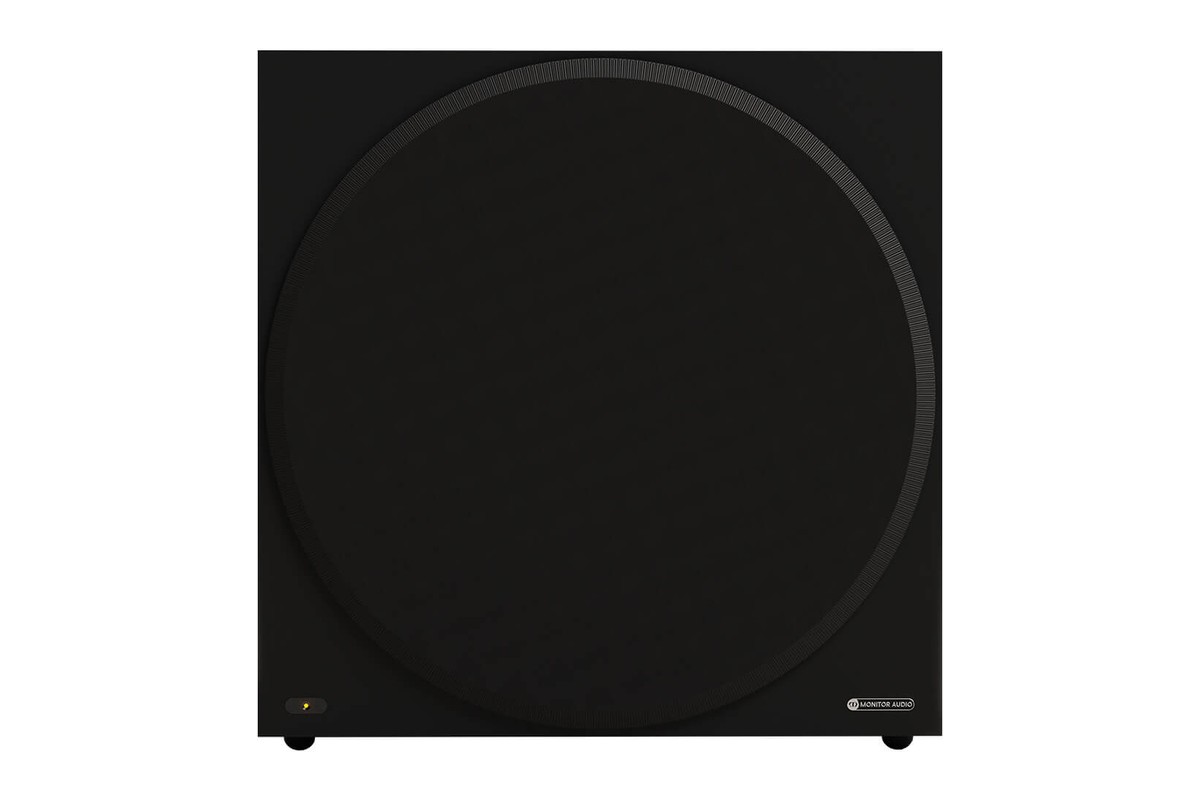

Matte black subwoofer, front view with grille

Filter, Phase and EQ

The low-pass filter adjusts from 32 to 200 Hz and phase switches between 0° and 180°. Three DSP presets, Impact, Movie and Music, change the equalisation curve.

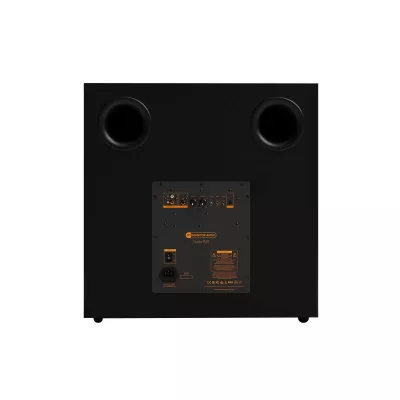

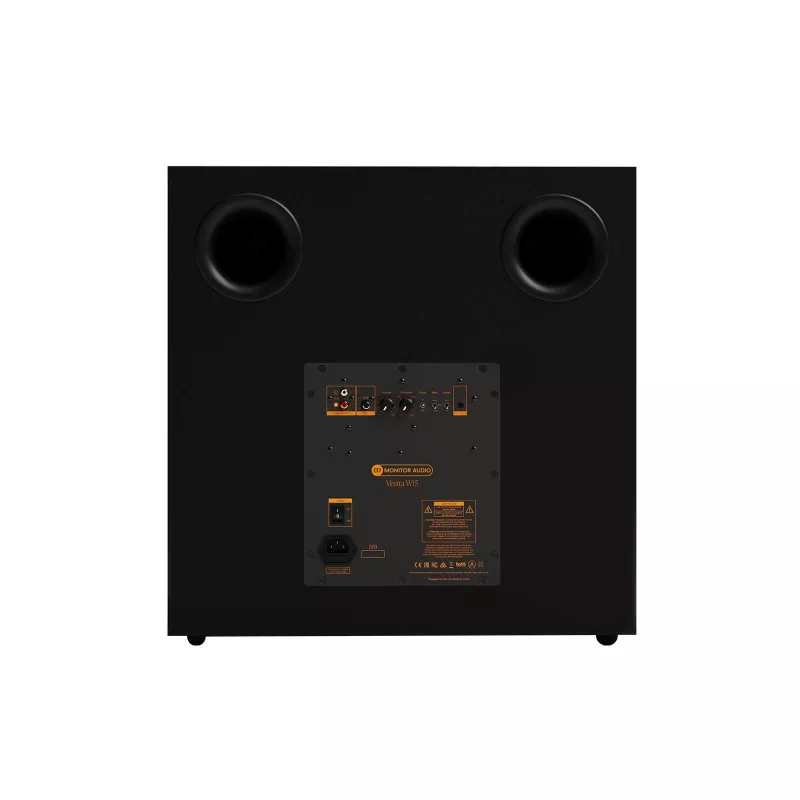

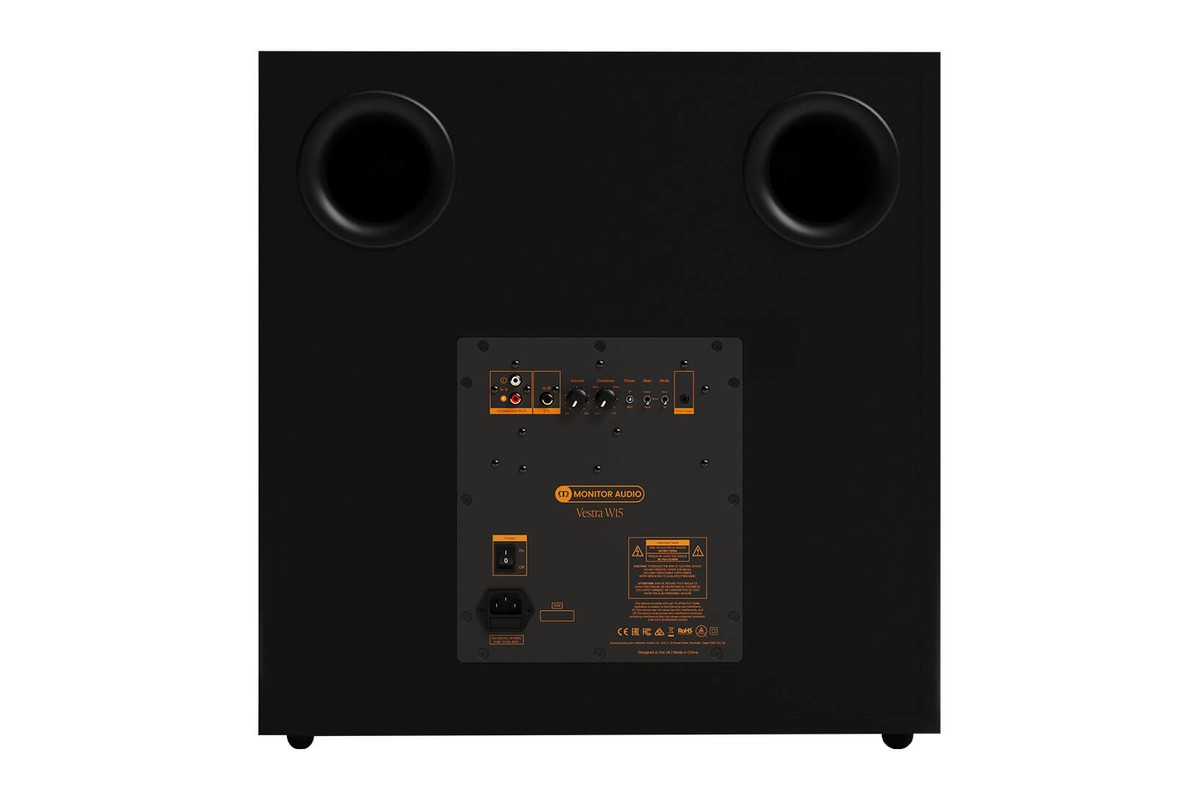

RCA Inputs, 12 V Trigger

At the rear, a stereo RCA input and an LFE RCA input take the signal, at 47 kOhms input impedance. A 12 V trigger on a 3.5 mm mono jack handles switch-on. Without it, the subwoofer wakes at 3 mV of input and returns to standby after 20 minutes without signal.

Black = Matte Black · White = Matte White

Reference 73697

Data sheet

Product Type: Subwoofer
Brand: Monitor Audio
Output power: 500 W (RMS, instantaneous)
Technology: Ported
Connections: Stereo Unbalanced RCA / LFE Unbalanced RCA / 12 V Trigger 3.5 mm mono jack
Amplification technology: High-Efficiency Class-D
Power consumption: 120 W (at 1/8 of maximum output)
Woofer: 1 x 15" (381 mm) High Linear-Excursion Triple Suspension Driver
Frequency response: 17 - 200 Hz (-6 dB, in-room)
Maximum SPL: 117 dB (usable peak, CTA 2010-B, Z-weighted, half-space)
Width: 52.6 cm
Depth: 55.6 cm
Height: 54.0 cm
Unit weight: 30.3 kg
