REL Carbon Special | 900 W powered subwoofer | 3 YEAR WARRANTY

Reference 73818

CHF4,590.00 Tax included

Supplier stock – typically 4 to 7 days

REL Carbon Special, a Serie S powered subwoofer with a 12-inch carbon fibre driver and a 900 W Linear Class D amplifier. It delivers powerful, precise bass from medium-sized rooms to very large spaces.

Color : Dark Wood

Dark Wood
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

Gloss black subwoofer with a carbon fibre driver standing in an entrance hall

Heir to the Reference range

The Carbon Special Black Label is the most refined medium-sized model in the Serie S: its 12-inch active driver, with an all-carbon fibre cone, is closely related to the one in the No.31 Reference. The cabinet measures 48.8 cm wide, 41 cm high and 56.5 cm deep, for 44.5 kg. It is sold individually, and both finishes are Black Label: Black with a Black Cloth grille, Dark Wood with a Premium Wood grille.

Underside of the subwoofer with its down-firing passive radiator

Long-stroke passive

Underneath, a 12-inch passive radiator fires towards the floor. REL developed it for this model and for the 212 Black Label, with a very long stroke that follows the fast movements of the active driver. The active driver itself handles three times the power of the one in the previous Carbon Special.

Rear panel of the Carbon Special Black Label with its sockets and controls

Linear Class D amplifier

The Linear Class D amplifier pairs a Class A/B power supply with a Class D output stage. Rated at 900 W, it delivers peaks of 1250 to 1400 W. The rear panel offers the Speakon high level input, the low level and .1/LFE RCA and XLR inputs, level, crossover and phase controls, and the Airship Direct port for an optional wireless receiver.

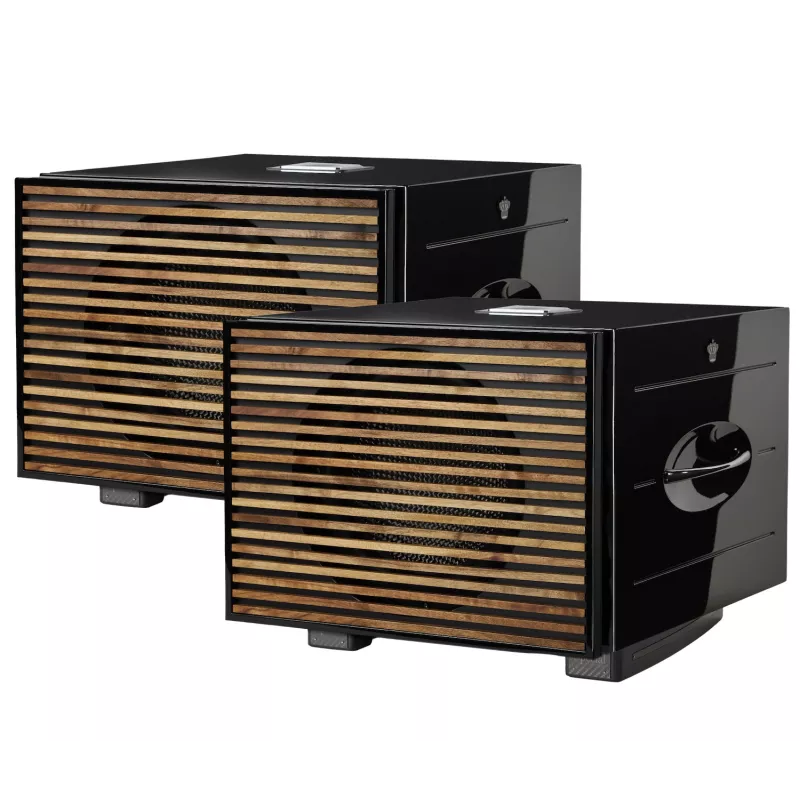

Two black subwoofers with wooden slat grilles, three-quarter view

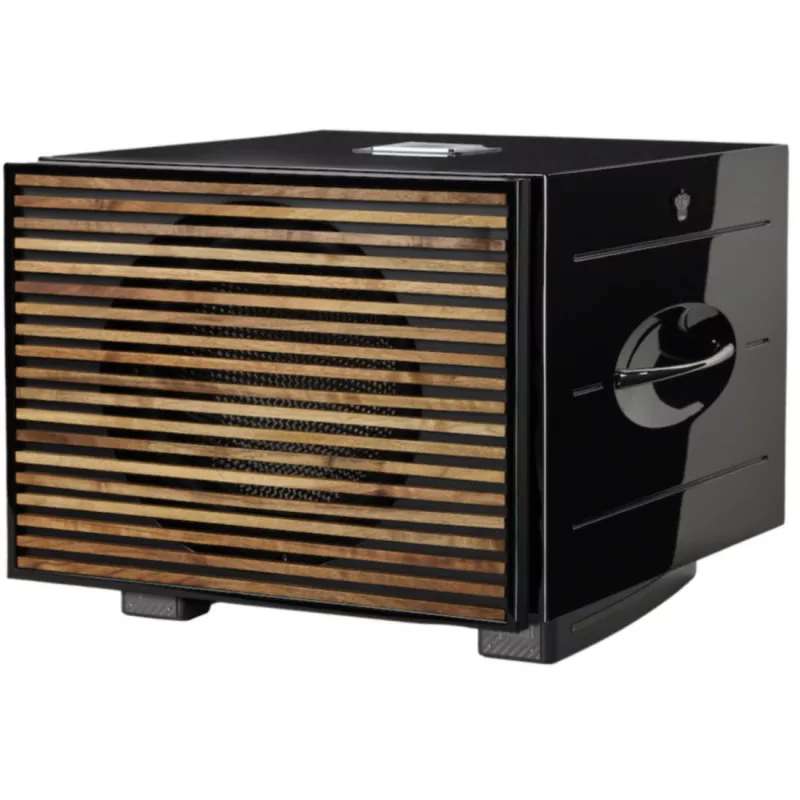

Premium Wood grille

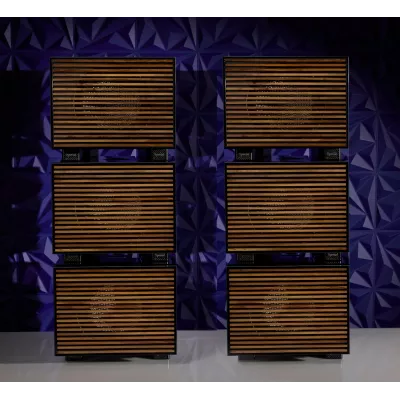

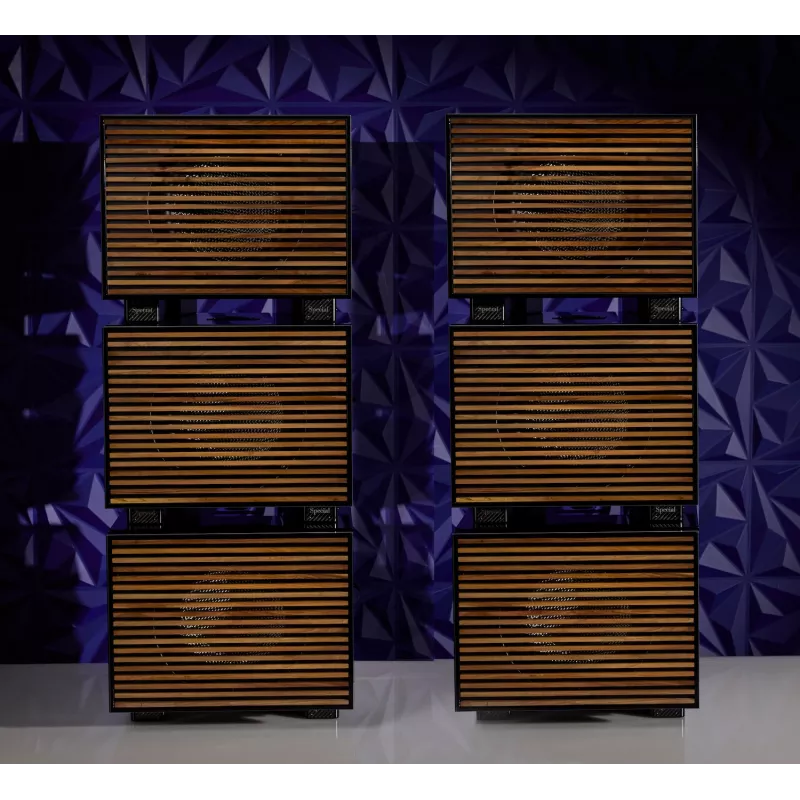

The Premium Wood grille with its wooden slats lets air move far more freely than a cloth grille, and its magnetic mounting stays hidden. It comes with the Dark Wood version; the Black version is supplied with the Black Cloth grille. As a stereo pair or in a Line Array of six subwoofers, three per side, the Carbon Special suits medium-sized rooms as well as very large ones.

Black = Black Label, Black Cloth grille; Dark Wood = Black Label, Premium Wood grille

Reference 73818

Data sheet

Product Type: Active subwoofer with auxiliary bass radiator (ABR)
Features: 8-coat lacquer
Can be used as a stereo pair or in a Line Array (3 per side)
DC fault protection
Fully electronic SET-SAFE protection
Hi/Low Level and .1/LFE level controls, 20 - 120 Hz crossover, 0/180° phase
Mains input 220-240 V (110-120 V for certain markets)
Output short-circuit protection
Semi-delay fuse 8 A at 220 V, 15 A at 120 V
Standby or always-on mode
Supplied: mains lead, 10 m Neutrik Speakon cable, Black Cloth or Premium Wood grille depending on finish, Line Array mounting hardware, manual
Brand: REL Acoustics
Audio outputs: High Level (Speakon), .1/LFE RCA, LFE XLR, low level RCA
Analog inputs: High Level (Speakon), stereo low level RCA, .1/LFE RCA, LFE XLR
Wireless connectivity: Airship Direct port for optional wireless receiver
Output power: 900 W
Color: Black lacquer
Series: Serie S
Amplification technology: Linear Class D: Class A/B power supply, Class D output stage
Woofer: Down-firing 305 mm (12 in) passive radiator, Carbon/Carbon flat cone, steel chassis
Front-firing 305 mm (12 in) long-throw active driver, carbon fibre cone, inverted carbon fibre centre cap, die-cast alloy chassis
Frequency response: -6 dB @ 19 Hz (lower limit)
Width: 48.8 cm
Depth: 56.5 cm
Height: 41.0 cm
Unit weight: 44.5 kg
