Aurender A10 2TB Black | Aurender Content Server
61008
Modèle Showroom
Catching network music server/player with analog outputs
SPÉCIFICATIONS TECHNIQUES :
| Dimensions & Weight | 430 x 55 x 353 (mm) 16.93 x 2.2 x 13.9 (inches) / 10.2Kg 22.5 lbs |
| SSD for System and Cache | 120G |
| Music Storage | No disc |
| Power | Full-Linear |
| Display | 3.0" AMOLED |
| Digital Audio Output | USB Audio Class 2.0 |
| Digital Audio Input | SPDIF Optical up to 24-bit / 192 kHz |

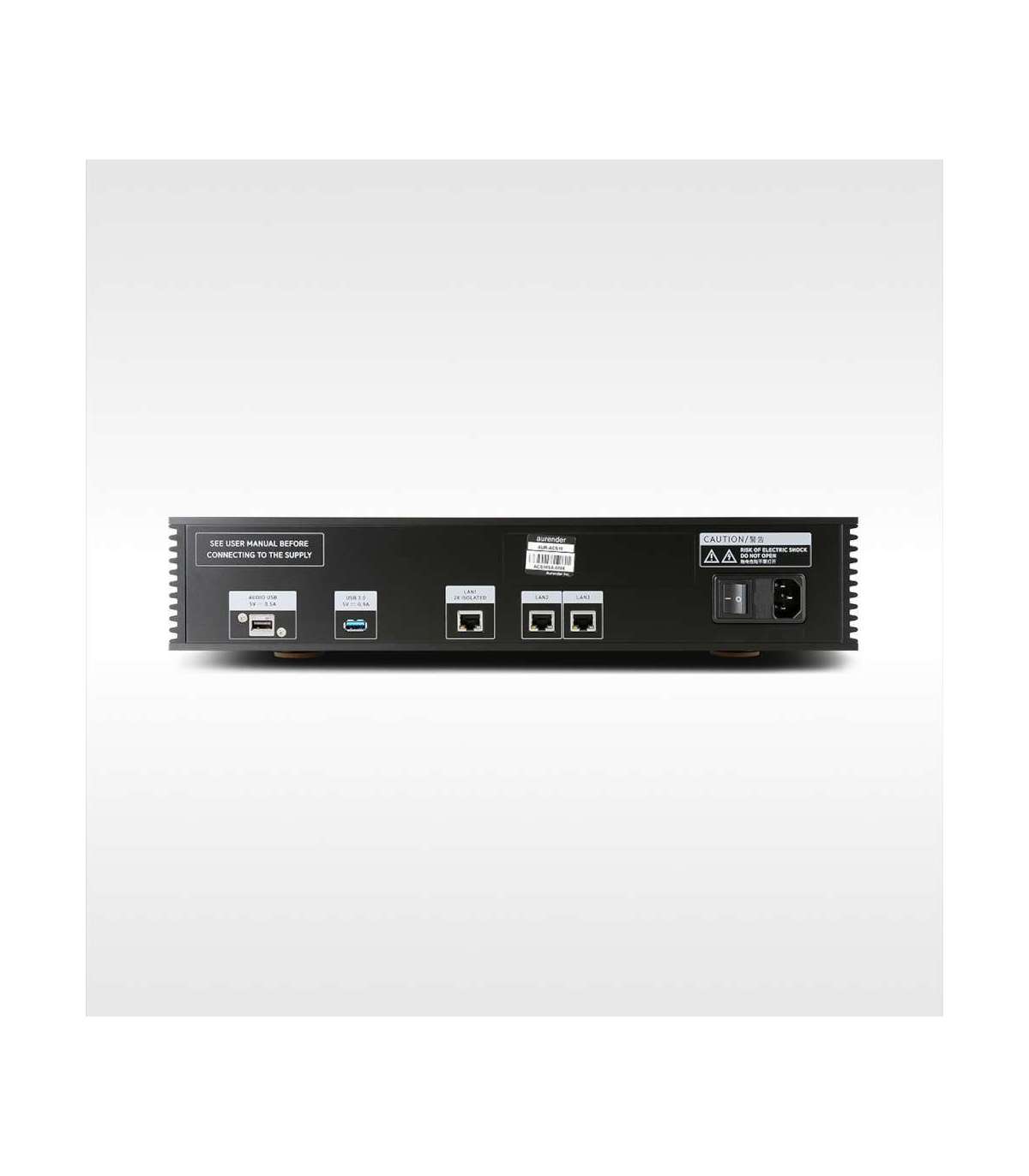

| Other I/O | Gigabit Ethernet, USB Port x 2 |
| Analog Audio Output | Unbalanced(RCA): 2Vrms / Balanced(XLR): 4Vrms |
| Volume Control | -90 dB ~ 0dB, 0.5 dB step Velocity Sensitive Operation |
| USB Audio Output | PCM: up to 32-bit / 384 kHz DSD: DSD64, DSD128 / DoP Mode |
| DAC Chip | AK4490(AKM) x 2 (Dual-Mono Design) |
| THD + N | Min. -112dB, IMD(SMPTE) Min. -113 dB |
| THD (1KHz 2.5Vrms XLR output) | 0.00013 % |
| Dynamic Range | MAX 128 dB (CCITT filter) |
| Stereo Crosstalk | Better than -135dB, 20-20kHz. |
VUE D'ENSEMBLE

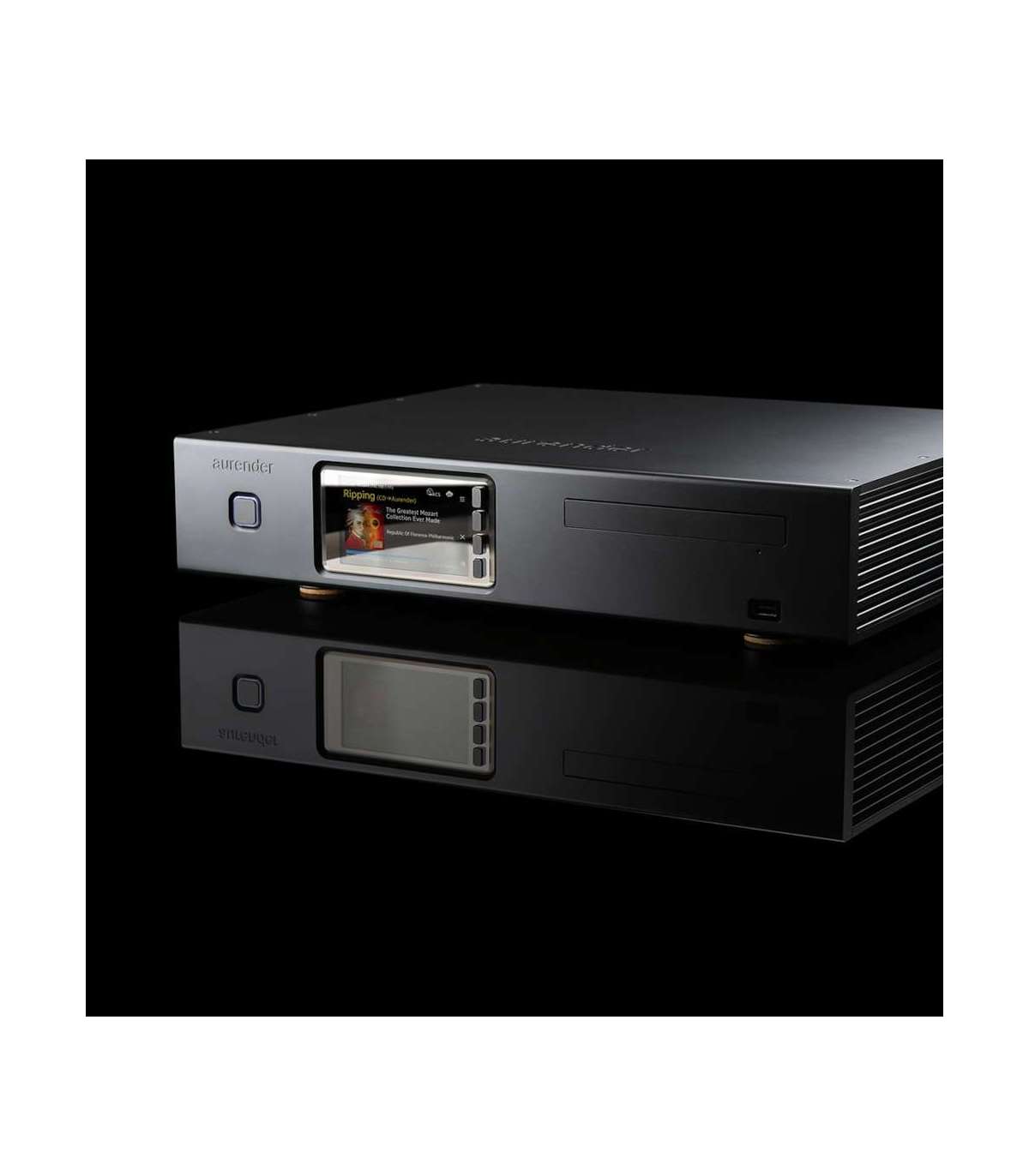

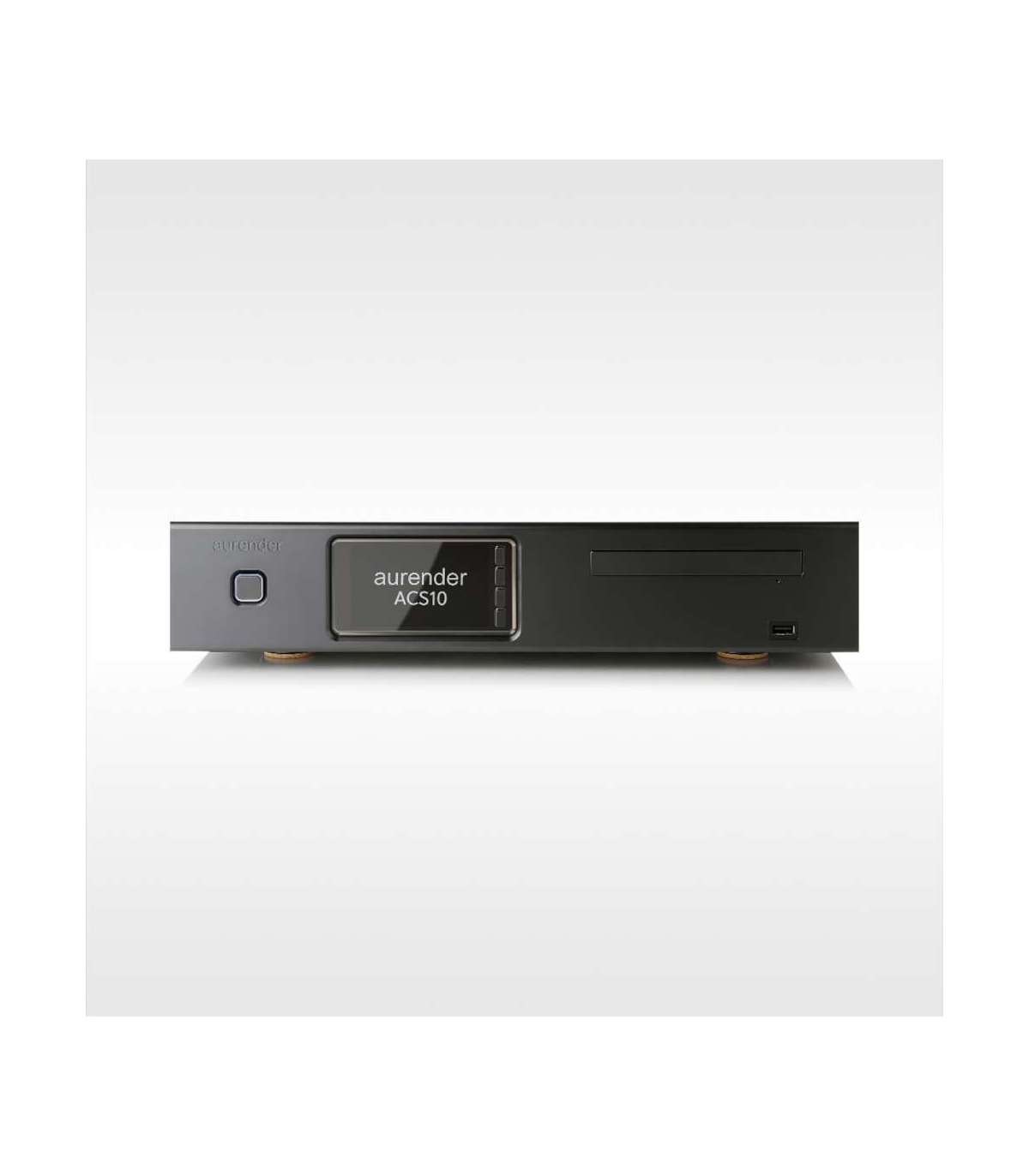

Music Player with high performance digital-to-analog converter. With 4TB of internal hard disk drive and one 120GB solid-state drive cache for playback, the A10 is the perfect solution for those replacing CD Players.
All Aurender models include the dedicated Aurender Conductor App, hailed by reviewers worldwide for its performance and intuitive operation. iPad App was developed in house with managing large music databases in mind, providing exceptionally fast browsing and searching of your favorite music.
All Aurender Servers and Players fully support the service. Enjoy 35 million lossless CD quality music tracks with the world's best sounding Music Server. You can also easily play music from your NAS, on Aurender's HDD or music from the TIDAL service using the same app.
Integrated Flagship Dual-Mono DACs with full Discrete Linear Power block
• Balanced (XLR) / Unbalanced (RCA) Audio Outputs
• Dual 768KHz/32bit Next Generation Flagship AK4490 DAC Chip
• Volume adjustment from app, IR remote or front panel rotary control
FPGA-based Precision clock generation system with world-class jitter-reducing clock generator
Precision clock generation system incorporating Field-Programmable Gate Arrays (FPGA) with sub 100fs world-class jitter-reducing clock generator precisely times digital audio data transmissions and minimizes jitter to below negligible levels
Designed to keep the noise system noise level as low as possible
Full linear power and special shielding prevent noise from being delivered to sensitive DACs for the best sound reproduction.

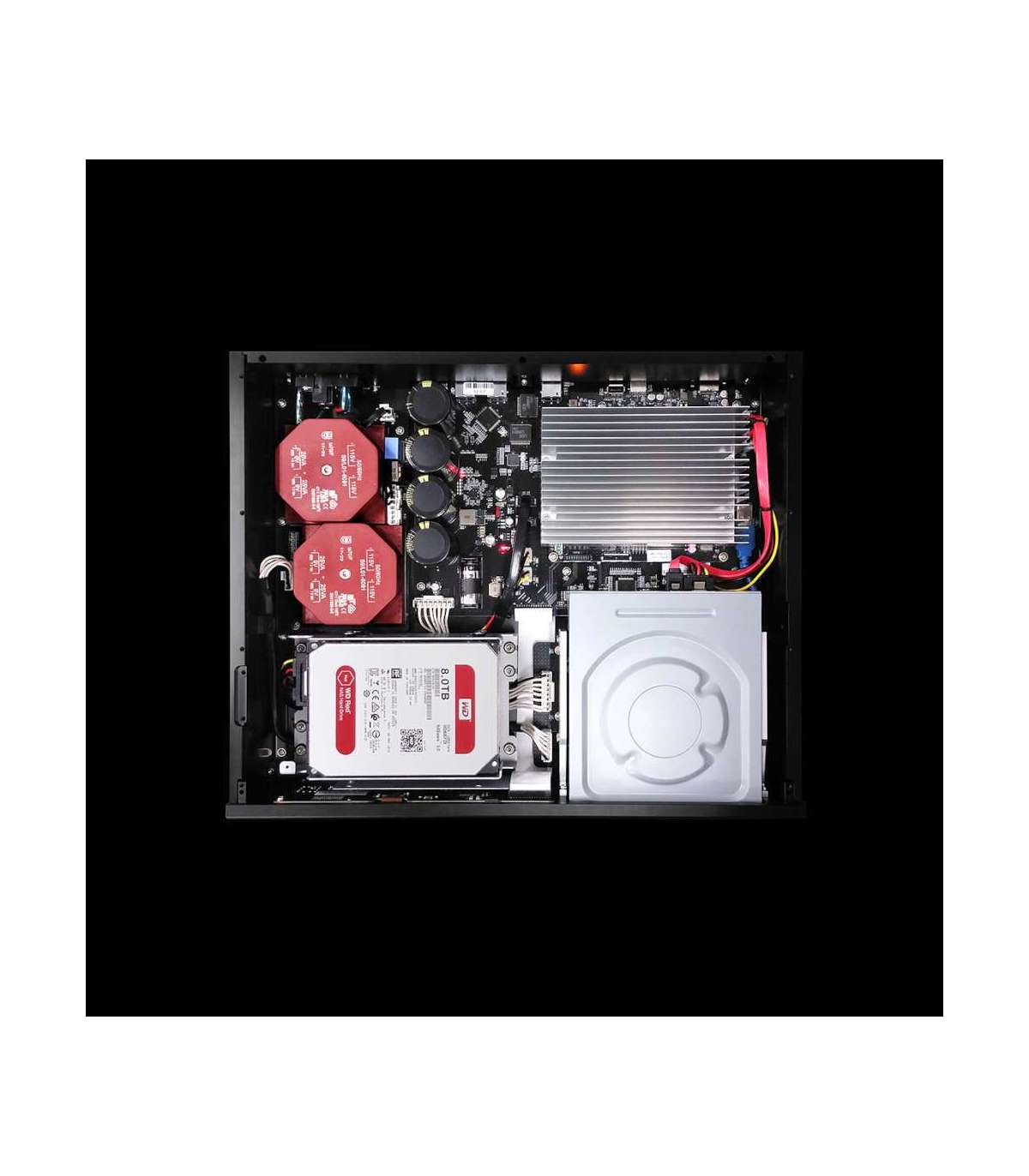

Four Individual Toroidal Power Transformers for Server / Digital / Dual DACs
Fully Isolated Asyncronous USB audio block to protect noise
Aurender App Packed with Convenient Features for Full-Function Control
The Aurender Conductor App turns the iPad into a versatile user interface for Aurender Music Server/Players. All settings and functions of the Aurender Server/Music Player can be easily accessed through the Settings menu, and the Aurender App comes with extensive features to make managing, viewing and playing high resolution music collections a breeze.
Dedicated USB Audio Class 2.0 Output with Ultra Low Noise Power Circuitry
The dedicated USB Audio Class 2.0 output is designed to deliver an exceptionally transparent audio signal free of noise, and is shielded from outside electronic interference.
AMM and NAS(Network-Attached Storage) Support
If you already have NAS set-up, the Aurender A10 is able to play music stored on NAS devices,
AMM(Aurender Media Manager) software is available for Mac(OS X 10.9 or later) /Windows7 or later
You can run AMM software on your platform of choice, please specify the location of your content on NAS then it will automatically find the Aurender in you local network and make a combining music database. It's transparent to the user, so once you run AMM , you can select the music with all the meta-data using the Aurender Conductor App without the knowledge of the location of your music files.
Remote Internet Technical Support
Sending a Remote Support Request through the Aurender App allows engineers to quickly diagnose and fix problems over the Internet.
MQA is an award-winning British technology that delivers the sound of the studio. The master MQA file is fully authenticated and is small enough to stream, while also being backward compatible, so you can play MQA music on any device.
MQA technology is licensed by labels, music services, and hardware manufacturers worldwide.
Visit mqa.co.uk for more information.*
The Aurender A10 includes Full Decoder MQA technology, and is a fully compliant MQA end-to-end solution enabling you to play back MQA audio files and streams, delivering the sound of the "original master recording”. This method of decoding delivers the highest possible sound quality available from MQA.
The Aurender Conductor App will indicate that “MQA" or "MQA Studio” content is being played back. A green or blue dot next to the MQA logo indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. The blue dot indicates it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.
The A10's front panel also uses text indicators to display MQA playback and the respective sampling rate of the file or stream being played. ‘MQA’ or ‘MQA Studio’ indicates that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. ‘‘MQA Studio’ indicates it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.
