Ortofon OMP 10
SPÉCIFICATIONS TECHNIQUES :
Output voltage at 1000 Hz, 5cm/sec-4 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force - 65 µm
Compliance, dynamic, lateral - 25 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended - 1,5 g (1,5 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight - 6 g
VUE D'ENSEMBLE

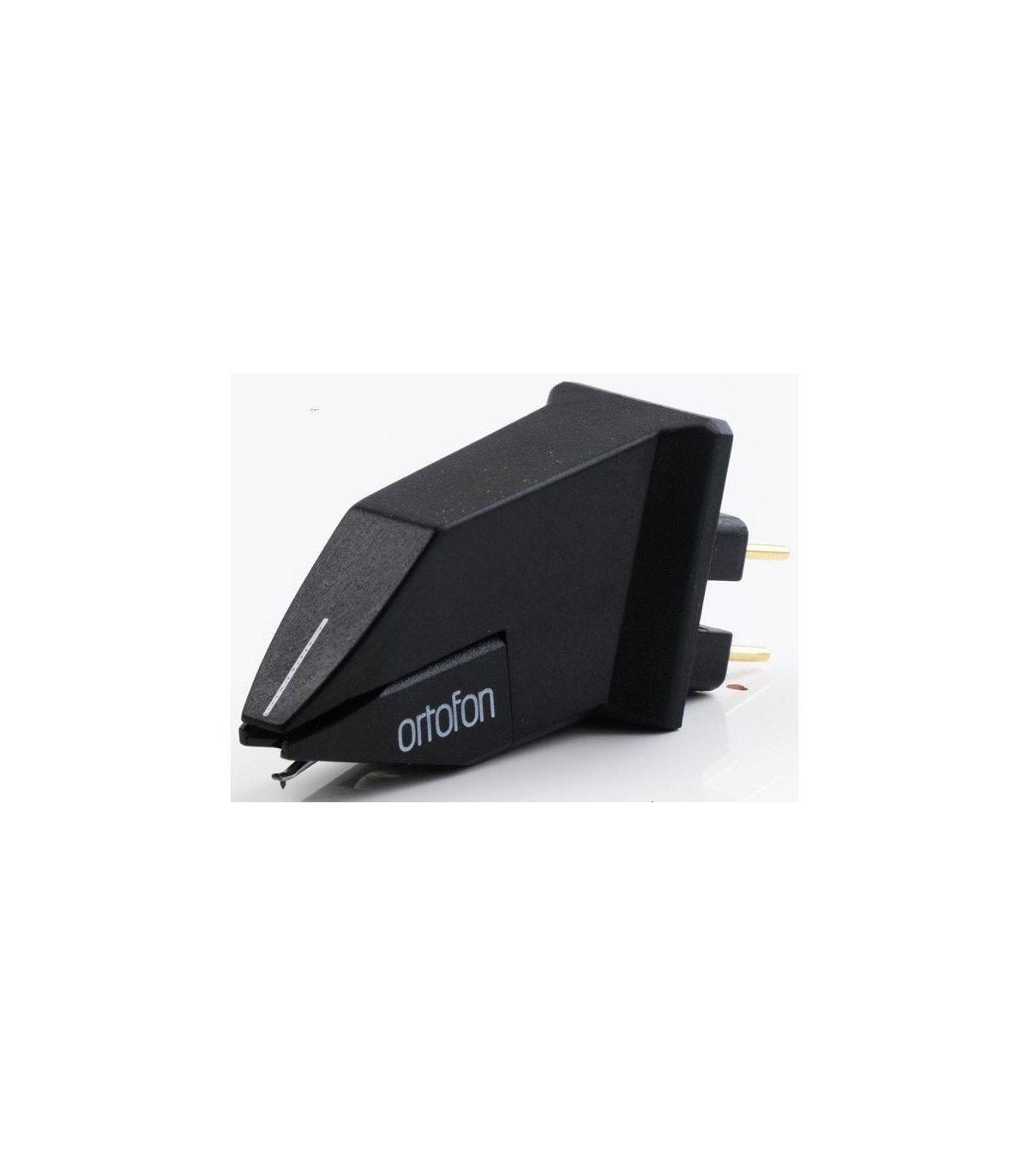

The OMP 10 is a magnetic cartridge (MM) with an elliptical shaped stylus that is a great foray into the world of HiFi, based off of the proven and time-tested OM series.
The P-mount OMP 10 has been designed for tonearms with T4P mounting sockets, the plug-in attachment system first introduced by Technics and adopted by Sony, JVC, Grundig and many other manufacturers.
The OMP model requires no change in mass for the simple reason, that its mass is precisely what is specified for tonearms with T4P mounts.
