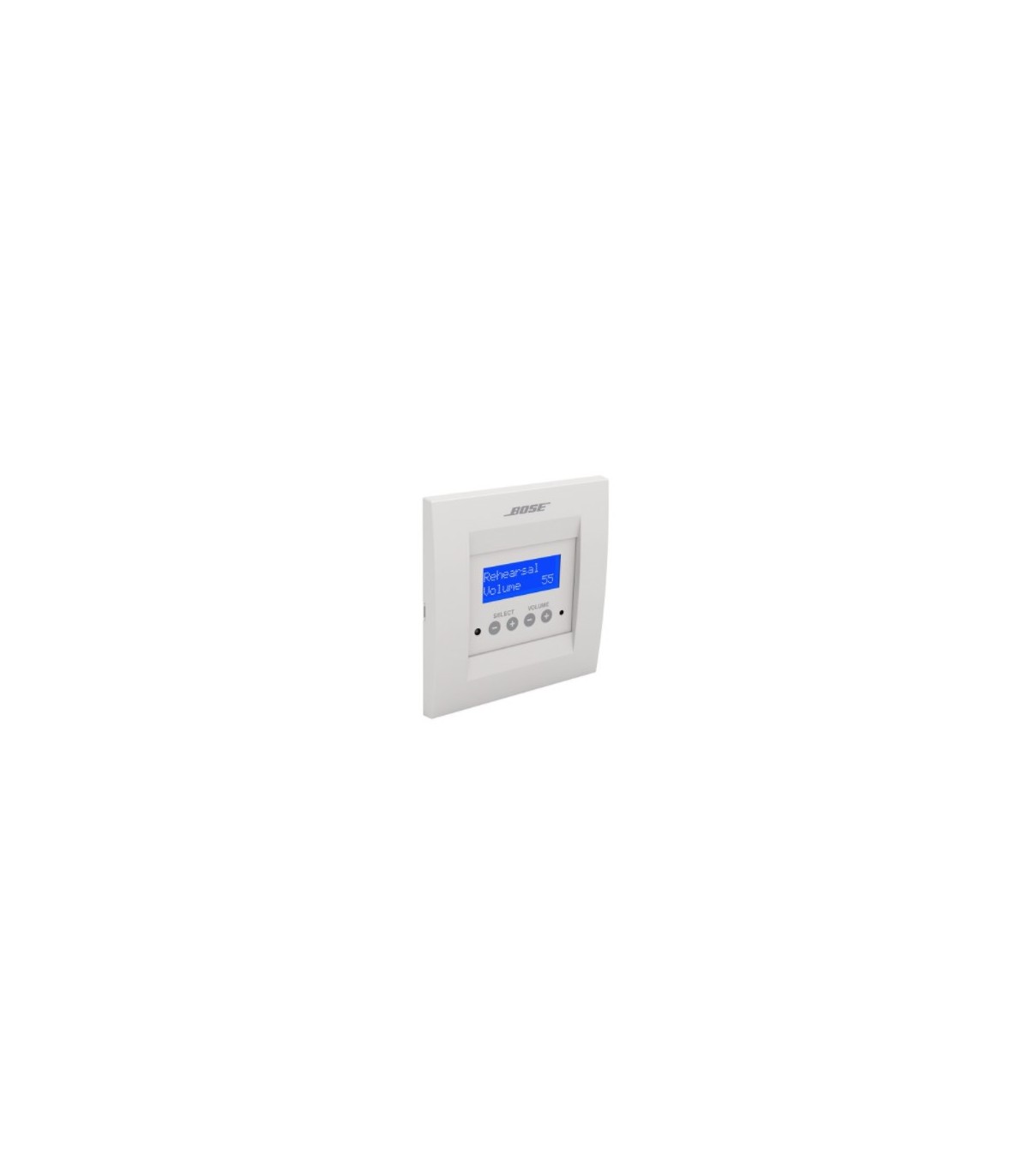

The Bose® ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
Technical Specifications
Connectors
Fixed 6-position terminal connector for power (Vin+, GND) and RS-485 (A, B)
Maximum Cable Length
2000' (609 m), twisted pair, daisy-chain wired configuration
Maximum Number of Units Per System
15 per ControlSpace ESP processor
Power Supply Requirement
8 - 18 VDC, 100 mA
Features
Elegant styling with intuitive controls for end user operation
122 x 32 pixel backlit blue LCD
Sealed VOLUME +/- and SELECT +/- pushbuttons
Simplified drag-and-drop setup using ControlSpace® Designer™
DIP switch addressing on back of unit
Programmable control of system elements (switching of audio sources, system configurations)
Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
Customizable on-screen wording provides easier system operation
Programmable software lock out
Fits into a standard 2-gang electrical wall box
