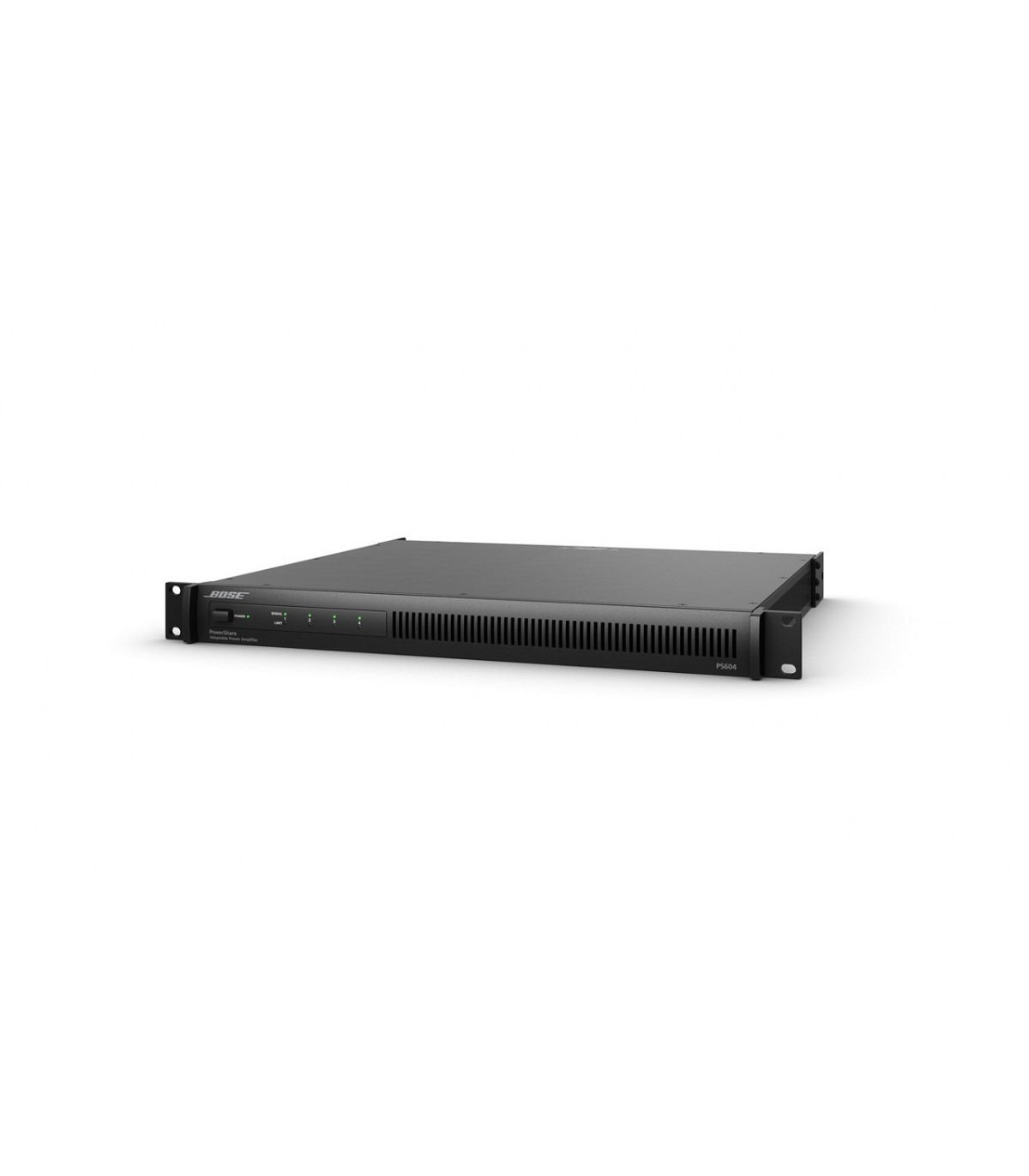

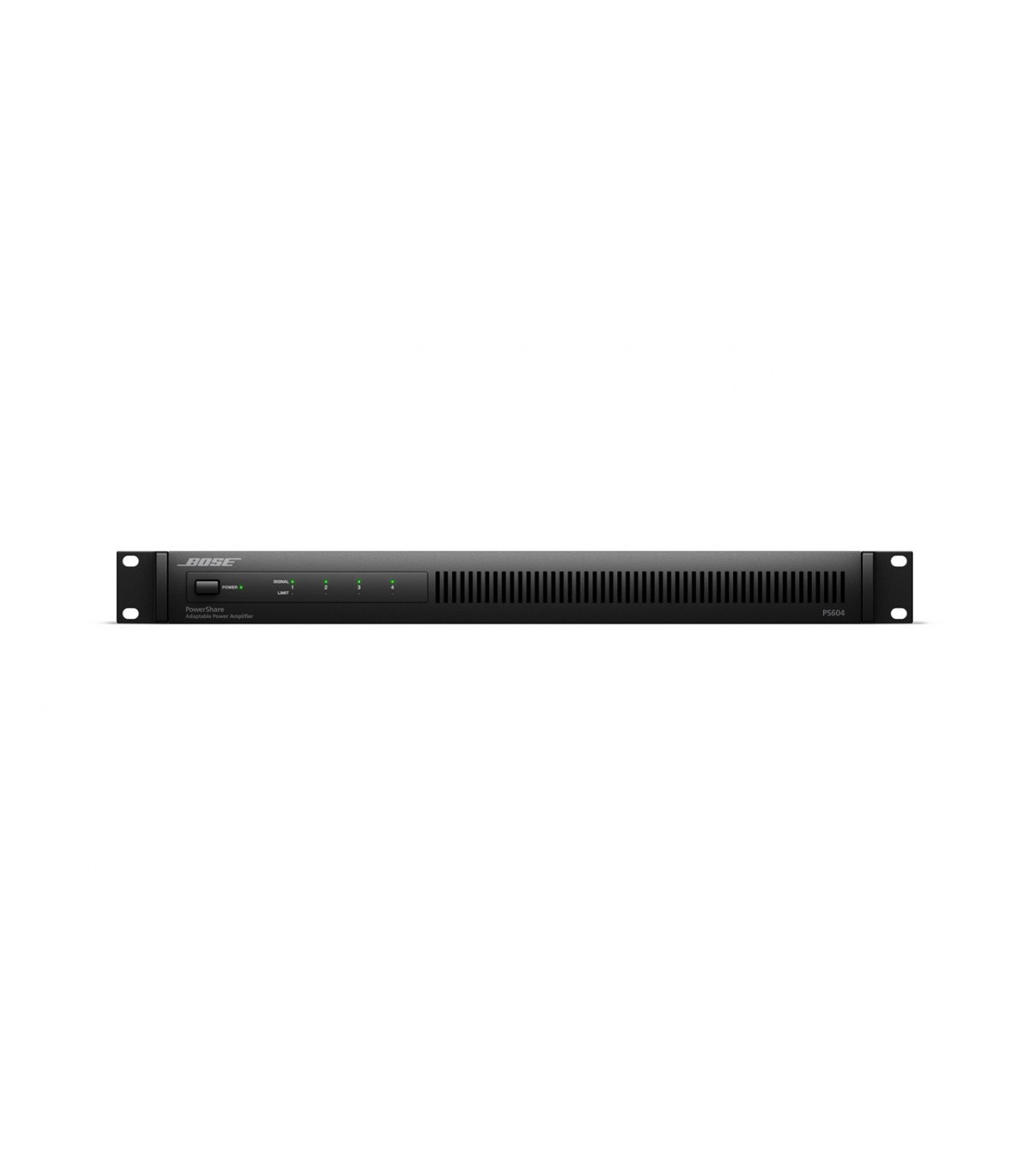

The PS604 is a 4-channel installed amplifier that allows its total 600 watts to be shared across all four outputs. Independently control the output level, EQ, and low-impedance/high-impedance (Low-Z/Hi-Z) settings for each output. Onboard configurable loudspeaker processing and direct access to zone controllers eliminate the need for an additional signal processor in many installations, while outstanding audio performance and reliability are assured with patented technologies inherited from the field-proven PowerMatch® line. This unique set of features and technologies makes PowerShare one of the most versatile high-performance amplifiers available.
FEATURES
PowerShare Technology
Patented PowerShare technology allows the total 600 watts of power to be shared asymmetrically across all outputs, as each output is capable of delivering full power. Instead of selecting amplifier power based on the needs of the largest zone, installers now have the freedom to use total amplifier power in the application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.
Load-Independent Outputs
Each channel can be configured for low-impedance (4-8 Ω) or high-impedance (70/100V) applications without bridging, use of jumpers, or software settings.
DFL™ System
The Dual Feedback Loop system, inherited from the field-proven Bose PowerMatch® amplifier line, improves performance and reliability through continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion, while protecting loudspeakers.
Integrated Loudspeaker Processing with Optional PowerShare Editor Configuration
For applications requiring additional signal processing the PowerShare Editor Software offers real-time selection and control of Bose loudspeaker EQs, 9-band PEQs, mixing, crossover, limiters, delay, and mute/output polarity through a USB connection. For basic setups without a PC, rear-panel settings allow installers to recall Bose loudspeaker equalization and protection per output channel. These features eliminate the need for an external signal processor in many applications.
ControlCenter Zone Controller Accessories
Bose ControlCenter CC-1 zone controllers can be directly attached for remote adjustment of amplifier outputs further extending stand-alone amplifier applications.
Auto-Standby
Designed to save power consumption when not in use. PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns.
SPECS
Technical Summary
Amplifier power
4 x 150 W
Maximum power per channel
600 W @ 4-8 Ω, 70/100V
Input channels
4 balanced
Outputs
4

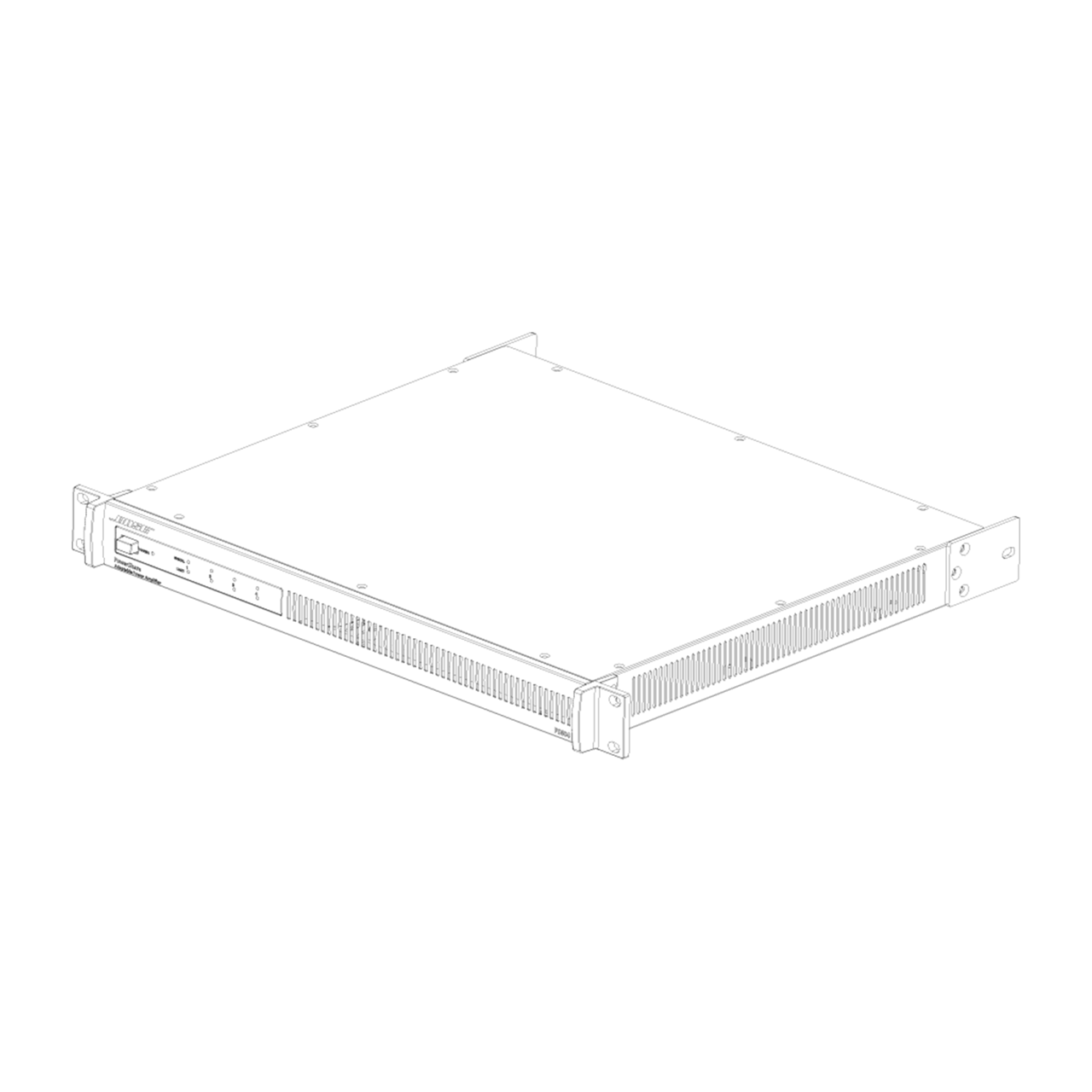

Mechanical Diagrams

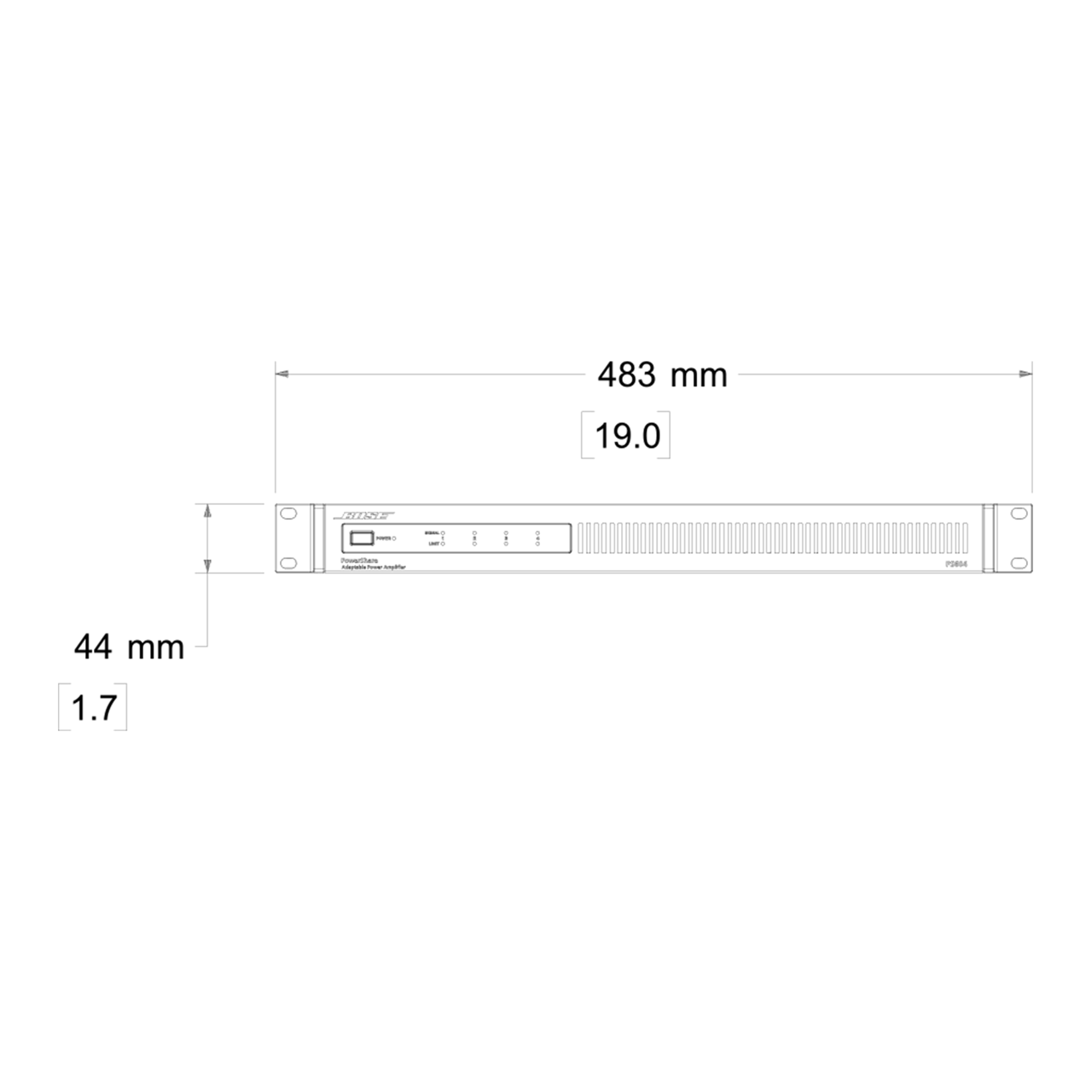

Front View

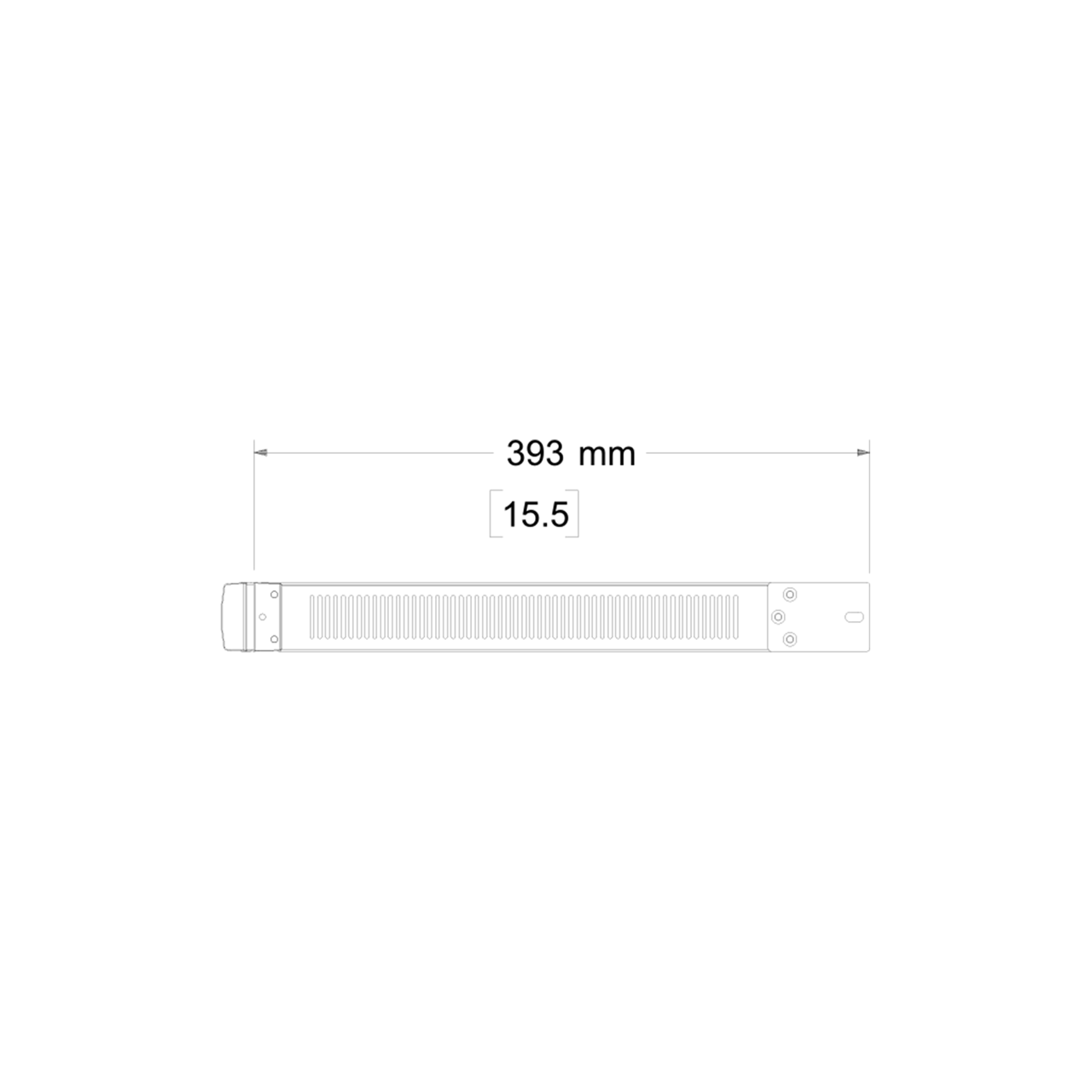

Side View

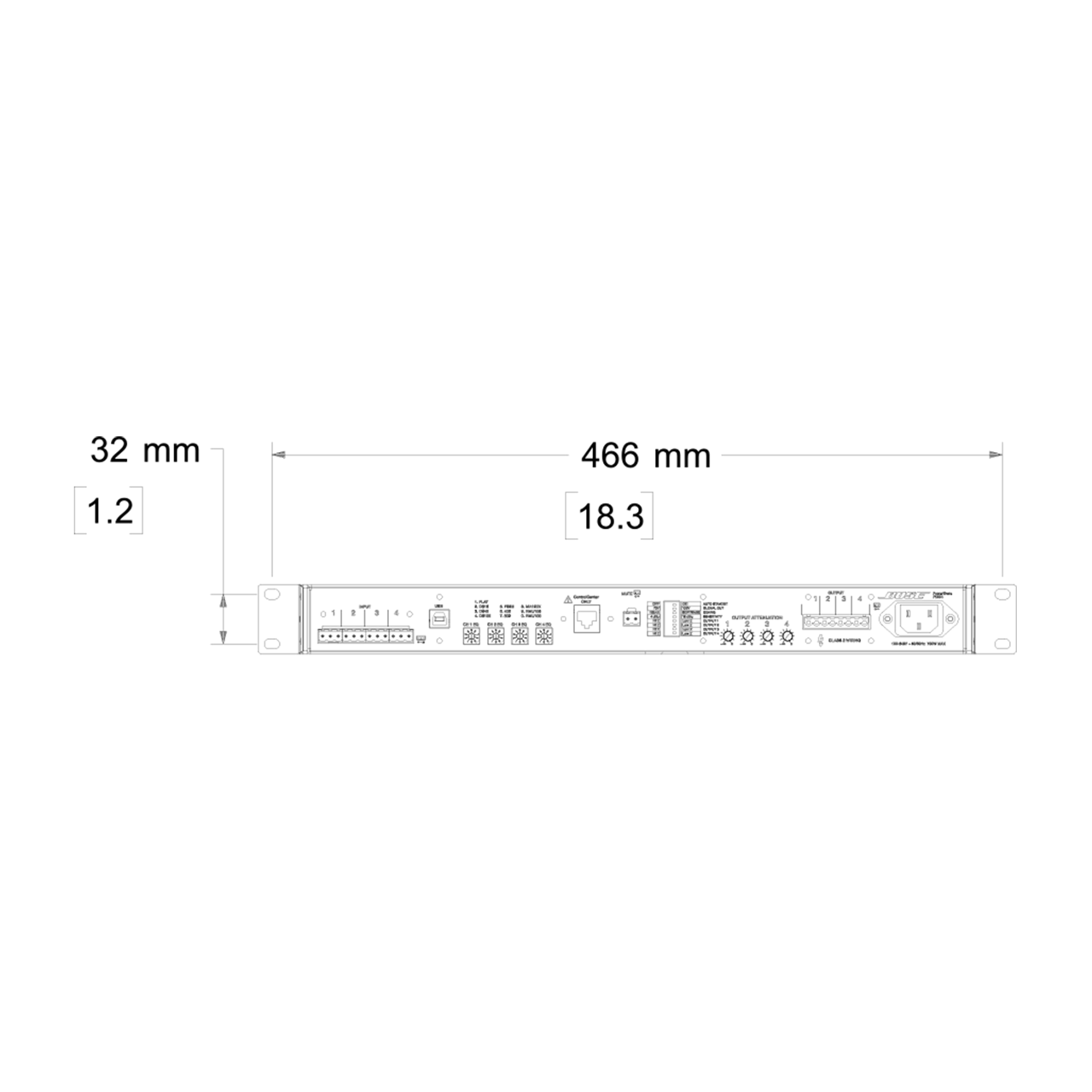

Back View

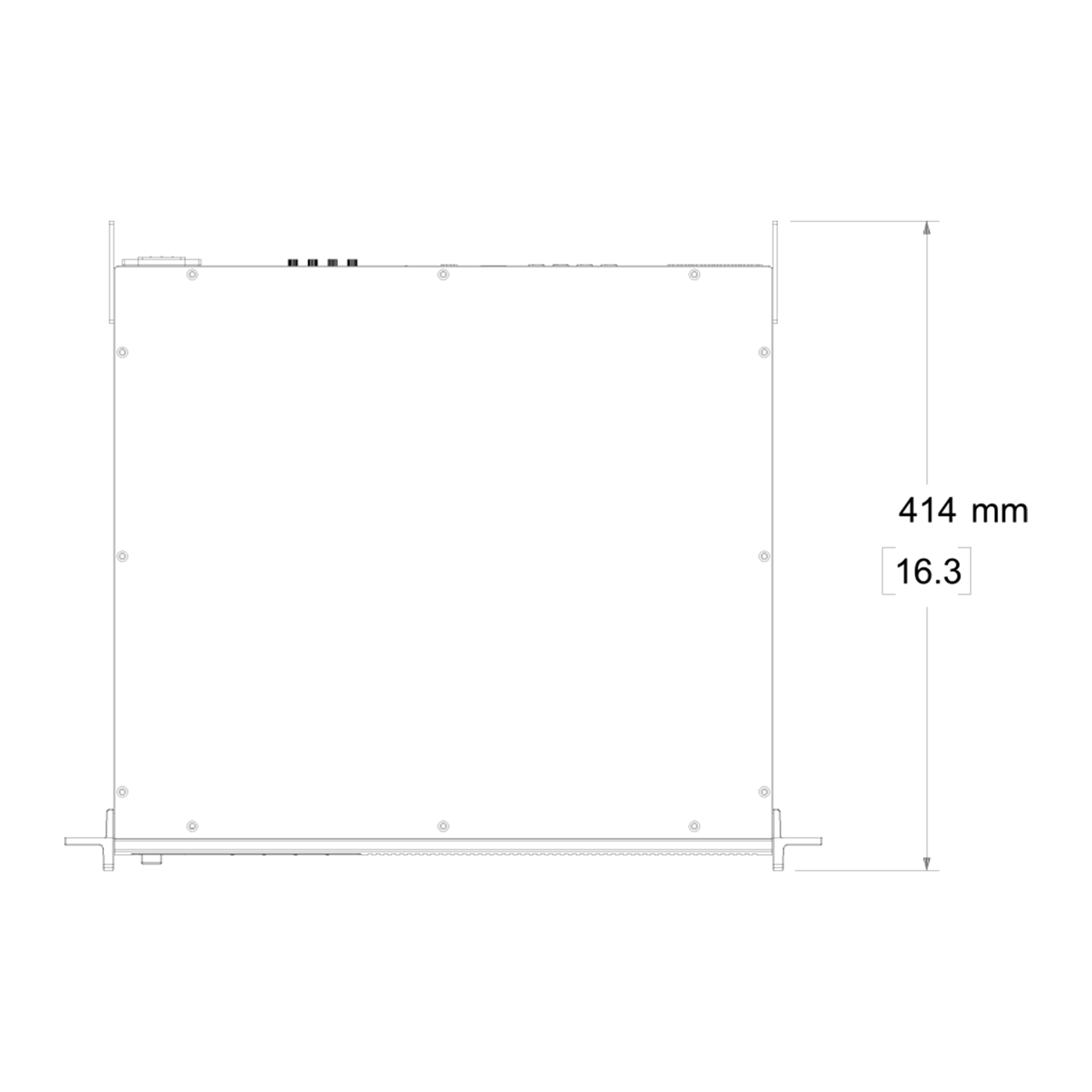

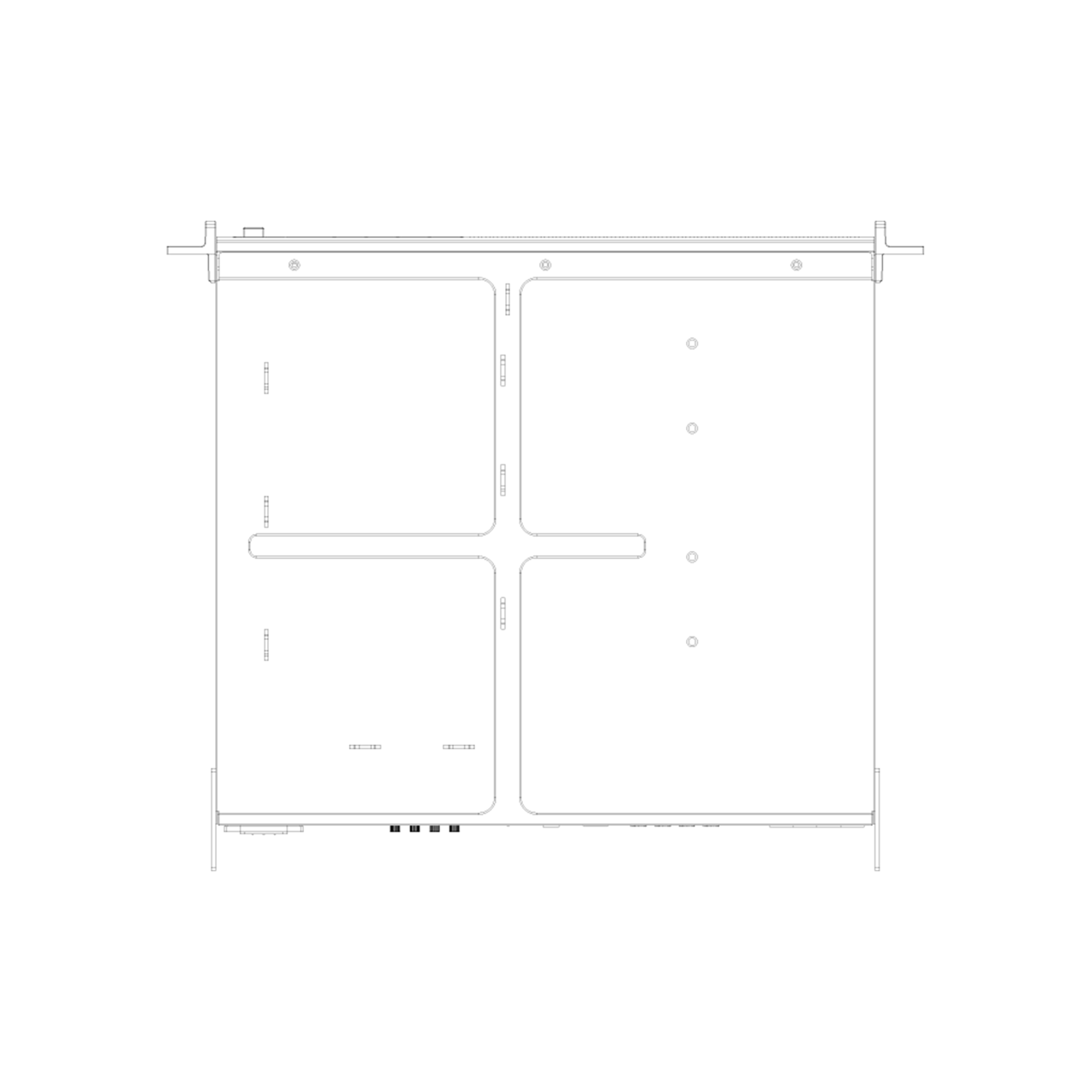

Top View
Bottom View
