Bose® FreeSpace® ZA 250-LZ and ZA 190-HZ zone amplifiers are designed to provide basic amplification and sound system expansion when using front-end signal processing from products such as the FreeSpace IZA 250-LZ / IZA 190-HZ integrated zone amplifiers, the FreeSpace 4400 business music system and ControlSpace® engineered sound processors.
FEATURES
Premium sound quality from a reliable, high quality Class-D amplifier designed to expand sound systems for loudspeaker installations
Expandable amplification allows for easy system expansion when coupled with a FreeSpace IZA 250-LZ integrated zone amplifier. The two amplifiers will function together as one system
Compact, lightweight design enables the FreeSpace zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
Two models available, 4/8 Ω or 70/100 V output, allow for better fit options for specific installations
Applications
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
SPECS
Technical Summary
Amplifier Power
2 x 50 W @ 4 Ω, 2 x 25 W @ 8 Ω
1 x 90 W @ 70/100 V
Frequency Response
20 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
THD+N
≤0.3 % (at full rated power)
Dynamic Range
88 dB
Input Channels
1 Unbalanced
Mechanical Diagrams

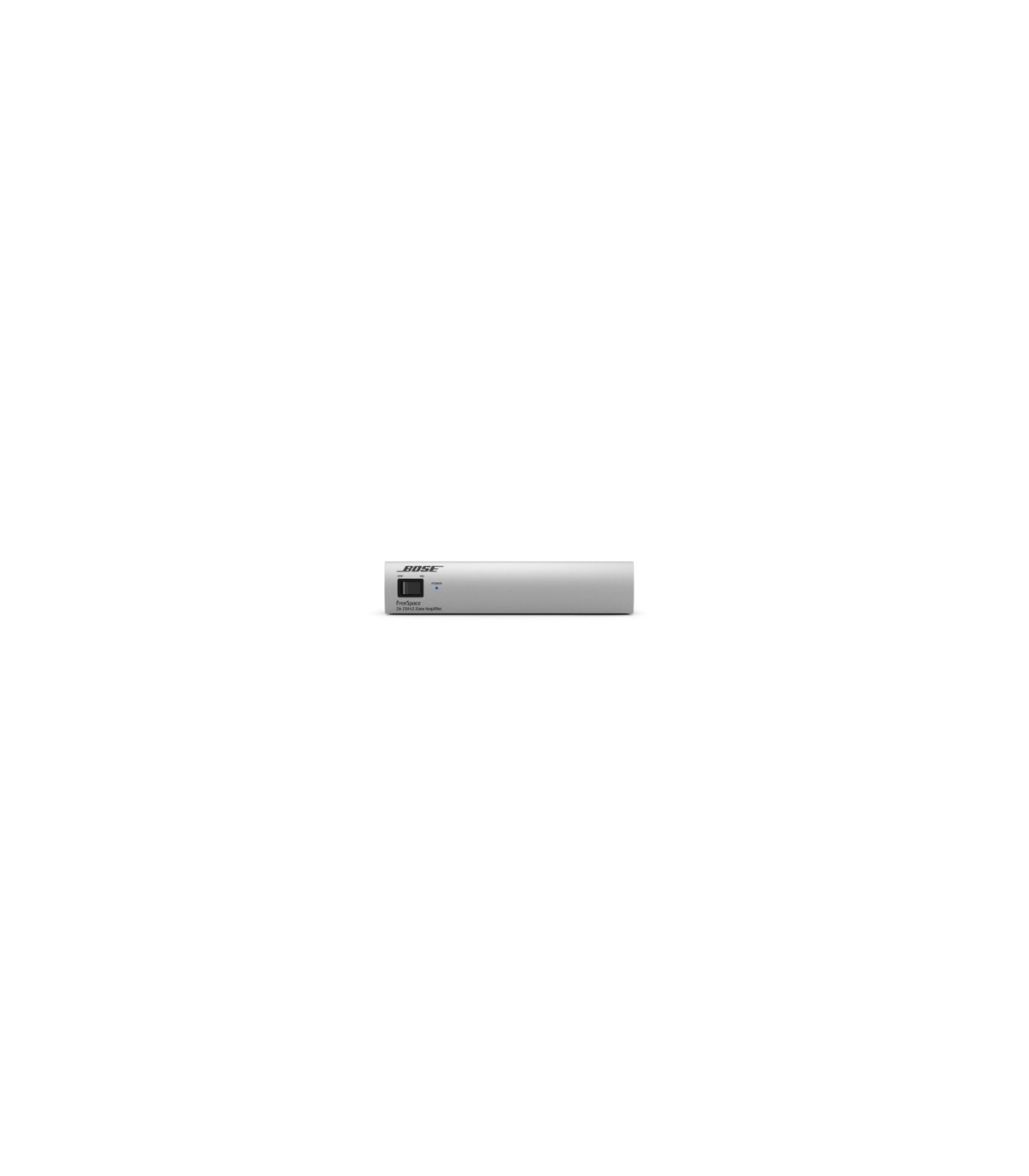

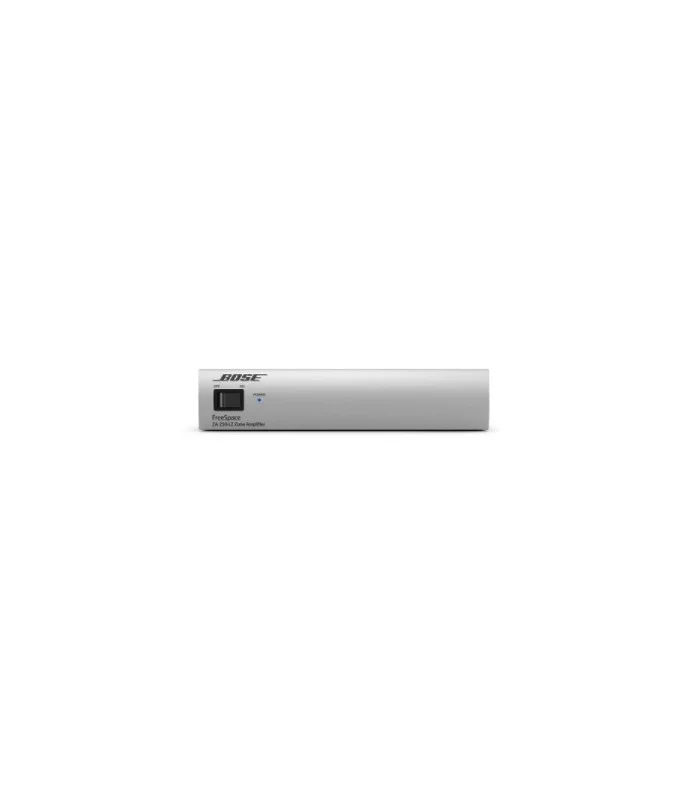

Front View

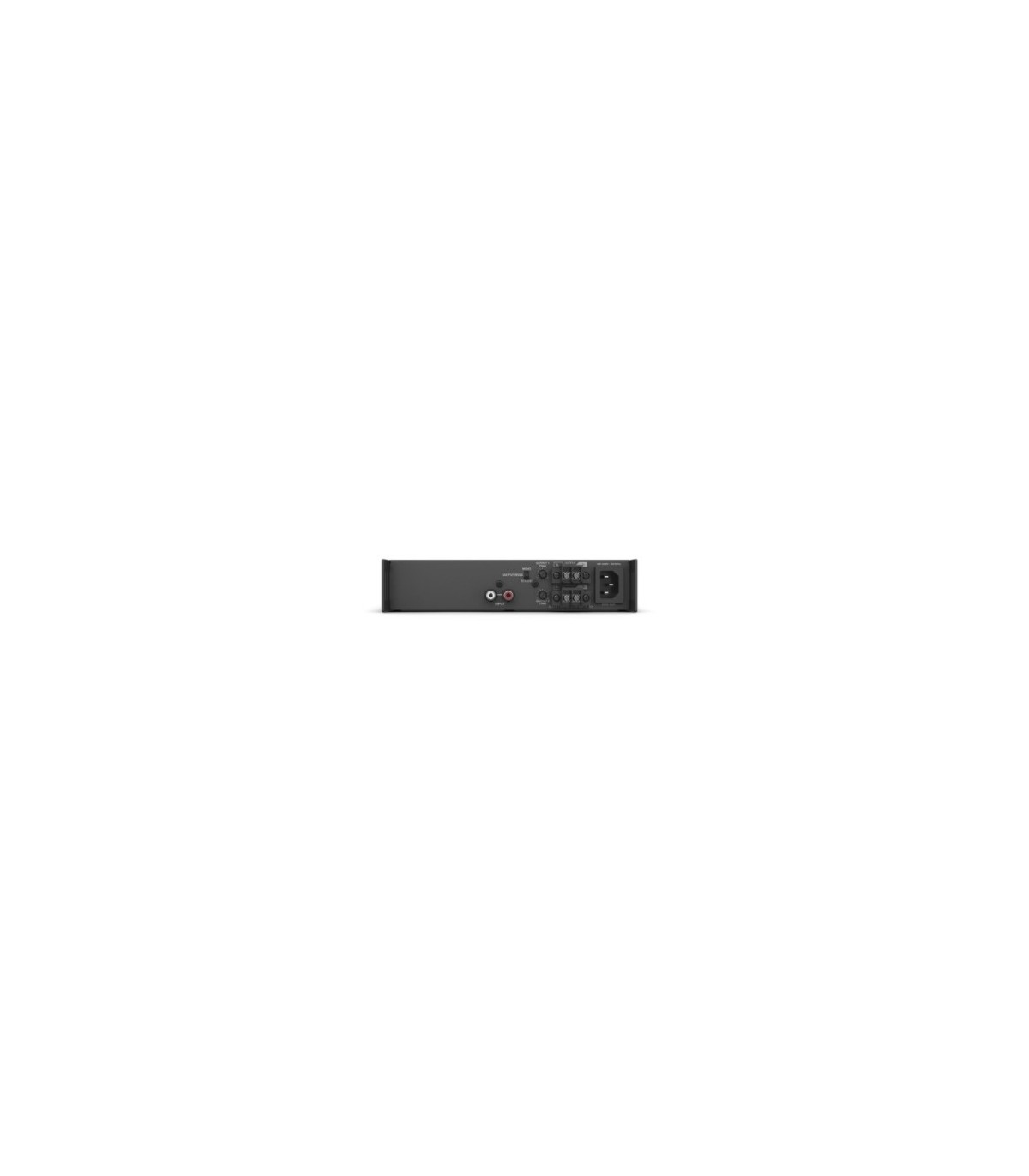

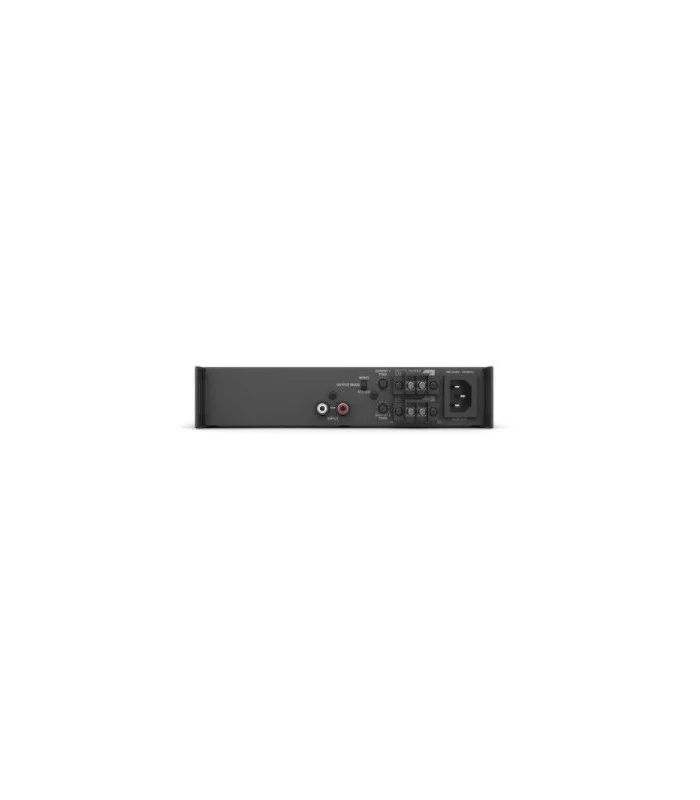

Back View
