The Bose® FreeSpace® ZA 2120-HZ zone amplifier is designed to provide basic amplification and sound system expansion when using front-end Bose® products, such as FreeSpace® integrated zone amplifiers and ControlSpace® engineered sound processors.
FEATURES
Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
Dual remotes support optional volume adjustment for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
Expansion-ready connectivity with FreeSpace® IZA amplifiers when additional sources and loudspeaker processing is required
Intuitive feature setup enables the amplifier to be configured without a PC for remote, input, output and automatic standby options
Auto-Standby feature allows the amplifier to consume less power when not in use
Remote muting allows the amplifier to be muted via a centralized control system
Applications
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
SPECS
Technical Summary
THD+N
≤ 0.3 % (at rated power)
Amplifier Power
2 x 120 W @ 70/100V
Frequency Response
55 Hz - 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz)
Dynamic Range
88 dB
Input Channels
1 unbalanced, 1 balanced

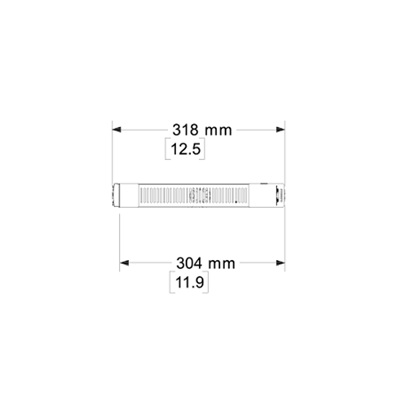

Mechanical Diagrams

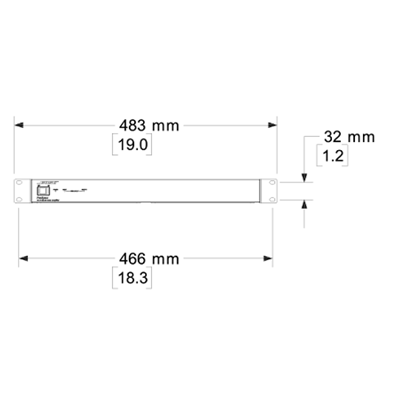

Front View

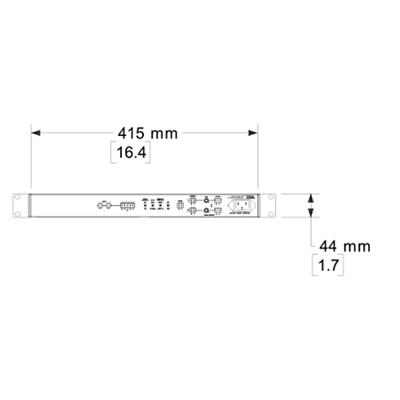

Back View
