The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.
FEATURES
Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input
Two powered outputs that can operate at high or low impedance: 2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V
Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode

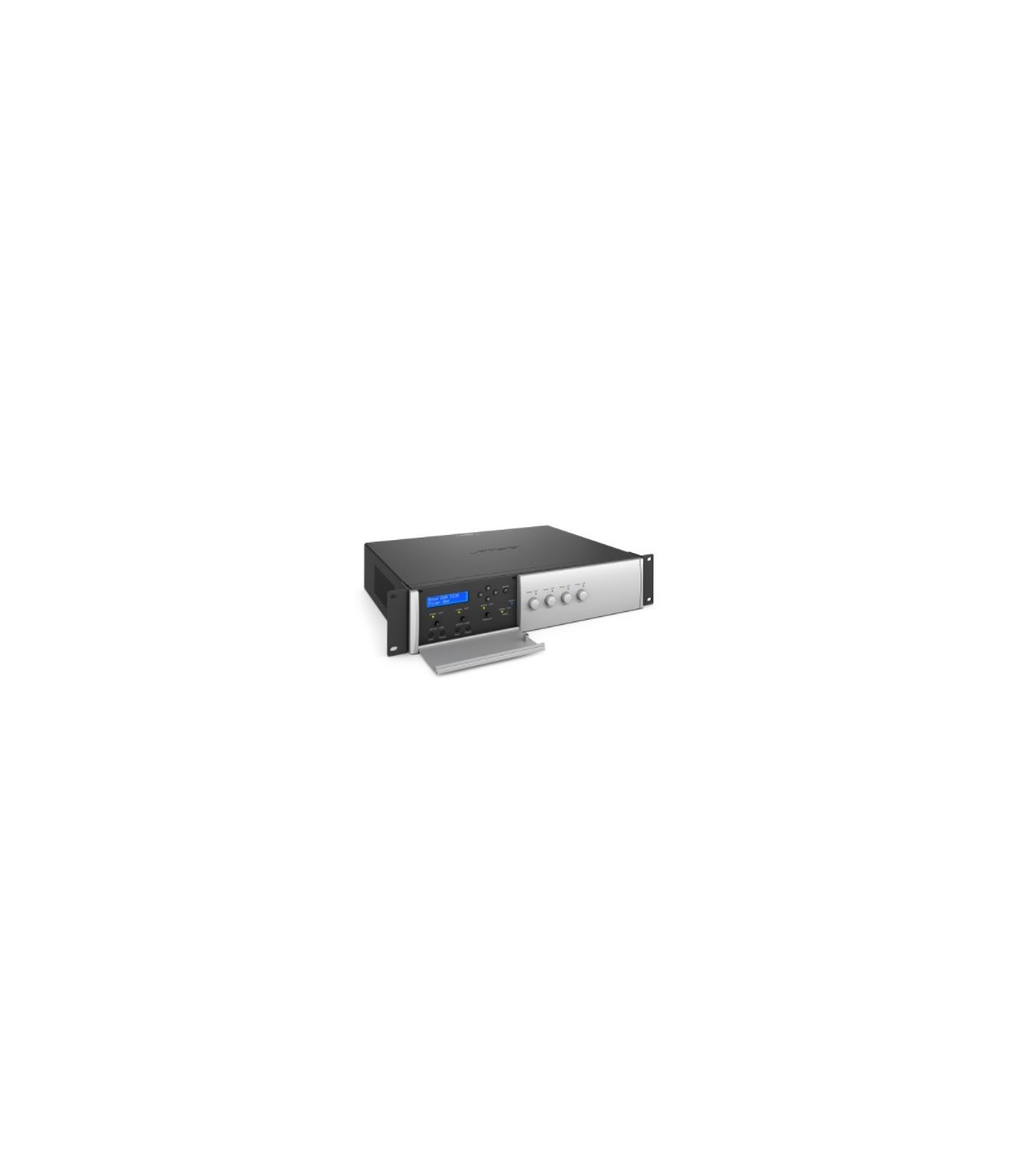

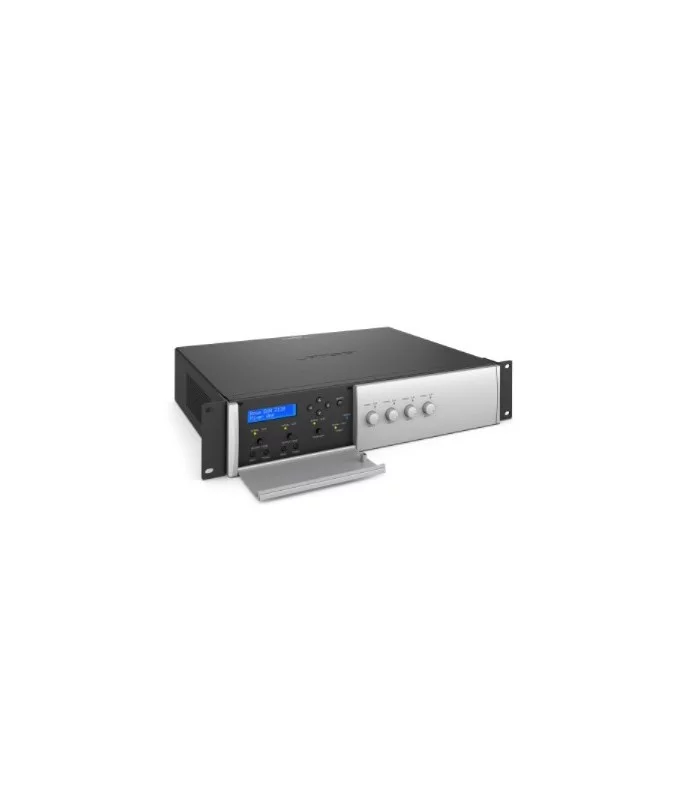

Easy setup and control via onboard controls – no computer needed
DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers
Opti-voice® paging provides a smooth transition between music and announcements
24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems
Applications
- Conference centers
- Retail stores
- Restaurants and bars
- Hotels
- Lobbies and conference rooms
SPECS
Technical Summary
Amplifier Power
2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V
Signal-to-Noise Ratio
75 dB (below rated power, A-weighted)
THD
≤0.5 % (at full rated power)
Dynamic Range
80 dB
Output Channels
2 channels
Input Channels
Mic/Line Inputs: 4 balanced
Line Inputs: 4 unbalanced
Page Inputs: 1 balanced
Direct Inputs: 1 balanced
Mechanical Diagrams

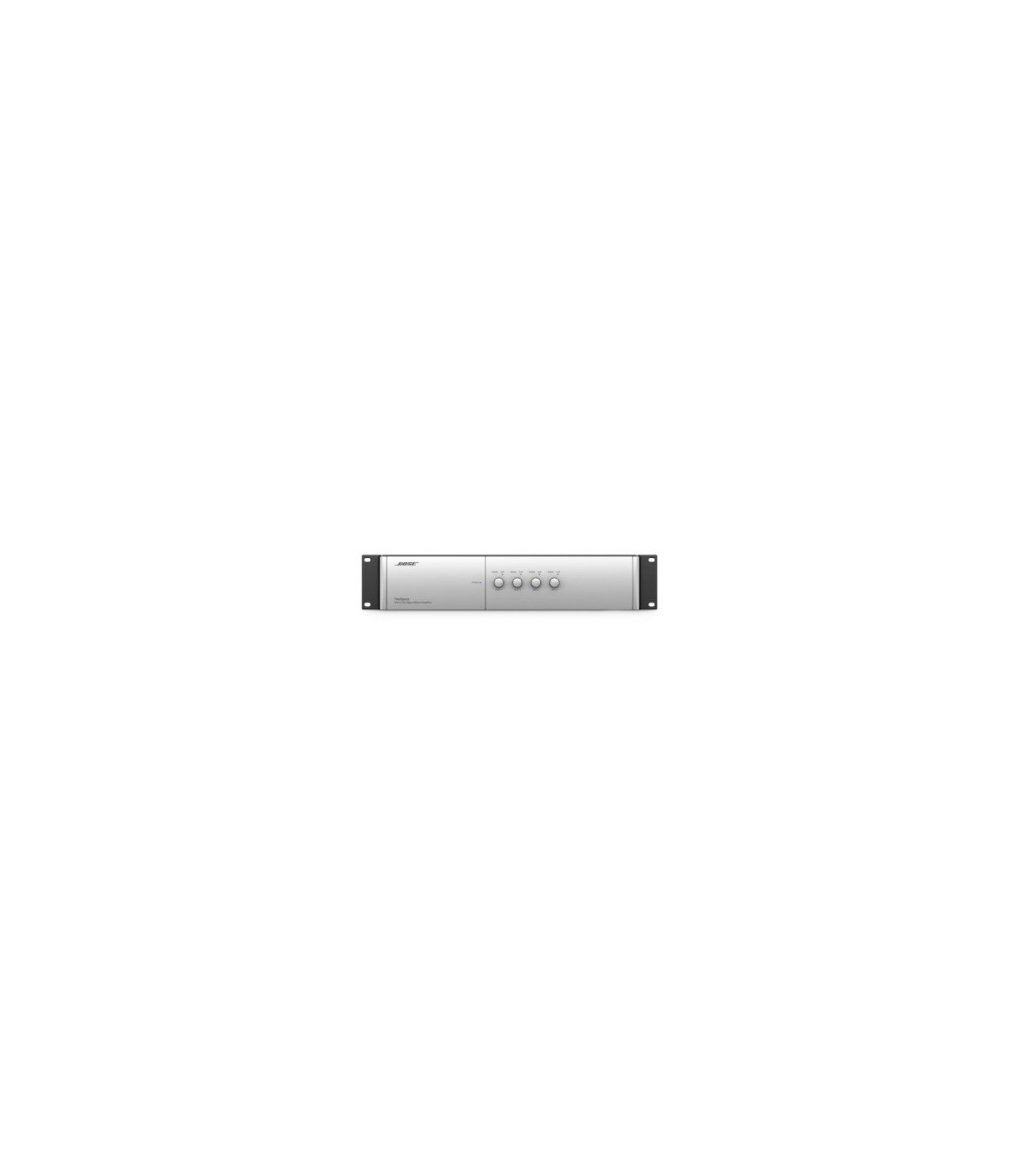

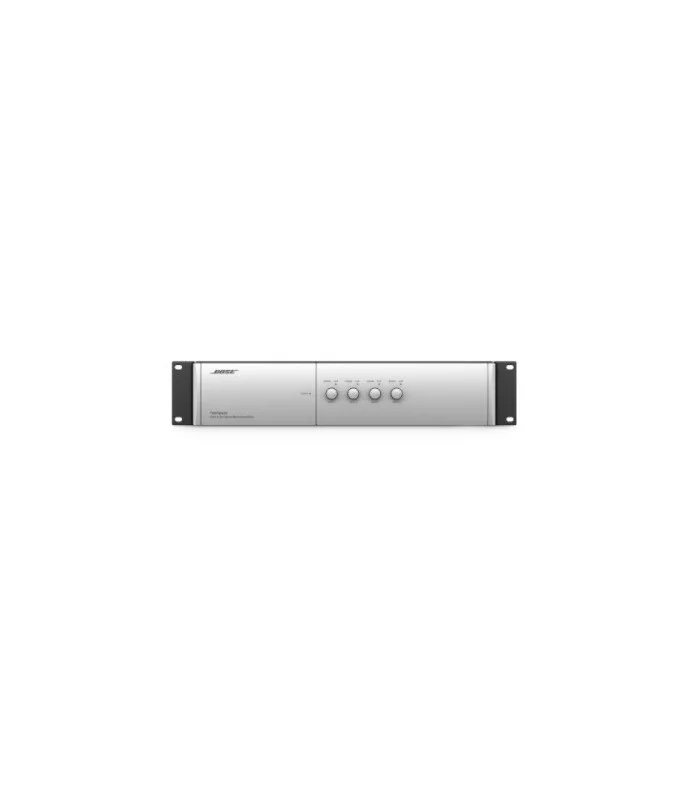

Front View

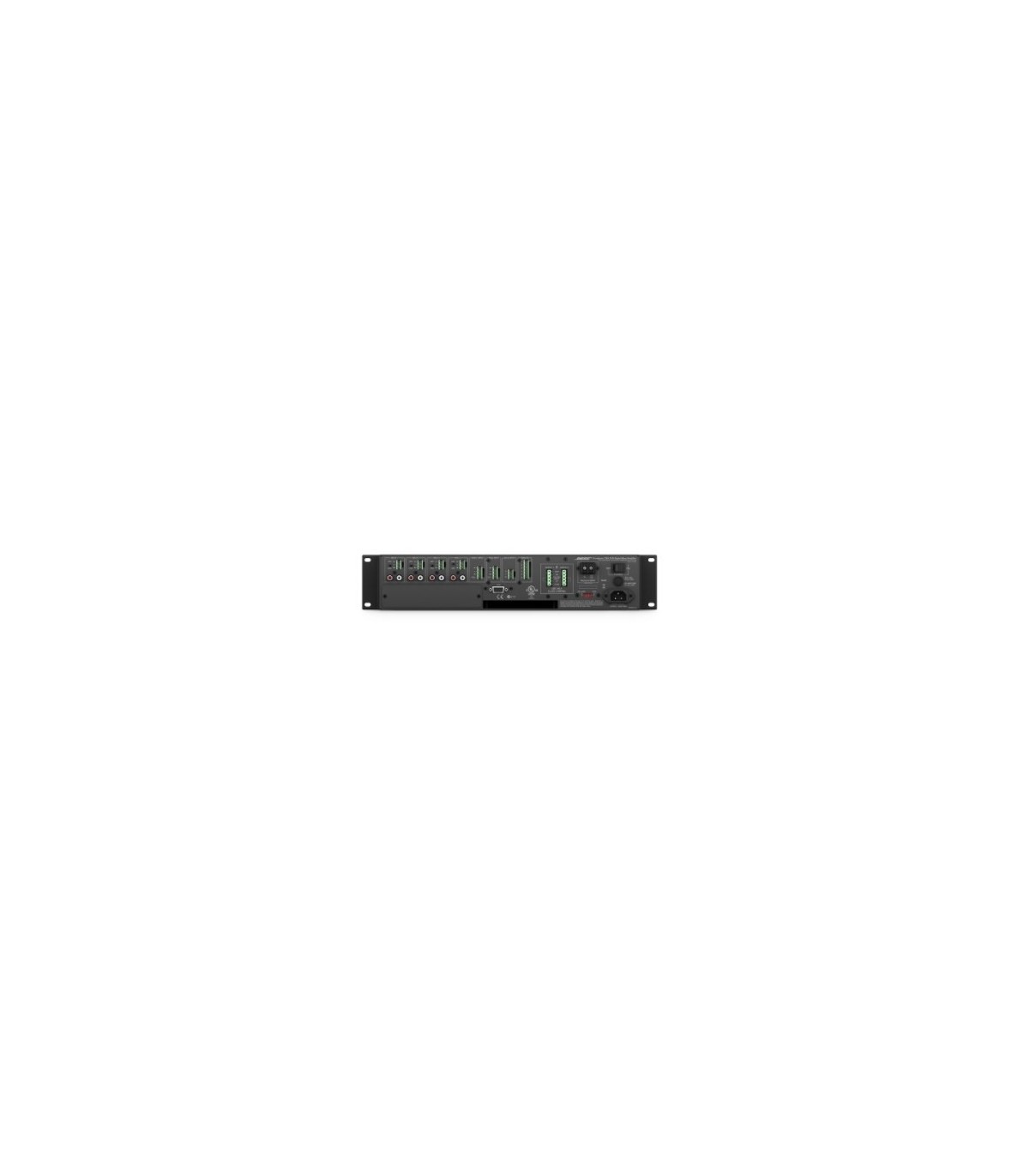

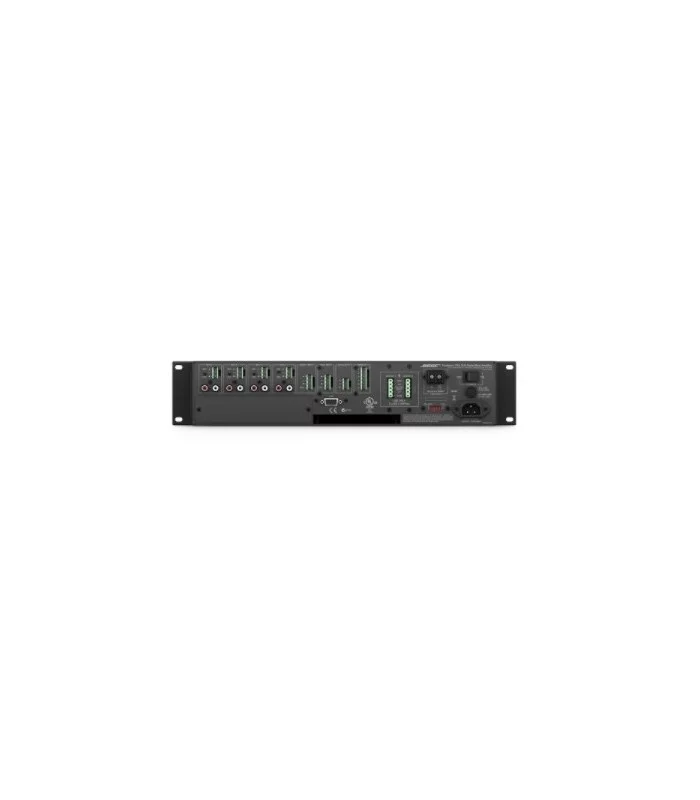

Back View
