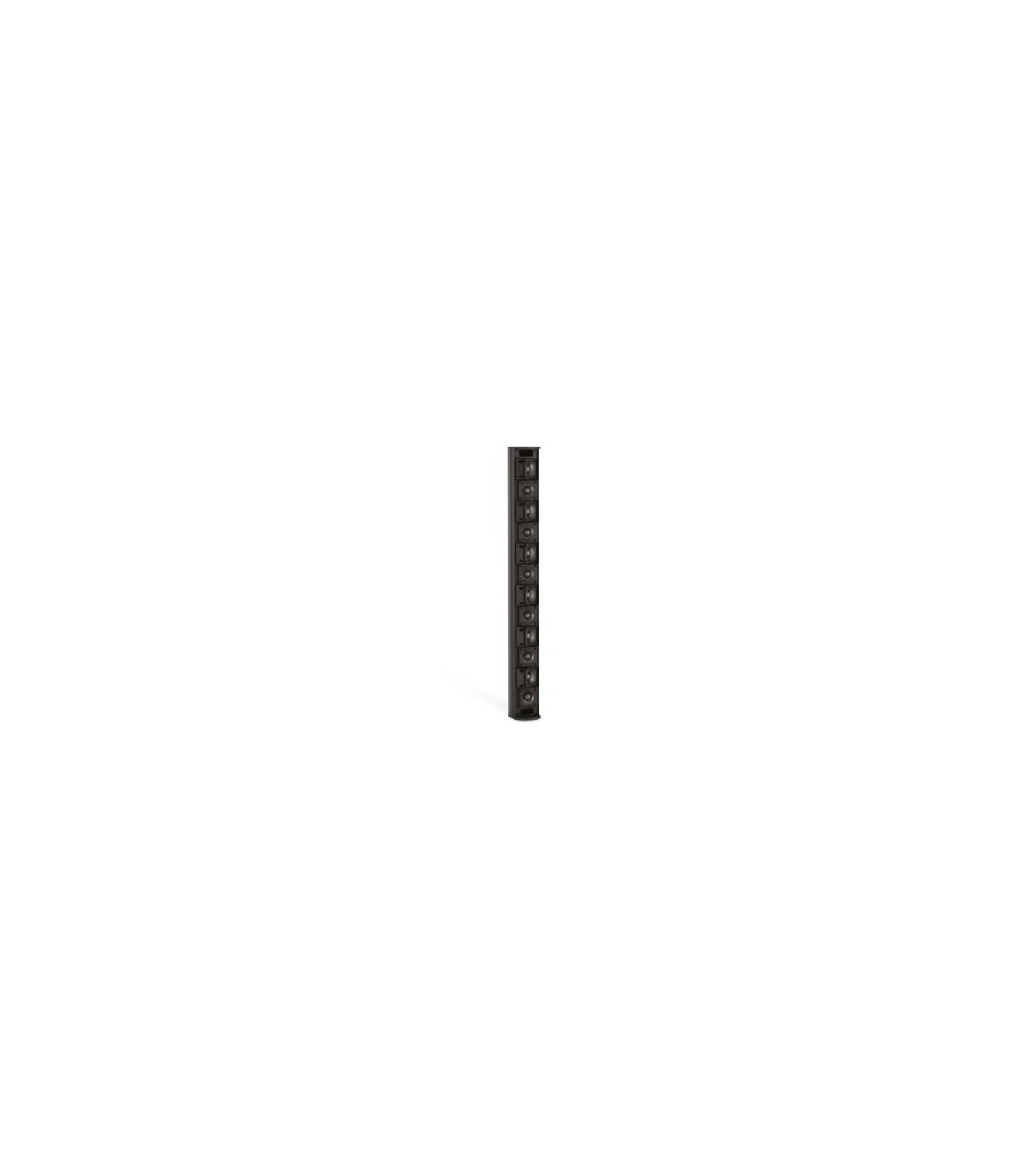

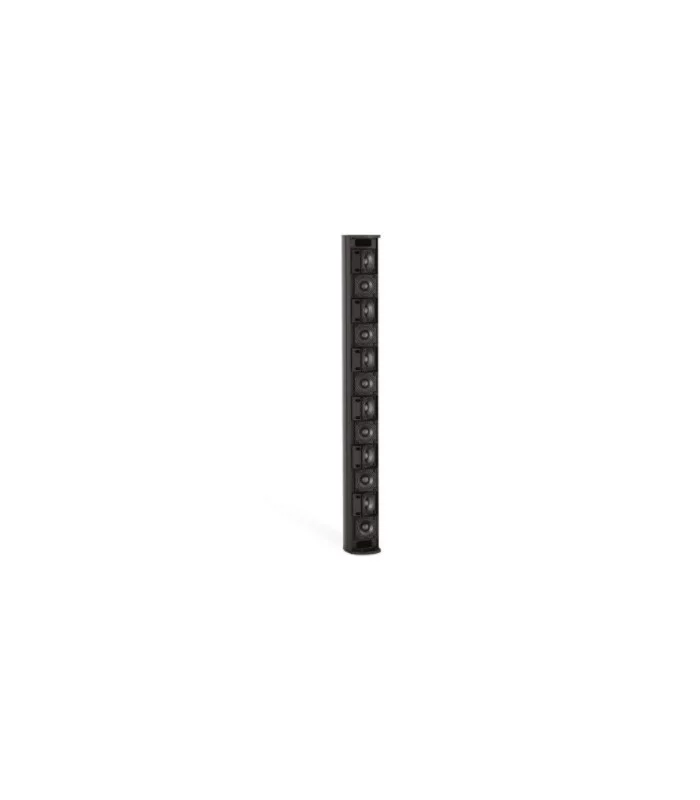

Articulated Array® speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.
For indoor and outdoor applications.
FEATURES
Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Applications
- Houses of worship
- Multi-purpose spaces
- Recreation
- Restaurants and bars
- Auditoriums
- Transportation facilities
- Gymnasiums
- Atriums and malls
SPECS
Technical Summary
Frequency Response (+/-3 dB)
75 Hz - 13 kHz
Frequency Range (-10 dB)
58 Hz - 16 kHz
Nominal Dispersion
160° H x 20° V
Long-Term Power Handling
150 W (600 W peak)
Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL
Maximum SPL @ 1 m
109 dB SPL (115 dB SPL peak)
Nominal Impedance
8 Ω
Mechanical Diagrams
Front View
Top View
