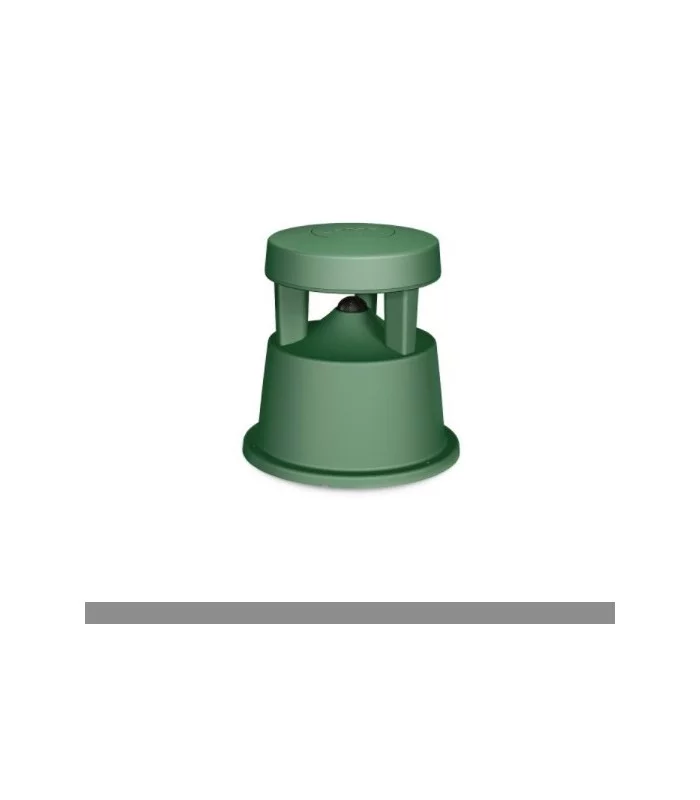

Full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz.
For indoor and outdoor applications.
FEATURES
Full-range environmental loudspeaker with one downward firing 4.5" (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting

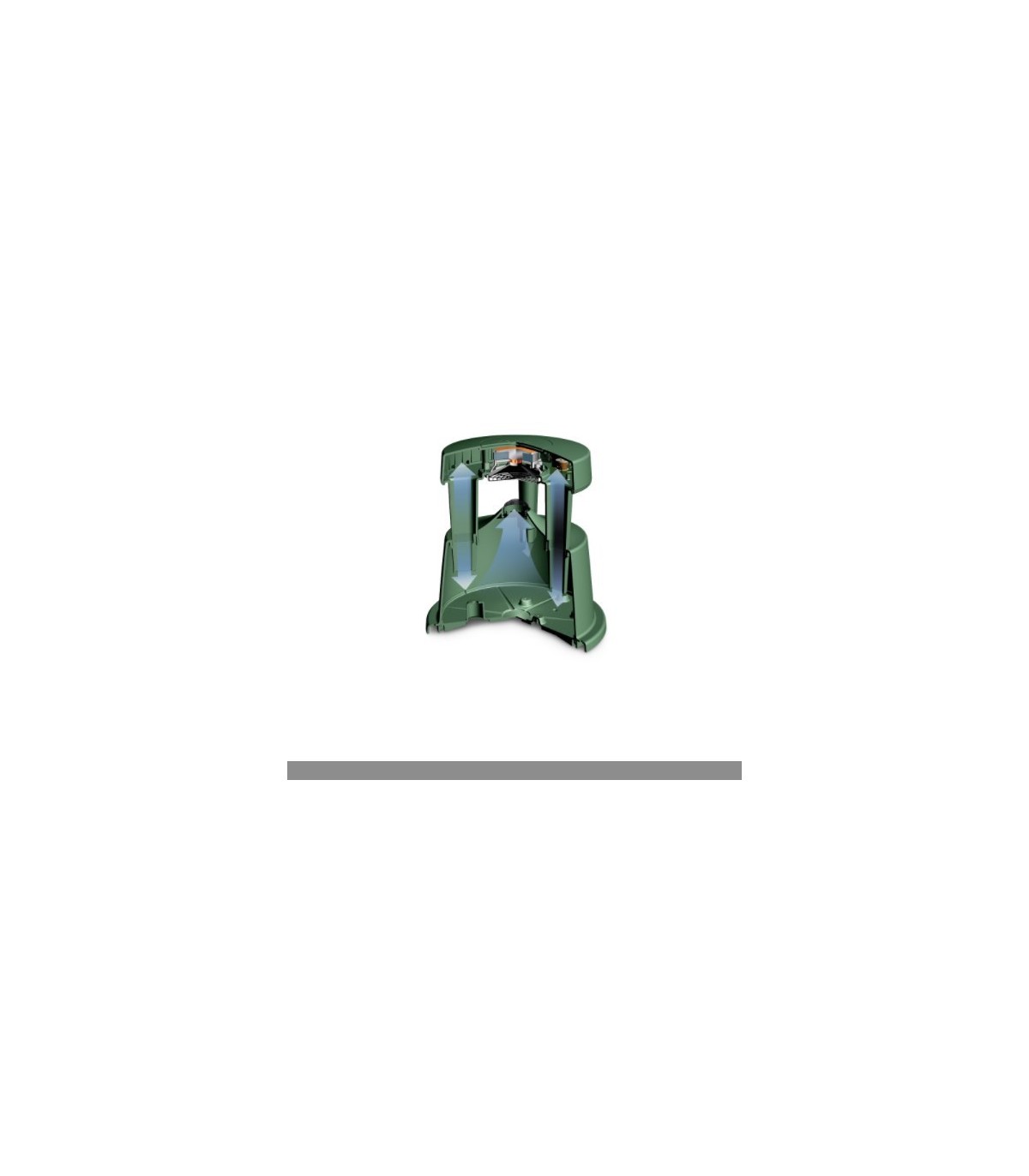

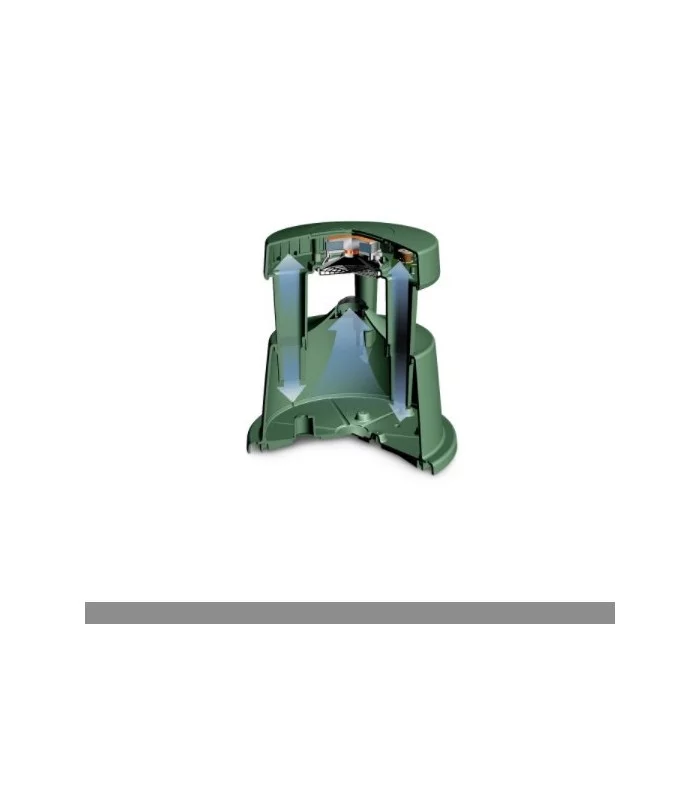

Domed port grille reflects sound into the listening area for clear, consistent performance
Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure
Multi-tap line transformer provides easy-to-change tap settings
Tamper-resistant design
Internal speaker protection circuit safeguards drivers
Applications
- Shopping centers
- Restaurants and bars
- Cafes
- Resorts and hospitality venues
- Theme parks
- Atriums and malls
SPECS
Technical Summary
Frequency Response (+/-3 dB)
70 Hz - 10 kHz
Frequency Range (-10 dB)
60 Hz - 15 kHz
Nominal Dispersion
360° H x 50° V
Long-Term Power Handling
80 W (320 W peak)
Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL
Maximum SPL @ 1 m
100 dB SPL (106 dB SPL peak)
Nominal Impedance
4 Ω (transformer bypassed)
Mechanical Diagrams
Top View
Bottom View
