Entry-level, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. Wide, even 140° conical pattern and frequency range down to 80 Hz.
For indoor applications only.
Meze 109 Pro Primal
Ruark Audio R1S
Bose Pro FREESPACE DS 16F
Marque:
Entry-level, full-range, flush-mount loudspeaker designed for background music and speech reproduction in a wide range of installed applications. Wide, even 140° conical pattern and frequency range down to 80 Hz.
Offre spéciale limitée
139,44 CHF
TTC
Lancé à 155,00 CHF
Lancé à 155,00 CHF
Référence:
10551
Aimer0
Ajouter à la comparaison0
Ajouter à la liste de souhaits
EN 54-24 compliant DS loudspeaker models are also available for use in Voice Alarm (VA) systems. Please contact your local Bose team for availability information.
FEATURES

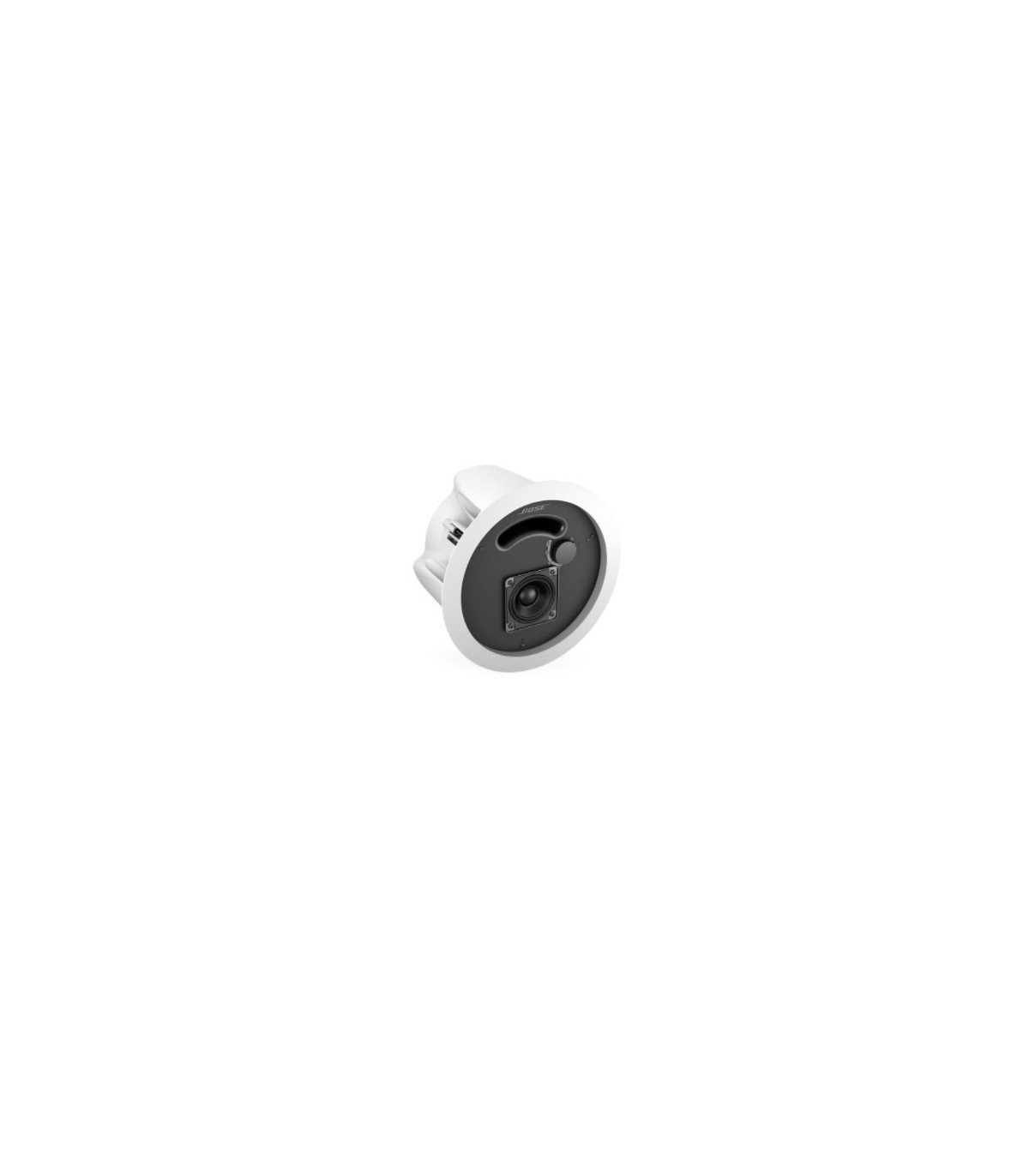

Full-range loudspeaker with a single 2.25" (57 mm) driver in a ported enclosure to deliver a 140° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass® module for extended bass response
Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille
Applications
- Retail stores
- Restaurants and bars
- Concourses
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
SPECS
Technical Summary
Frequency Response (+/-3 dB)
95 Hz - 17 kHz
Frequency Range (-10 dB)
80 Hz - 19 kHz
Nominal Dispersion
140° conical
Long-Term Power Handling
16 W (64 W peak)
Sensitivity (SPL / 1 W @ 1 m)
84 dB SPL
Maximum SPL @ 1 m
96 dB SPL (102 dB SPL peak)
Nominal Impedance
8 Ω (transformer bypassed)
Mechanical Diagrams

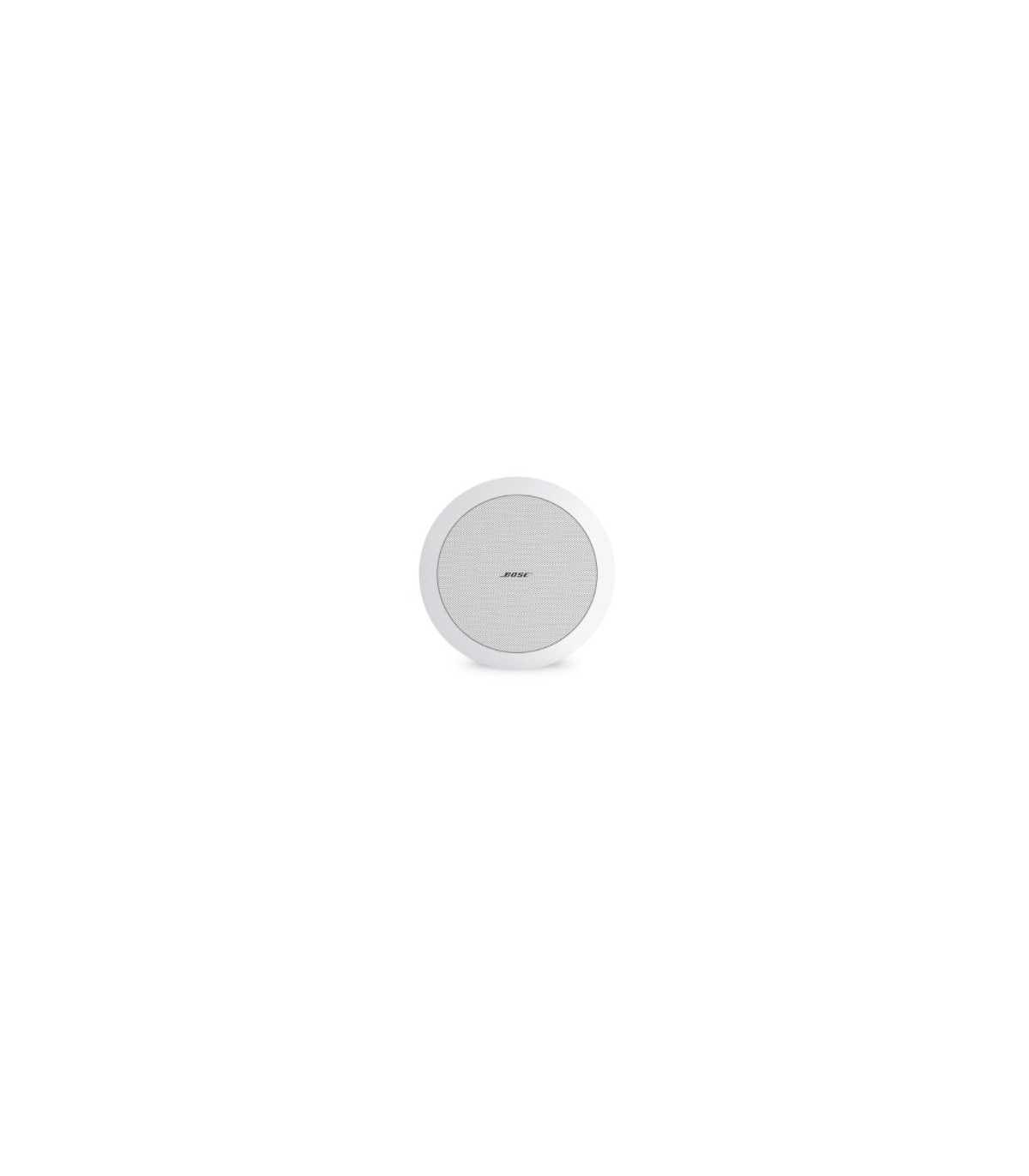

Front View

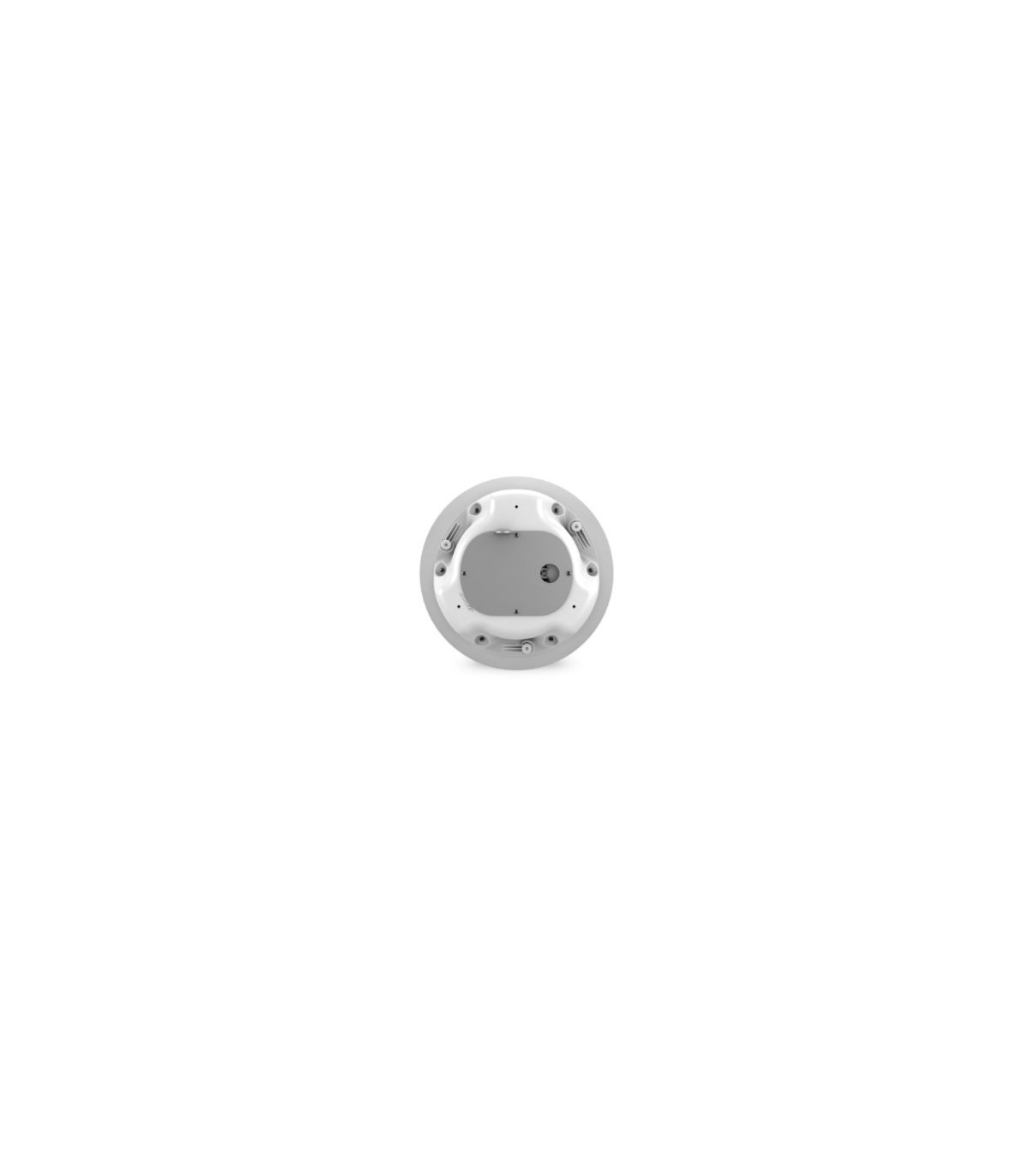

Rear View
