ECI 6DX

Marque:

Amplificateur intégré 2x125W DAC et Streaming, Airplay, DLNA

Qobuz, TIDAL, Spotify Connect, WiMP, Inernet Radios

Lire la suiteShow less
7 190,00 CHF TTC
Couleur
Stock fournisseur
Date de disponibilité: 2017-05-01
Référence:
56791
Aimer0
Ajouter à la comparaison0
Ajouter à la liste de souhaits
Description
All measurements are made at 120V / 240V  //50Hz / 60Hz
Digital section:
D/A converter 24 bit/192 kHz
Sample rate converter 24bit / 192kHz
Inputs SPDIF, 2x Toslink, 1x USB
USB:                                     asynchronous  up to 24bit/ 192kHz supported
SPDIF:                                  24bit/ 192kHz
Toslink:                                24bit/ 96kHz



Streamer section
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app

Streaming services
• Spotify Connect
• TIDAL
• WiMP
• Qobuz
• AirPlay
• Internet Radio
• DLNA as renderer



 Supported formats:
• All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, AC3, DTS, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)

Preamplifier section
Input impedance ( Balanced input ) 47Kohm
Maximum input level 10 Volt RMS
Noise floor ( 1Vrms, 20 - 20 kHz, balanced)
-135 dB
THD + N   (1Vrms, 20 - 20 kHz, balanced)     <0.004%
Gain (Balanced) 0 dB

Amplifier section
Output Impedance < 0,02 Ohm
Frequency response 1 – 150 kHz
Channel separation > 120 dB
THD ( 20 - 20 kHz) < 0.004%
Maximum peak current >100A
Damping factor  8 ohm load >350
Input sensitivity  120W output 1.3Vrms
Input sensitivity HT  120W output 1Vrms
Gain HT Input x36 (31 dB)
Rated output power
8 ohms 2 x 125 W
4 ohms 2 x 200 W
2 ohms 2 x 370 W

Power consumption

110 W

Standby 1W
(no load or signal)

Dimensions
Width 465 mm / 18.3 inches
Depth 405 mm / 16 inches
Height 128 mm / 5 inches
Weight 20Kg / 44 lbs.

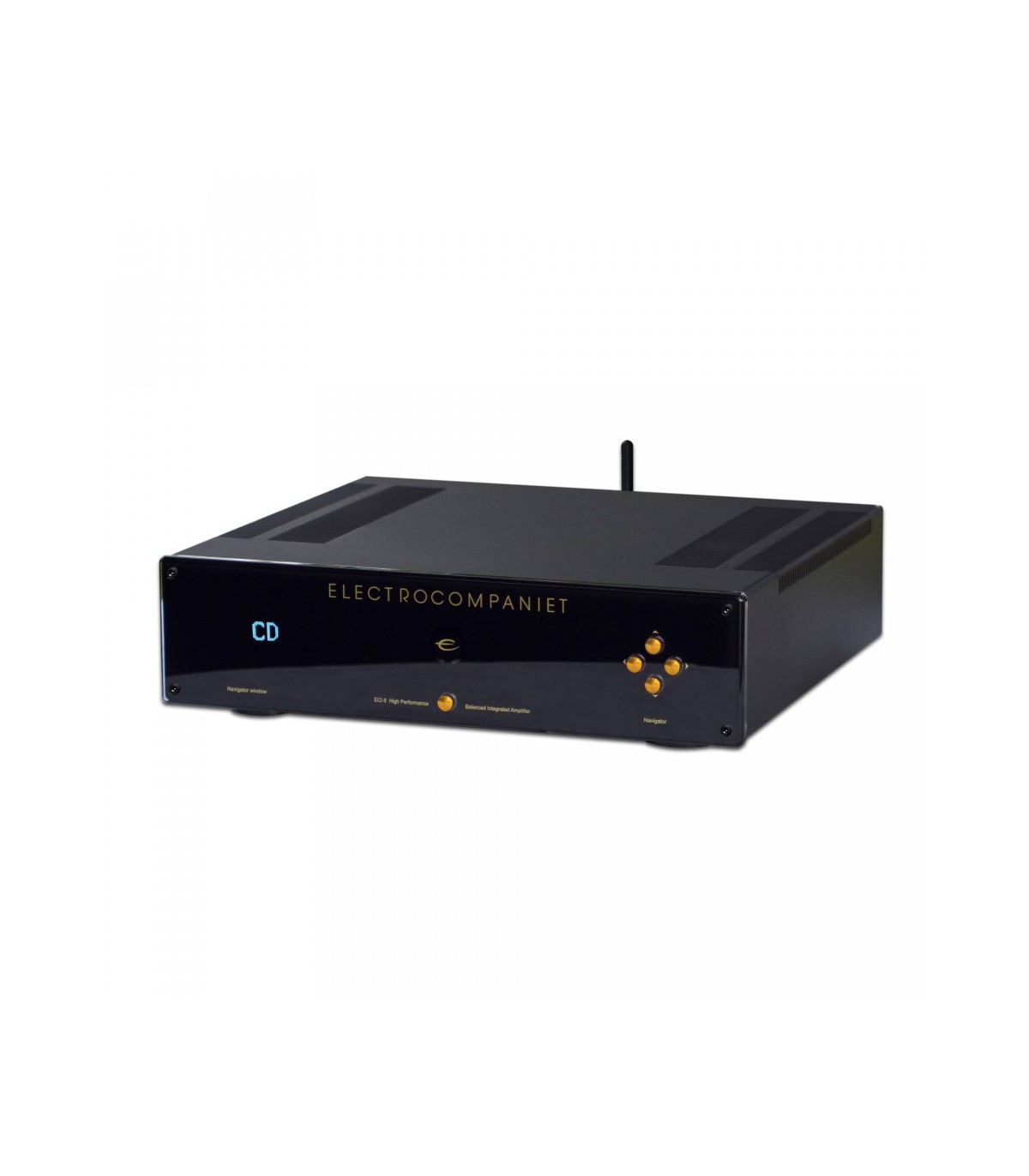

Balanced integrated amplifier with DAC and Next-gen streamer

The ECI 6DX combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound. This single unit is able to play whichever, wherever and whatever audio you might have, and makes it sound like music as it was meant to be.


The built-in streamer is extremely powerful, flexible and easy to use. It can play directly from music services such as Tidal, Qobuz and Spotify, can be fed music through AirPlay or DLNA, and it can even index and play from your own music collection stored in your network. The powerful hardware ensures that all popular formats are supported (including DSD) and that continuous software upgrades can support the latest and greatest streaming services.


The streamer shares the same DNA as the ECM 2 and the new EC Living product line. This means that you can use the same apps and interface, and play all of the same music on all units. This way, you don’t have to choose between high-end and multi-room, or flexibility and audio quality. All units are equally flexible, and will work equally well together.

The ECI 6DX can be operated by the intuitive iOS & Android application, the universal webinterface, or with the straightforward IR remote control. All of our streamer systems use the same app and web-interface.

Lire la suiteShow less
Détails du produit
56791

Fiche technique

Type de produit
Amplificateur intégré
Fonctionnalités
DAC intégré
Streamer integre
Nombre de canaux
2

Références spécifiques

upc
56791
