AW180
Les capacités étonnantes de l'amplificateur de puissance monobloc de 180W ne peuvent être expliquées ; elles doivent être expérimentées.
| All measurements are made at 120V / 240V //50Hz / 60Hz | |
| Amplifier section | |
| Output Impedance (20 Hz - 20 kHz) |
< 0,008 ohm |
| RCA (single) input impedance | 220 kohm |
| XLR (balanced) input impedance | 110 kohm |
| Input sensivity for rated output | 1 V |
| Max. peak current | > 100 A |
| THD (measured at 1 kHz half power, 8 W) |
< 0,001 % |
| THD (measured at 1 kHz -1 dB, 8 W) |
< 0,001 % |
| Noise (measured with both inputs shorted) |
400 Hz - 30 kHz : 90 µV 10 Hz - 30 kHz : 100 µV |
| Rated output power | |
| 8 ohms | 250 W |
| 4 ohms | 380 W |
| 2 ohms | 625 W |
| Power consumption (no load or signal) |
115 W |
| Dimensions | |
| Width | 215 mm / 8.5 inches |
| Depth | 470 mm / 18.5 inches |
| Height | 288 mm / 11.3 inches |
| Weight | 22 kg. / 48.4 lbs. |

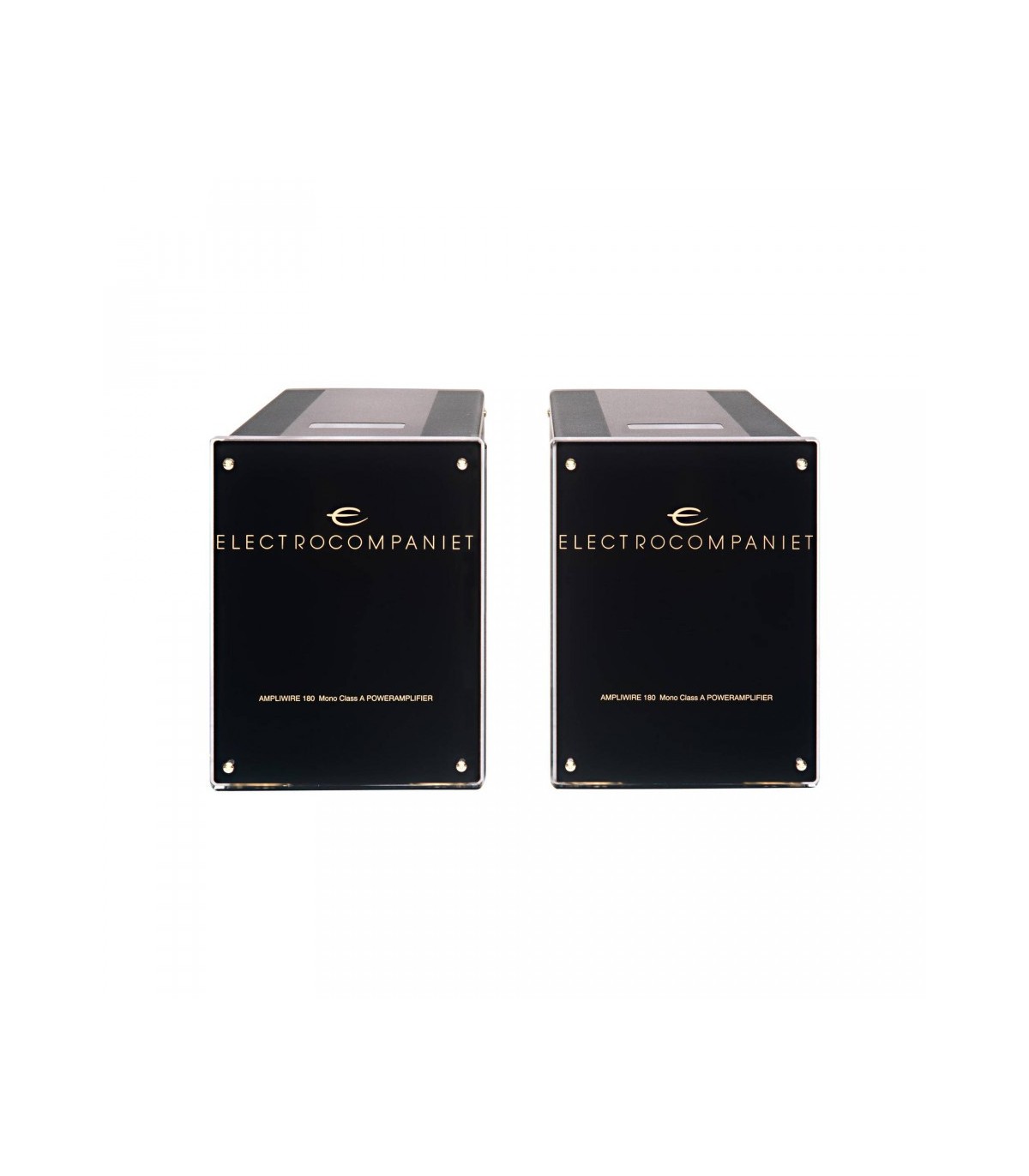

The Electrocompaniet AW180M monaural power amplifier represents the ultimate fidelity in sound reproduction.
Audiophiles, recording engineers, record producers and reviewers around the world rely on the AW180M’s faithful reproduction of the original master recording.
The stunning capabilities of the Electrocompaniet AW180M cannot be explained – they have to be experienced.
The AW180M incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply, a first class overall circuit design and state-of-the-art components. The Electrocompaniet AW180M features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power.
